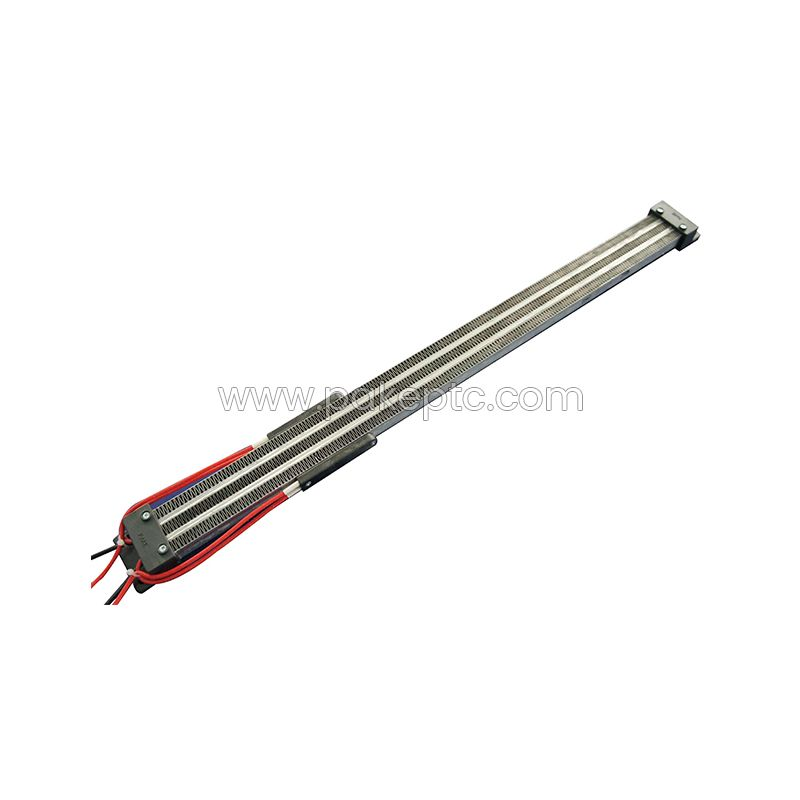

PTC Heater for Air Conditioner

Attribute

Temperature:

 Self-control

Reliability:

 High Reliability

Application:

 Home Appliance

Product Specification:

 Heater

Product Description

This PTC heater is designed for air conditioner.  As its self-regulating PTC elements, power will be adjusted automatically and not leads to overheating.

PTC Air Conditioner is less power aging, safer and more reliable. One of our client is SHARP Inc. We have done two experiments. One of the test lasts for 20,000 hours to work continuously and another experimental test is 300,000 times on/off test, which passed SHARP’s audit successfully. This two tests draw a conclusion that the product has a 20-year service life.



Overview

● After-sales Service : Video technical support, Online support

● Application: air conditioner

● Advantages: safer; less power aging

● MOQ: 100 sets

● Port：Shanghai



Product Features

● Self-regulation PTC element

● Thermostat will cut off the power if there is no air flow.

● Electric strength can reach 2000VAC

● Less power aging

● Power range is from 0.5-10KW according to customer's request



If you want to get more information about our products,please feel free to contact us.



Figure 1 20,000 hr continuous working Test

Figure 2 On/off test for 300,000 times



Technical data

Part NO.	L(mm)	W(mm)	H(mm)	P(KW)	V(VAC)
F2358	380	54	27	1	220
F2369	460	54	27	1.75	220
F2435	580	54	27	1.5	220
F2472	660	54	27	2.75	220
F2491	780	54	27	2.25	220
F2365	860	54	27	2.5	220
F2374	600	30	29	1	220
F2376	651	52.5	27	2	220
F2377	651	52.5	27	2.5	220
F2375	740	30	29	1.5	220
F2521	785	52.5	27	3	220



Application of PTC heating



●Drying Machines

●Hot melt glue gun

●Foot warmer

●Transportation

●Healthcare

●Food and beverage

●Public spaces

●Heater Fan

●Heating Plates

●Diesel/fuel heater

●Hair Dryer



Company Advantages

1.Have independent research and development team, master core technology;

2.Products can be customized according to customer requirements;

3.Guaranteed quality, safe and reliable, automatic constant temperature;

4.Have specialized factories with rich experience.
