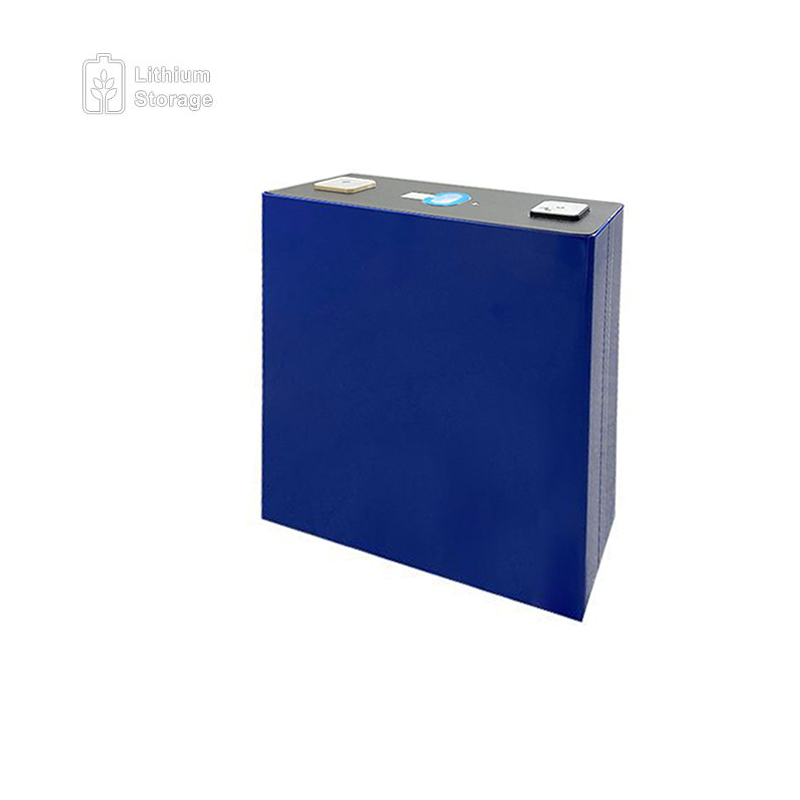

280Ah Lifepo4 Battery Supplier provides automotive industry customers with 280Ah Cell customized wholesale service. 280Ah Lifepo4 Battery is prismatic lithium iron phosphate battery, Weight 5.34±0.15kg, Cycle life ≥6000 times.
Product Description
LITHIUM STORAGE can offer different terminal solution
for cells with welding terminals, including screw terminals and Nut terminals. These solutions have passed the multiple inspection testing items such as drawing force, shear force and torque testing etc. and have been applied in the various electric vehicle and energy storage projects in the different countries.
No. | Item | Specification | Note |
1 | Rated Capacity | 280Ah | @1C |
2 | Nominal Voltage | 3.2V | |
3 | Actual Voltage Range | 2.5-3.65V | |
4 | Rated Discharge Current | ≤280A | Typical Value=140A |
5 | Peak Discharge Current | ≤560A | @60s |
6 | Rated Charge Current | ≤280A | Typical Value=140A |
7 | Peak Charge Current | ≤560A | @60s |
8 | Operating Temperature | Charge: 0℃~55℃ Discharge: -30℃~55℃ |
|
9 | Storage Temperature | ﹣30℃~60℃ | |
10 | Cell Dimensions |
Thickness: mm Length:173.93±0.3mm Height: 204.59±0.5mm |
|
11 | Cathode Material | LFP | |
12 | Weight | 5.34±0.15kg | |
13 | Energy density | 165Wh/kg 350Wh/L | |
14 | Cycle life | ≥6000 times | @0.5C/0.5C 100%DOD |
15 | Terminal | Welding/Screw terminal-Nut |
To suit the various connection demand from customers,
it is available to support cells with screw terminals or nut
terminals excepting welding terminals. The relevant torque
is recommended for avoiding excessive force which can
damage the terminal thread when the bolts are tight.
For applied bolts, busbar, and tighten torque are shown
in the table below.
Parameter table |
|||||||
Cell type | Screw Terminals | Nut Terminals | Fasten torque | Remark | Standard busbar type | Non-standard busbar type | Current Capacity |
LFP40Ah | / | M6*14 | 6N*m |
Max repeated terminal screw times ≤3 |
BS1-LFP40A | BS2-LFP40A | 1C |
LFP50Ah | / | M6*14 | 6N*m | BS1-LFP50A | BS2-LFP50A | 1C | |
LFP100Ah | / | M6*14 | 6N*m | BS1-LFP100A | BS2-LFP100A | 1C | |
LFP135Ah | / | M6*14 | 6N*m | BS1-LFP135A | BS2-LFP135A | 1C | |
LFP205Ah | M6*16 Bolt | M6*18 | 6N*m | BS1-LFP205A | BS2-LFP205A | 1C | |
LFP280Ah | M6*16 Bolt | M6*18 | 6N*m | BS1-LFP280A | BS2-LFP280A | 1C | |
LFP280Ah long cycle | M6*16 Bolt | M6*18 | 6N*m | BS1-LFP280A | BS2-LFP280A | 1C | |
LFP302Ah | M6*16 Bolt | M6*18 | 6N*m | BS1-LFP302A | BS2-LFP302A | 1C | |
NCM102Ah | / | M6*18 | 6N*m | BS1-NCM102A | BS2-NCM102A | 1C | |
NCM177Ah | / | M6*18 | 6N*m | BS1-NCM177A | BS2-NCM177A | 1C |
This product has passed the following certifications:
Cell type | Quality Management System | Products Certification | |||||||||||||
ISO-9001 | IATF16949 | ISO-14001 | ISO-45001 | GB/T 31485-2015 | GB/T 31486-2015 | GB/T 31484-2015 | IEC62619 | UL1642 | UL9540 | UL1973 | MSDS | UN38.3 | BIS | JET | |
LFP40Ah | √ | √ | √ | √ | √ | √ | √ | / | / | / | / | √ | √ | / | / |
LFP50Ah | √ | √ | √ | √ | √ | √ | √ | √ | √ | / | / | √ | √ | √ | √ |
LFP100Ah | √ | √ | √ | √ | √ | √ | √ | √ | / | / | / | √ | √ | / | / |
LFP135Ah | √ | √ | √ | √ | √ | √ | √ | / | / | / | / | √ | √ | √ | / |
LFP205Ah | √ | √ | √ | √ | √ | √ | √ | / | / | / | / | √ | √ | / | / |
LFP280Ah | √ | √ | √ | √ | √ | √ | √ | / | / | / | / | √ | √ | / | / |
LFP280Ah long cycle | √ | √ | √ | √ | √ | √ | √ | √ | / | √ | √ | √ | √ | / | / |
LFP302Ah | √ | √ | √ | √ | √ | √ | √ | / | / | / | / | √ | √ | / | / |
NCM102Ah | √ | √ | √ | √ | √ | √ | √ | / | / | / | / | √ | √ | / | / |
NCM177Ah | √ | √ | √ | √ | √ | √ | √ | / | / | / | / | √ | √ |
/ |
/ |
01 02
Carton for air transportation and Meeting the UN38.3 package
plywood case for sea transportation standard for dangerous goods
The global economy is undergoing a transition from carbon-intensive energy resources to low-carbon energy resources, switching from fossil fuels with harm to the environment to cleaner and alternative renewable energy sources. Lithium ion batteries as the most favorable electrochemical energy storage system are widely used in many fields due to high energy density, excellent self-discharging rate, high operation voltage, long cycle life, and no memory effect. The application fields include not limiting trucks, cars, buses, golf carts, AGV, material handling equipment(forklifts), as the driving force, and various energy storage systems.
Lithium Storage Co.,Ltd
Add.: No.9 East Mozhou Road, Jiangning District, 211111, Nanjing City, China
Tel. : +86 025 8773 9887
E-mail: admin@lithiumstoragebattery.com
Your professional lithium battery power solution provider.
280Ah LiFePO4 Batteries from LITHIUM STORAGE is a prismatic lithium iron phosphate battery. Three types of terminals are available to meet multiple installment demands, including welding terminals, screw terminals, and nut terminals.
LFP280 LiFePO4 batteries have a high capacity with excellent performance, and long cycle life can reach cycle life 6000times, and increased safety factor. It is to be widely applied for energy storage system (ESS) projects. They are high capacity 3.2V power lithium- ion batteries for RV/solar system/yacht/golf cart and car storage.
