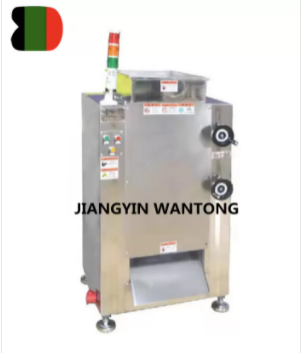

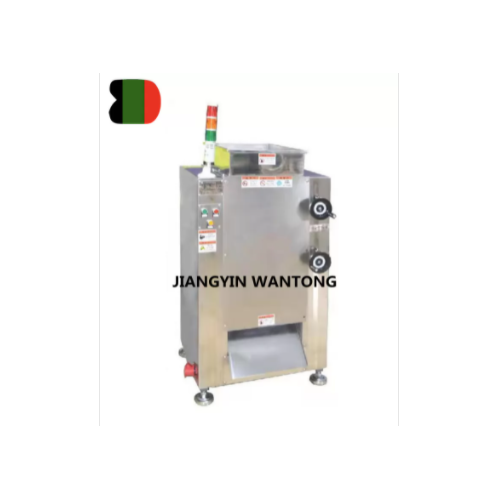

WF almond grinder grinding machine
The mill is specially designed for oily foods (such as sesame, soybean, walnut, peanut, etc.). The machine can crush all kinds of state materials because of the shearing impact principle.
Product Description
Main introduction of WF almond grinder
The mill is specially designed for oily foods (such as sesame, soybean, walnut, peanut, etc.). The machine can crush all kinds of state materials because of the shearing impact principle.
The machine is designed according to the national GMP management standard. The main material is stainless steel. The Splint blade is high wear-resistant forging castings with beautiful and generous shape. It is flexible and portable to move, low consumption, high output, low noise and easy to operate
Main principle and structure of WF almond grinder
The grinder is made of splint grinding technology, product can be quickly milled at the high speed operation of the stick. The machine is composed of hopper, splint blade, crushing motor, automatic outlet, sealed box, noise reducer, adjusting hand wheel and other parts. The material is fine crushed by high-speed rotating splint blade from feeding hopper into the grinding chamber.
Main feature of WF almond grinder
The machine adopts non-screen grinding system, which is not limited by material’s viscosity, hardness and fiber. Especially suitable for grinding sesame, soybean, walnut, peanut, almond and cereals grains(containing oil, viscosity) materials. Also make machine using life longer than other grinder. This whole machine is made of stainless steel with corrosion resistance.
Technical data
| TYPE | 300 | 500 | 500E |
| Capacity(kg) | 50-150 | 200-500 | 400-700 |
| Feed size(mm) | ＜5 | ＜5 | ＜5 |
| Final crushed size(目) | 5mm-100mesh(upon product) | ||
| Motor(kw) | 2.2 | 4 | 5.5 |
| weight(kg) | 210 | 300 | 410 |
| Overall size（mm） | 750×740×1050 | 720×600×1300 | 1200×800×1600 |
