Steel Plywood Standard Wedge Bolt for X Flat Tie

Wedge pins are used with flat tie to tighten adjoining concrete forms, securing the flat tie and concrete form in place.

Product Description

Wedge pins are used with flat tie to tighten adjoining concrete forms, securing the flat tie and concrete form in place. The full set of the Symons Formwork Accessories including the Wedge Bolt, Long Bolt, Short Bolt, X-Flat Tie, One Piece Waler Clamp, Z Tie Holders & Waler Tie, J-Strongback Hooks and Strongback Ties, Scaffold Brackets and Turnbuckles.





Steel Plywood Standard Wedge Bolt For X Flat Tie



The avaliable size from 4" to 48" wall thickness as your request.


Product

 Name

Wall

Thickness

Weight

(g)

Weight

(LBS)

Ultimate

Load

Packaging

Steel Plywood Forming Accessories X Flat Tie



X-FLAT TIE 4" 103.98 0.2292 6000LBS

100pcs/carton;

10,000pcs/pallet

5" 111.9 0.2467
6" 119.81 0.2641
8" 141.21 0.3113
9“ 151.91 0.3349
10” 162.61 0.3585
12“ 184.01 0.4057
14” 205.41 0.4528

50pcs/bundle;

2,500pcs/pallet

15“ 216.11 0.4764
16” 226.81 0.5000
18“ 248.21 0.5472

50pcs/bundle;

2,500pcs/pallet

20” 269.61 0.5944
22“ 291.01 0.6416
24” 312.42 0.6888
... ... ... ...
48“ 569.22 1.2549

25pcs/bundle;

2,500pcs/pallet

Accessories

Picture Product Name Material Weight Surface Treatment  Packaging

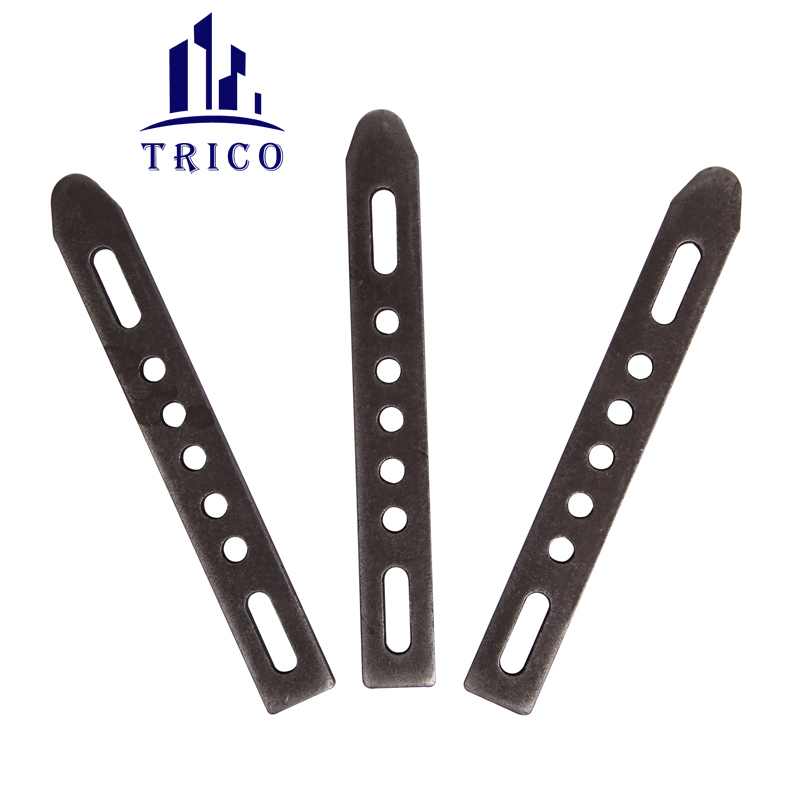

Steel Plywood Forming Accessories X Flat Tie



Standard

Wedge Bolt



45#

Steel



    52g





 heat

treatment



500pcs/pail then put on pallet

Steel Plywood Forming Accessories X Flat Tie



Long

Wedge Bolt



71g



250pcs/pail then put on pallet



Related Produts:

Wedge bolts connect panels and ties together, eliminating the need for special tools or equipment in the set up process. Two identical wedge bolts work as a single lock-bolt set, connecting and clamping together. However, additional bolts may be needed for walker attachments, scaffold brackets, etc.

X Flat Ties are used with Wedge Bolts to secure and space modular forms.  X Flat ties are available in 6″ up to 84″ in 1/2″ increments. Standard breakback is 1/4″.

One Piece Waler Clamps attach through the wedge bolt slot of modular type forms to provide wedge action aligning with single or double lumber.

Z Tie Holders are used in conjunction with Waler Ties to secure double 2x lumber wales to modular type forms.  The Waler Tie is available in two sizes to accommodate 2 x 4 and 2 x 6 lumber.

Turnbuckle Form Aligner Lumber forms (also refers to as kickers) which brace and support the fully assembled wall from the fluid pressure of the concrete.
