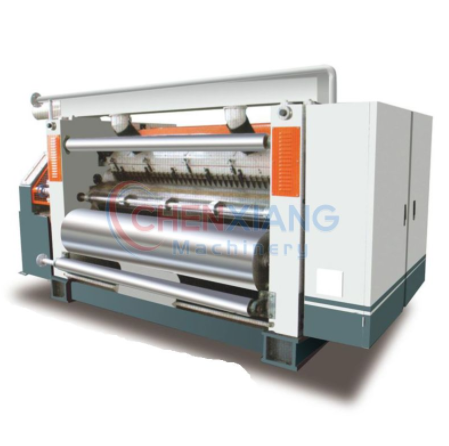

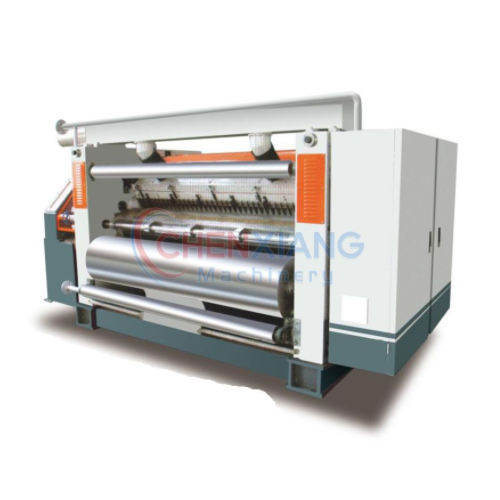

Welcome to Choose Our Single Facer Corrugation Machine!

As a leading Single Facer Corrugation Machine manufacturer in China, Dongguang Chenxiang Machinery Co., Ltd. offers high-quality single facer corrugation machines for sale that are designed to meet the needs of the packaging industry. Our Single Facer Corrugation Machines are an essential part of a single facer corrugated line, which is used to produce corrugated cardboard sheets for making paper boxes.



Our Single Facer Corrugation Machine is a fully automatic machine that uses advanced technology to ensure efficient and reliable operation. The machine is equipped with a preheating system that preheats the paper before it enters the corrugation process. The corrugation process is achieved using a series of heated rolls, which are engraved with a pattern that forms the corrugated shape of the cardboard. The pressure and temperature of the rolls are adjustable to ensure proper corrugation.



Our Single Facer Corrugation Machine is designed to work with a range of paper types and thicknesses, and it can produce corrugated cardboard sheets of various widths and lengths. The machine is also equipped with an adhesive application system that applies adhesive to the tips of the corrugated flutes. The bonding of the liner paper and corrugated sheet is achieved using pressure rolls, which are adjustable to ensure a proper bond between the two layers.



As a reliable single facer corrugation machine manufacturer, we use high-quality materials and advanced manufacturing processes to ensure the durability and reliability of our machines. We have a strict quality control system that ensures that each machine meets the highest standards of quality and performance.



Our Single Facer Corrugation Machine is easy to operate and maintain, making it an ideal choice for manufacturers of all sizes. We offer comprehensive after-sales service to ensure that our customers get the support they need to keep their machines running smoothly.



In conclusion, if you are looking for a reliable single facer corrugation machine manufacturer, Chenxiang is your best choice. Contact us today to learn more about our high-quality single facer corrugation machines for sale.



Structural Features of Single Facer Paper Corrugation Machine

1.The paper guiding adopts wind adsorption, keeping the stability of flutes under the condition of high speed.

2.The corrugated paper is adsorbed to the middle corrugated roller to form a negative pressure zone of 180°and then to finish the rolling of corrugation through the vacuum box by fan.

3.The width of suction slot of lower corrugated roller is not more than 2mm, able to reduce the stripe mark on single side corrugated cardboard.

4.The transmission part adopts universal joint transmission and separates the vibration source, which makes the maintainability higher, the transmission more stable and the operation more reliable.

5.The reducer casing adopts oil bath lubrication and closed gear transmission, reducing the vibration of machine.

6.This machine adopts auto-cycle glue supply and pneumatic control glue supply and return, making it be characterized by buffering effect.

7.The glue roller surface is treated with special mesh nicking and chrome-plating. Get a quote about the single facer corrugation machine.



Technical Parameters of Single Facer Corrugation Machine

1. Design Speed: 150m/min

2. Working speed: 0-120m/min

3. Heating type: Steam Heating

4. Cardan drive with gear box

5. Corrugated roller alloy steel material

6. Expiry width: 1400mm, 1600mm, 1800mm, 2000mm

7. Corrugated flute roller diameter: 280mm &320mm

8. Material: 48CrMo/Tungsten Carbide

9. Flute profiles: A, B, C, E, F etc.



Advantages

Our Single Facer Corrugation Machine has several advantages that make it stand out from other machines in the market. These advantages include:

1. High-quality output: Our Single Facer Corrugation Machine is designed to produce high-quality corrugated cardboard sheets that meet the highest standards of the packaging industry. The machine is equipped with advanced technology that ensures accurate and consistent corrugation, resulting in a uniform and smooth finish.



2. Efficient operation: Our Single Facer Corrugation Machine is fully automatic and is designed to operate efficiently and reliably. The machine is equipped with a preheating system that preheats the paper before it enters the corrugation process, which reduces the time and energy required for corrugation. The machine is also designed to work with a range of paper types and thicknesses, making it a versatile choice for manufacturers.



3. Easy to operate and maintain: Our Single Facer Corrugation Machine is designed to be user-friendly and easy to operate. The machine is equipped with an intuitive control system that allows operators to adjust the pressure and temperature of the corrugation rolls and the adhesive application system easily. The machine is also easy to maintain, with a simple design that allows for easy access to critical components for cleaning and maintenance.



4. Durable and reliable: Our Single Facer Corrugation Machine is made from high-quality materials and is built to last. The machine is designed to withstand the rigors of continuous use, with a sturdy frame and durable components that ensure reliable operation over the long term.



5. Excellent after-sales service: We offer comprehensive after-sales service to our customers, including training, installation, and maintenance services. Our team of experts is always available to help customers with any questions or concerns they may have about our Single Facer Corrugation Machine, ensuring that our customers get the support they need to keep their machines running smoothly.

Overall, our Single Facer Corrugation Machine offers excellent performance, reliability, and ease of use, making it an ideal choice for manufacturers of all sizes.
