Mobile Concrete Batching Plant
Mobile Concrete Batching Plant
Product Description

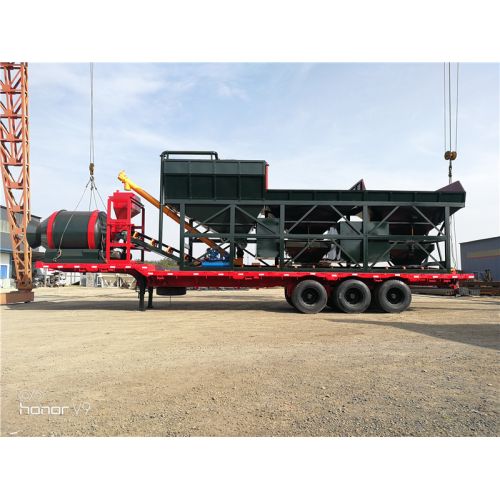

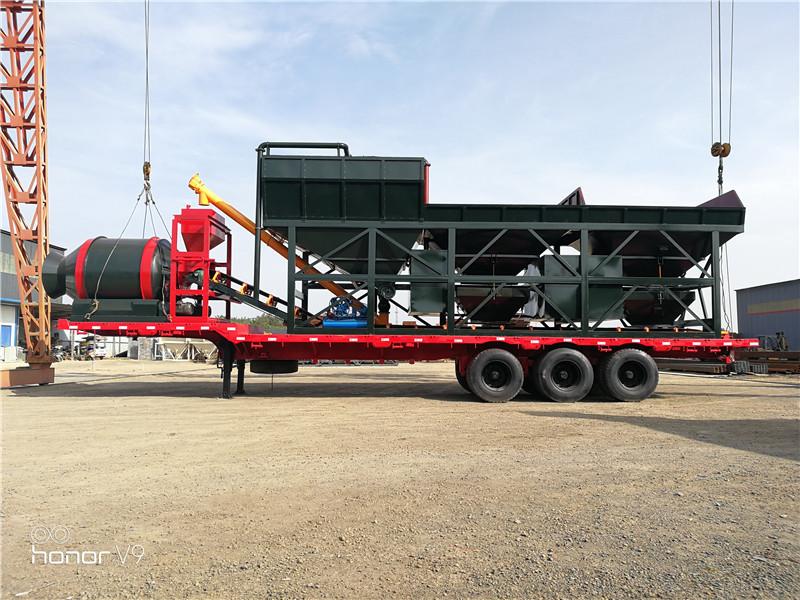

Mobile concrete batching plant is specially designed for projects that we need to change work sites from time to time. It is very easy to be disassembled and moved to another work site, the installation is also quite easy. For our new type of mobile batching plant, all parts are mobile and no reinforced concrete foundation is needed, including cement silo. So it is very easy to install on a new work site; You just need a car to tow it to the new work site, place the machine in the right position and connect the cables, then you can use it. Usually, we can finish the installation within 3 days;
Like stationary batching plant, the mobile batching plant is also equipped with water, cement and additive scales which can ensure the quality of the concrete. The capacity of mobile batching plant we have now is from 20m3/h to 100m3/h. Welcome to contact us for details and quotations.
As a manufacturer of concrete batching plant with 20-year experience, we have mobile concrete batching plant with the capacity from 20m3/h to 100 m3/h.
A mobile concrete batching plant is a specialized type of equipment used in construction projects where concrete needs to be produced on-site.
Mobility: Designed for easy transportation between construction sites, a mobile concrete batching plant is mounted on trailers or wheels, allowing it to be quickly relocated as needed.
Compact Design: Typically compact in size compared to stationary plants, making it suitable for projects with limited space or frequent site changes.
Versatility: Capable of producing various types of concrete mixes including ready-mix concrete, precast concrete, and specialty mixes, meeting specific project requirements.
Environmentally Friendly: Often designed with features that reduce dust emissions and noise levels, complying with environmental regulations and site requirements.
Cost-Effective: Offers cost savings by eliminating the need for transporting ready-mix concrete from distant plants, reducing logistics costs and project delays.
Specifications of mobile concrete plant
| Model | YHZM20 | YHZM30 | YHZM60 | YHZM100 |
| Production capacity (m3/h) | 20 | 30 | 60 | 100 |
| Concrete mixer | JZM500 | JZM750 | JZM1500 | JZM2000 |
| Aggregate feeding mode | Belt conveyor | Belt conveyor | Belt conveyor | Belt conveyor |
| Aggregate size(mm) | 80/60 | 80/60 | 80/60 | 80/60 |
| Discharging height(m) | 1.5 | 1.5 | 1.5 | 1.5 |
| Aggregate weighing accuracy (%) | ±2 | ±2 | ±2 | ±2 |
| Cement weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 |
| Water weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 |
| Additive weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 |
| Control system | Panel | Computer | Computer | Computer |
| Total power (kw) | 42 | 46 | 67 | 77.5 |
| Total weight) | 12 | 13 | 14.5 | 26 |
