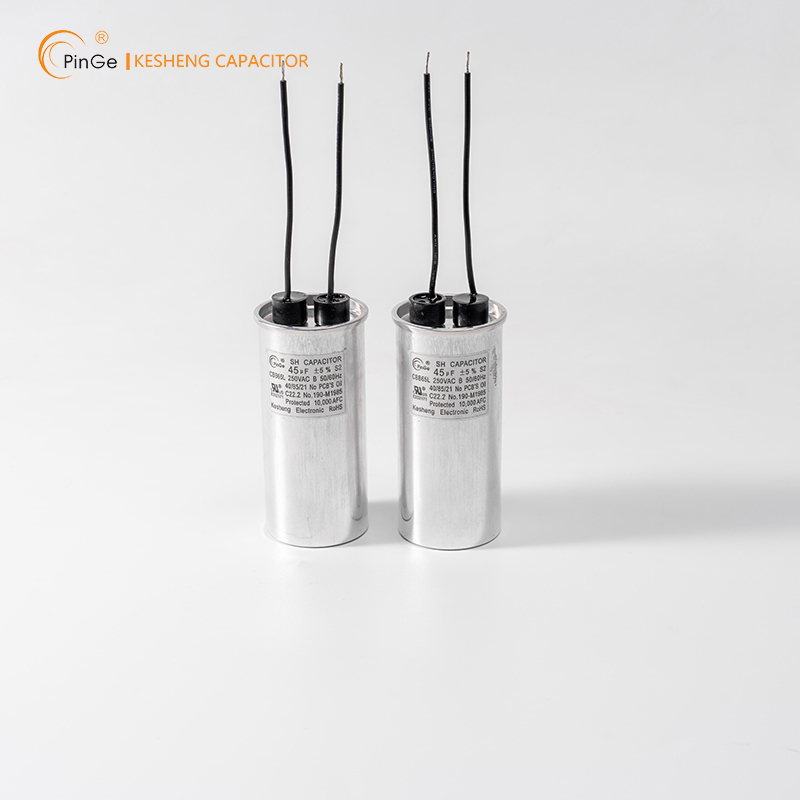

CBB65 Lead Wire Type Capacitor

CBB65 Lead Wire Type Capacitor

Product Description

CBB65 Motor Run and Start AC Capacitors
■ Non-inductance winding structure
■ Excellent self-healing performance
■ Small equivalent series resistance
■ Fast heat dissipation,Low temperature rise
■ Corrosion resistant,Stable performance,high reliability
■ Safety, fire and explosion protection

CBB65 Motor Run Capacitors Typical applications

It is mainly suitable for starting and running single-phase AC motors such as washing machine, air conditioner, water pump and shredder. And AC filter circuit for power electronic equipment and UPS power supply.



Specification

Reference standards

GB/T3667.1, UL810, EN60252-1

Rated voltage UN

250~500 VAC

Rated capacitance CR

2~100uF

Capacitance tolerance

± 5 %

Operating temperature

-25/70℃; -40/70℃; -40/85℃; -40/105℃

Storage temperature

-40 / 70℃

Dissipation factor (DF)

20 x 10-4 at 20°C, 50 Hz

Insulation resistance(IR)

≥2000MΩ .μF   (500Vdc,60s)

Voltage test between terminals (Ut-t)

2 x UN for 5 s

Voltage test between terminals with case

2200 Volt for 2 s

Expected life

CLASS B - 10000 hours
CLASS C - 3000 hours

Dielectric material

Metalized polypropylene film

Terminal

Wires

Case

Aluminum

Filling

Oil

Remarks :When the altitude is more than 2000m,the effect of convection cooling and external insulation should be considered.



Typical applications

PinGe Capacitor As a Famous Brand, It Has Been Widely Used in Household Products, Which Are Serving World's Fortune Global 500 Enterprise.
