Silica Alumina Gel

Model: YTH001

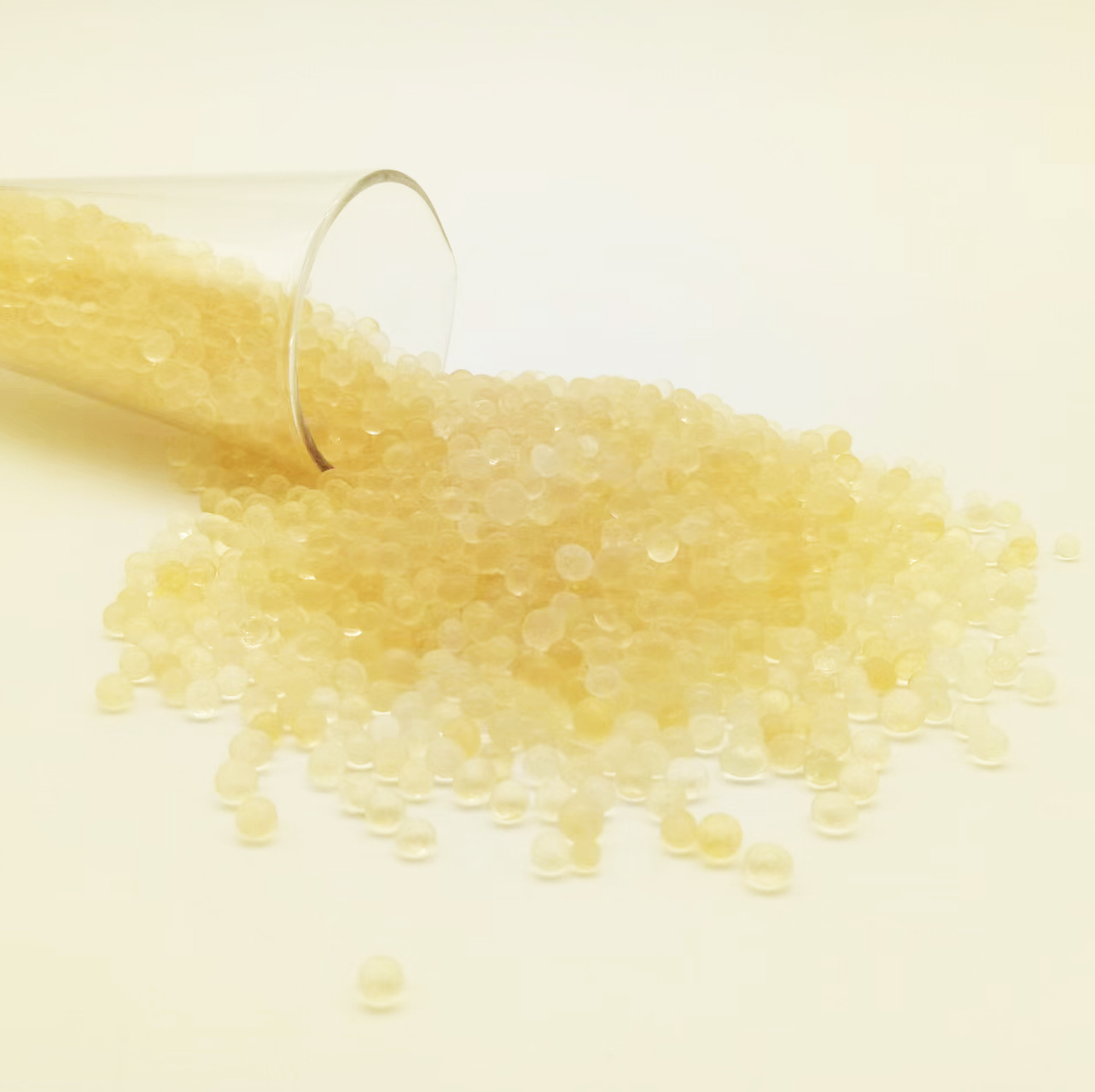

Color: Faint yellow

Chemical molecular formula: mSiO2. nAl2O3. XH2O

Chemically stable, flame-resisting. Insoluble in any solvent except strong alkali or hydroelectric acid. In comparison with fine-pored silica gel, the adsorption capacity of YTH001 silica alumina gel is quite the same when used at low relative humidity, while its adsorption capacity at high humidity is 6-10% higher than that of fine-ported silica gel. Its thermal stability is over 150℃ higher than that of fine-pored silica gel (200 ℃). Ideally suited for use as absorbent and variable- temperature absorbent.



Application of Silica Alumina Gel YTH001

Mainly used of separating light hydrocarbon from natural gas, the product can reduce dew point of hydrocarbon to produce natural gas gasoline, drying natural gas at the same time. Add 20% (wt) YTWS002 as the protective layer if water drip exits in separation system. In addition, it can be used as common dryer, catalyst and its carrier, variable –pressure adsorption separation agent (PSA). As variable-temperature adsorption separation agent (TSA) at higher temperature, it performs especially suitable.



Specification of Silica Alumina Gel



Item	/	Specifications
SiO2	wt. %	97
Al2O3	wt. %	3
Surface area(BET)	m2/g	750
Pore Volume	cm3/g	0.45
Equilibrium Capacity for          Water Vapor at 25℃	10% R.H.	6.5wt.%
	80% R.H.	42 wt.%
Packed Bulk Density	kg/l	0.75-0.85
Crushing strength	N/pcs	200
Attrition Rate	wt. %	0.05
Liquid Water Resistant		No











Silica Alumina Gel YTWS002

Silica Alumina Gel YTWS002, is white spherical particle, and is a waterproof porous silica gel adsorbent. In the case of water content is relatively high, it can effectively protect other adsorbents and catalysts. YAMTOP Silica Alumina Gel YTWS002, has the advantages of not easily broken, wear-resistant, strong adsorption, long service life and good cost performance, can reduce the production cost in practical application.



Application of Silica Alumina Gel YTWS002

a) Has good protective effect on other adsorbents, such as: Molecular Sieve, Activated Alumina, Activated Carbon and other catalyst carriers.

b) Be mainly used in the dry storage of precision instruments and other articles.

c) As air desiccant for heat compressor and fan.

d) Be used for the drying of the air separation equipment.

e) Dehydration and refinement of high purity gas.



Specification of Silica Alumina Gel YTWS002



Color		White
Shape		Sphere
SiO2 Content (%)		≈90
Al2O3 Content (%)		≈10
Specific surface area (m2/g)		650-750
Equilibrium Capacity for Water Vapor at 25℃	RH=50%	≥25
	RH=90%	≥38
Moisture content (%)		≤3.0
Bulk density (kg/L)		0.72 – 0.78
Pore volume(ml/g)		≥0.4
Compression strength (N/PC)		≥60
Liquid Water Resistance		Yes





Size: 2.0-5.0mm or other sizes on request

Attention: Store in a cool & dry place.

Normal Package: 25KG/Compound bag, super sack, steel drum.

Notes:   (1) Packing and size may be customized per your specific requirements;

              (2) Crushing strength has relation with the particle size.



---



Yamtop is a professional Silica Alumina Gel manufacturer and supplier in China, providing high quality Silica Alumina Gel with competitive wholesale price directly from factory. If you're looking for Silica Alumina Gel for your projects or business, please feel free to contact us to get more details.
