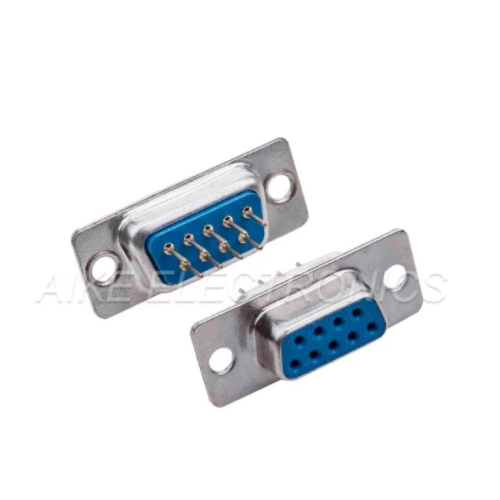

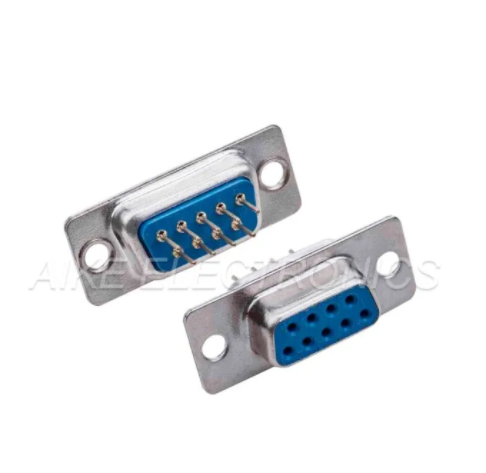

D-SUB VGA 9 PIN Female 180 Degree Stamp Contact Connector
A 9pin D-sub female connector is a type of electrical connector commonly used in various applications, particularly in the realm of computer and electronics.
Product Description
9 Pin D SUB Female Connector Description
A 9pin D-sub female connector is a type of electrical connector commonly used in various applications, particularly in the realm of computer and electronics. It is part of the D-subminiature (D-sub) connector family, which includes various sizes and pin configurations. D-sub 9 Pins connector has 9 pins, which are the metal contacts that make electrical connections when plugged into a compatible male connector. Female Connector means that the connector has receptacles or sockets to accept male pins from another connector. Male and female connectors are used together.
Our range of D-Sub connectors includes right angle and vertical D-Sub pin and socket connectors. Our portfolio of D-Sub miniature connectors are designed for a variety of applications and come with specialized accessories to provide any customer with an economical D-Sub connector solution for any complex application.
9 Pin D SUB Connector Uses
9pin D-sub female connectors are used for various purposes, such as serial communications (RS-232), VGA video connections, and other data transfer applications. The specific pinout and usage of the connector can vary depending on the application and the standard it adheres to. A 9PIN female vertical type connector, like other D-sub connectors, finds applications in various industries and devices for data and signal connectivity.
| Type | DB 9PIN, Female parts,180 degree stamp Contact, 2 rows, without screws. |
| Contact No. | 9PIN |
| Materials | For housing can be PBT,LCP and so on For shell normally can be Steel. |
| Colour | White or Black or Blue or Customized Color |
| Plating | For Shell, Ni and Tin Plating For Contact,Au,Ni,and Tin Plating |
| Plating Thickness | For Shell, 50U',100U' or Higher For Contact, 1U',3U'5U'15U',30U' or Higher Both are depands on custoer request |
| Application | Display Card,Monitor and Industrial etc. |
| Package | Normally Tray Package Or Customized Package |
| Delivery Time | Usually 25-35 days after receiving the 30% deposit |
| Payment terms | TT, L/C, DP or Negotiable |
| Note | This part is only one sample for this series products, we can change the Construction and materials to make lots of similar parts. We are so able to produce other standard as per the clients' requirements. Just let us know. |
About D-sub connector
D-sub connector is a VGA(Video Graphics Adapter) interface. It is named d-sub because of its unique shape of d-type shield. This is an analog signal interface, structural standard, according to the requirements of the number of interfaces connector. D-Sub refers to the D-subminiature connector standard, which includes a variety of connector sizes and pin configurations. The "D" shape of the connector shell is distinctive, with two parallel rows of pins in a trapezoidal arrangement.
Our advantages
We are a manufacturer of precision 9 Pin D-Sub standard connectors. We have our own R&D center integrating mold design, product development, production assembly, and sales services.
1. The product range currently provided is wide and diversified, providing different types of connectors and cables.
2. Customized products and solutions, according to different user needs, customize connectors with different materials and pins, provide users with personalized services, and provide all the connectors you need for your project.
3. For stock products, users who need standard products can be shipped quickly because we have a certain amount of stock products to deliver connectors and connecting wires to customers as quickly as possible.
4. Complying with industry standard certification provides customers with quality assurance.
