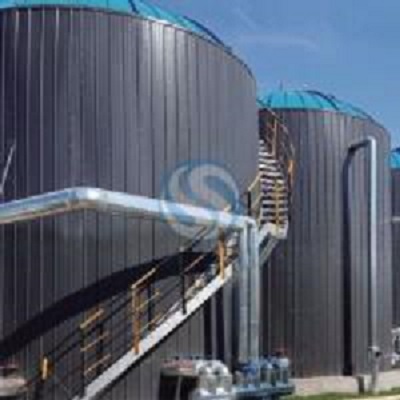

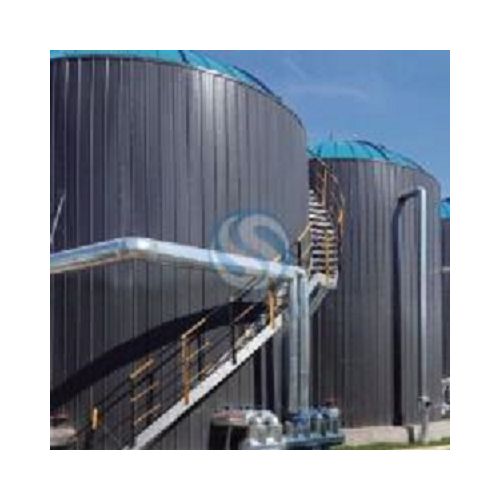

GFS Tanks with UASB Reactor

The upflow anaerobic sludge blanket reactor (UASB) is a single tank process. Wastewater enters the reactor from the bottom, and flows upward. A suspended sludge blanket filters and treats the wastewater as the wastewater flows through it.

Product Description

PRODUCT DESCRIPTION

UASB Reactor Tanks

The upflow anaerobic sludge blanket reactor (UASB) is a single tank process. Wastewater enters the reactor from the bottom, and flows upward. A suspended sludge blanket filters and treats the wastewater as the wastewater flows through it.



Technical Features of UASB Reactor Tanks

high volume load, simple equipment, easy operation, low cost, easy management, not easy to block.

Application of UASB Reactor Tanks

Scope of application: papermaking, food processing, wine brewing, landfill leachate, pharmaceutical and chemical wastewater treatment. Key design: water distribution design, three-phase separator design.



Specification of GFS Tanks

Coating color

dark blue, dark green , white, and customized

Standard steel plate size

effective size 2400mm x 1200mm

Steel plates thickness

3mm - 12mm, depends on the diameter & height

Coating thickness

0.25mm - 0.4mm, two coating internal and external

Acid and alkalinity proof

standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14

Adhesion

3,450N/cm

Elastic

same as steel sheet, around 500KN/mm

Hardness

6.0 Mohs

Service life

>30 years

Spark test

>1500 V

Permeability

gas and liquid impermeable

Features

smooth, glossy, inert, anti-adhesion, and easy to clean/ maintain

Corrosion resistance

Excellent corrosion resistance for waste water salt water, sea water, high sulfur crude oil, salt fox,

organic and inorganic compounds
