SPACE CAPSULE HOUSE H9

SPACE CAPSULE HOUSE H9

Product Description

Ready to ship globally;

Prefabricated, 2-hour quick installed on site; No restrictions, eco-friendly;

Highway transport on flatbed truck;

Integral installed by crane truck.



Jiaqiang Space Capsule House H9 Default Design
1 External Dimensions Length 12000mm (39'4'') Space Capsule House H9
2 Width 3300mm (10'10'')
3 Height 3350mm (11')
4 Weight 10,000kg
5 Footprint 40m2
6 Indoor Dimensions Length 11800mm (38'9'')
7 Width 3100mm (10'2'')
8 Height 3200mm (10'6'')
9 Main Frame Steel Frame Hot dip galvanized steel structure frame
10 Exterior Panel 2.5mm fluorocarbon paint aviation aluminum plate
11 Insulation Layer 20mm rubber insulation layer
12 Heat Insulation Layer 100mm polyurethane
13 Exterior Glass Wall 8+12A+8 low-E insulation tempered glass
14 Door intelligent security door
15 Internal
Configuration
Ceiling high-end bamboo carbon fiber board
16 Wall high-end bamboo carbon fiber board
17 Floor advanced composite solid wood
18 Indoor Light downlight + magnetic absorption track embedded concealed line light + low-voltage light strip
19 Outdoor Light waterproof light strip
20 Curtain intelligent electric curtain
21 Intelligent System voice control lights + curtain + skylight + air conditioning + projection+ dedicated outdoor air system + background music
22 Other fire alarm, socket panel, flip down bed, hidden dining table, standard modern kitchen
23 Outer
Equipment
Air Fan full heat exchange fresh air fan
24 Steel Structure Frame hot-dip galvanized steel structure frame
25 Outer Decorative 2.5mm fluorocarbon paint aviation aluminum plate
26 Insulation Layer 100mm polyurethane+20mm rubber insulation layer on the back of the top aluminum plate
27 Water Supply hot water circulation system
28 Bathroom Toilet sound brand smart toilet
29 Other water heater + sound brand faucet + wall mounted hair dryer + smart towel rack
30 Indoor
Equipment
Air Conditioning intelligent variable frequency air duct unit air conditioning
31 Bath Heater four-in-one bath heater
32 Refrigerator sound brand refrigerator
33 Display Screen whole house intelligent central control display screen
34 Air Fan full heat exchange fresh air fan
35 Other viewing system, smoke machine stove, disinfection cabinet, 304 stainless steel sink with filter basket, front filter
36 Optional Underfloor Heating electric underfloor heating
37 Heating System intelligent water pipe heating system
38 Air Fan full heat exchange purification fresh air fan + full heat exchange purification fresh air fan (150 air volume)
39 Other projector + equipment cabinet + airline seat
40 Notes Customization appearance color is customized, other special solutions if possible.
41 Others MOQ 1 set
42 Port Tianjin Port or customer specified
43 Supply Capability 60 sets/month
44 Payment 100% payment before shipping by T/T

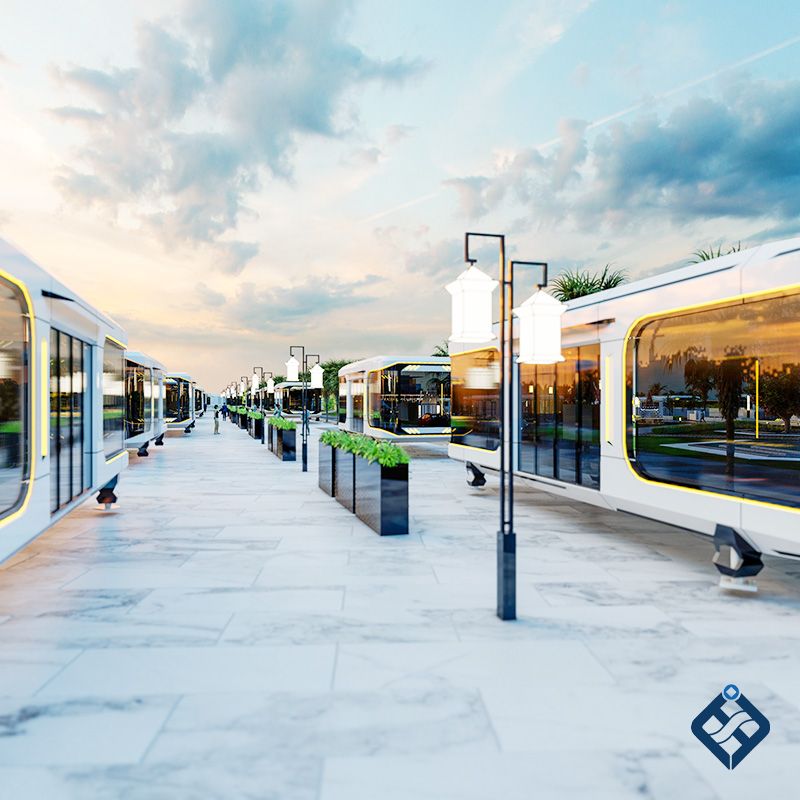

Jiaqiang invites you to elevate your hospitality offerings and embrace the future with our Spcae Capsule Hotels. As we redefine the standards of comfort and style, we envision a partnership that goes beyond accommodation—it's an experience that resonates with the expectations of today's discerning travelers.
