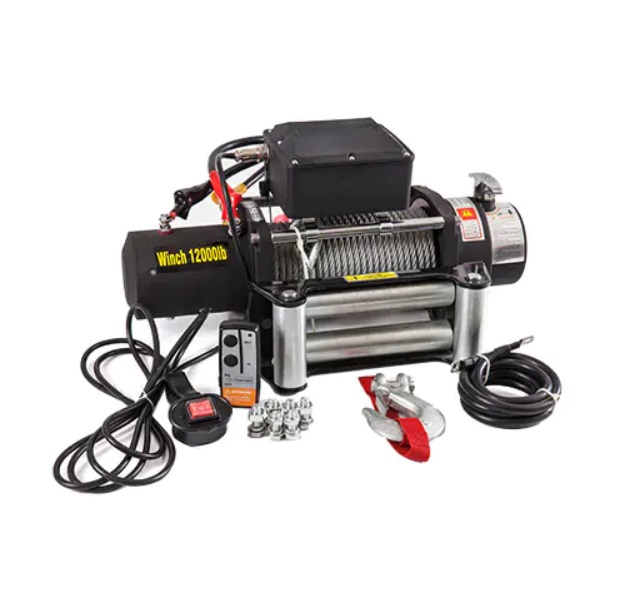

HIGH PULLING FORCE OFF ROAD WINCH-SC12.0X WIRE ROPE

HIGH PULLING FORCE OFF ROAD WINCH-SC12.0X WIRE ROPE

Product Description

12000lb 4x4 winch, 12V or 24V.
Heavy duty series wound motor, delivers high torque force.
Gears are made of 20CR steel, crafted with cold extrusion and heat treatment, to meet toughest pulling demand.
Bilateral roller brake, load-hold in two directions, offers more installation options.
Sliding ring gear clutch system with guide teeth allows engagement and disengagement smoother.
Precision machining transmission shaft lower noises when winching.
Sealed winch body, well working in bad weather.
Every Electric winch is tested on pulling capacity and function.

Specification
Rated line pull 12000lb (5443kg) single line
Rated line pull 6.6hp/4.85kw,series wound 12V
Control Remote switch, 12ft (3.7m) lead
Remote Control Included
Gear train 3 stage planetary
Gear reduction ratio 217:1
Clutch Sliding ring gear
Braking Automatic load-holding brake
Drum size Ø2.5″*L8.8″ (Ø63.5mm*L224mm)
Cable Ø9.1mm*28m
Fairlead 4-way roller fairlead
Wireless Remote control Optional
Battery recommended 650 CCA minimum for winching
Battery leads 2 gauge, 72" (1.83m)
Finishing Black, dark grey coating
Overall dimension (L*W*H) 526.3*160*179mm
Mounting bolt pattern 254*114.3mm



12000LBS LINE SPEED AND AMP DRAW (FIRST LAYER)
Line pull lb(kg) Line speed ft/min(m/min) Current(A)
0 34.4(10.82) 67
2000(907) 20.6(6.28) 131
4000(1814) 15.19(4.63) 198
6000(3310) 12(3.66) 261
8000(3629) 9.84(3.0) 320
10000(4536) 8.07(2.46) 350
12000(5443) 7.15(2.18) 390



12000LBS LINE PULL AND CABLE CAPACITY
Layer of cable 1 2 3 4
Rated line Lbs 12000 9210 8030 6894
pull per layer Kgs 5443 4178 3642 3123
Cumulative Ft 21.3 40 72 92
Cable capacity M 6.5 12 22 28

Weight and Package
Net Weight 35KG
Gross Weight 36KG
Package Foam carton 60x34x25cm
