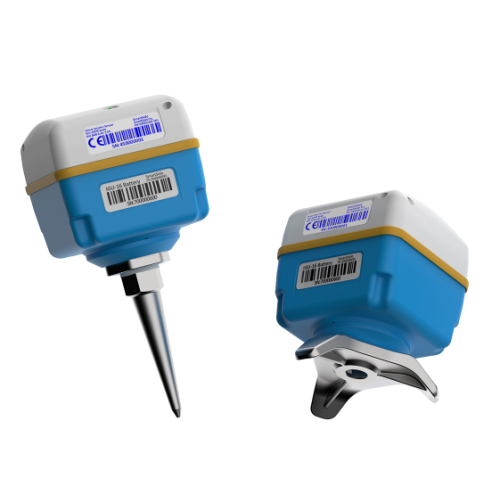

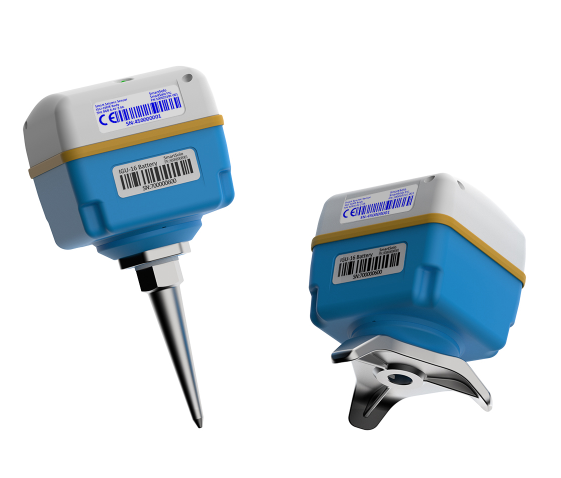

High Resolution Smart Seismic Sensor

The High Resolution Smart Seismic Sensor also referred to as the Smart Solo Geophone, is a state-of-the-art solution designed to revolutionize seismic monitoring. Engineered with the latest technological advancements, this sensor offers unparalleled precision and reliability for professionals in the field of geophysics and seismology.

Product Description

Tags:High Resolution Smart Seismic Sensor, Smart Solo Geophone, Smartsolo Inc, Land Case Geophones, High-sensitivity Sensor, Seismic Data Logger



The High Resolution Smart Seismic Sensor also referred to as the Smart Solo Geophone, is a state-of-the-art solution designed to revolutionize seismic monitoring. Engineered with the latest technological advancements, this sensor offers unparalleled precision and reliability for professionals in the field of geophysics and seismology.



With its advanced capabilities, the High Resolution Smart Seismic Sensor empowers researchers, geologists, and engineers to accurately measure ground vibrations and seismic activities. By capturing high-resolution data, it provides valuable insights into the dynamics of the Earth's crust, fault movements, and seismic events.

Main Features



Lowest per Channel Cost
in the Seismic Industry



Light Weight
1.1 kg (including battery and spike)



Small Footprint
95mm X 103mm



Built-in 8 GB Non-volatile
Flash Memory
could be Expanded to 32 GB



Mobile App
Scanning & Technical Support



DT-SOLO
High-sensitivity Sensor
Techology (10Hz & 5Hz optional)



No Exposed Connector
in the Field



Optional External
Battery and Sensor



70 Days Operating Life
@ 25°C 1ms 12h ON/12h Off



Automatic Sensor Testing
and GPS Logging



Stake-less Operation
for Max Flexibility



Auto Scan Mode
for Fast Deployment

DMC, DCC, DHR
The Peripherals of SmartSolo®

Fast Data Harvesting Speed
3000 CHs @ 20 days @ 2ms in < 3.25 hrs

Highly Flexible System Configuration
Complete Software Suite

Specifications

Size and Weight

  • 103mm(L)×95mm(W)×118mm(H)(w/o spike)
  • 1.1kg(Including internal battery and spike)

Data Storage

  • 8GB
  • 32GB

Recharge Time

  • <3.25 hours

Operating Life@25°C

  • 35 days Continuous@ 2ms
  • 70 days Segmented (12hours ON/12hours SLEEP) @ 2ms

Communication

  • -

External Power supply

  • Exchange EB battery

Acquisition Performance 5Hz

  • Natural Frequency : 5Hz
  • Spurious Frequency : >170Hz
  • Distortion : <0.1%@12Hz, (0° ~ 10°) vertical tilt
  • Damping : 0.7
  • Open Circuit Intrinsic Voltage Sensitivity : 80 V/m/s (2.03 V/in/s)
  • Remark : All parameters are specified at +22°C in the vertical position for vertical geophone and horizontal position for horizontal geophone unless otherwise stated

Acquisition Performance 10Hz

  • Natural Frequency : 10Hz
  • Spurious Frequency : >240Hz
  • Distortion : <0.1%@12Hz, (0° ~ 10°) vertical tilt
  • Damping : 0.7
  • Open Circuit Intrinsic Voltage Sensitivity : 85.8 V/m/s (2.18 V/in/s)
  • Remark : All parameters are specified at +25°C in the vertical position for vertical geophone and horizontal position for horizontal geophone unless otherwise stated.

Physical Specs

  • Seismic data channel(s) : 1
  • ADC resolution : 32 bits
  • Sample intervals : 0.25, 0.5, 1, 2, 4 milliseconds
  • Preamplifier gain : 0dB to 36 dB in 6 dB steps
  • Anti-alias filter : 206.5 Hz @ 2ms (82.6% of Nyquist)
    Selectable - Linear Phase or Minimum Phase
  • DC blocking filter : 1Hz to 10Hz, 1Hz increments or DC Removed
  • Operating temperature : -40°C ~ +70°C
  • Waterproof : IP67
  • Charging Temperature Range : +3°C ~ +45°C

Channel Performance

  • Maximum Input Signal : ±2.5Vpeak @ Gain 0dB
  • Dynamic Range : 125dB @ 2ms Gain 0dB
  • Equivalent Input Noise : 0.18μV @ 2ms Gain 18dB
  • Total Harmonic Distortion : <0.0002% @ Gain 0dB
  • Common Mode Rejection : ≥100dB
  • Gain Accuracy : <0.5%
  • GPS Time Standard : 1ppm
  • Timing Accuracy : ±10μs, GPS Disciplined
  • System Dynamic Range : 145dB
  • Frequency Response : 0 ~ 1652Hz
  • Remark : All parameters are specified at 2ms sample interval, 31.25 Hz, 25°C, unless otherwise indicated

Key Features:

◆High Resolution Data: The sensor's cutting-edge technology enables it to capture seismic data with exceptional precision and accuracy. Its high-resolution capabilities allow for detailed analysis, enhancing the understanding of complex geological phenomena.



◆Real-time Monitoring: Stay up-to-date with the latest seismic events as the Smart Solo Geophone provides real-time monitoring. Instantaneous data transmission enables timely response and quick decision-making, crucial for effective risk assessment and hazard mitigation.



◆Easy Installation and Setup: The High Resolution Smart Seismic Sensor offers a user-friendly experience with effortless installation and setup. It can be quickly deployed in various environments, including remote locations, ensuring flexibility and convenience.



◆Robust Durability: Built to withstand harsh environmental conditions, this sensor is engineered with rugged materials. Its robust design ensures long-lasting performance, making it suitable for both temporary deployments and permanent installations.



◆Compatibility and Integration: The Smart Solo Geophone seamlessly integrates with existing seismic monitoring systems, enabling easy compatibility and expanding the capabilities of your infrastructure. It supports various data formats and interfaces for efficient data exchange and analysis.



Applications:

It is used in a variety of applications such as energy (oil and gas), mineral exploration, geophysical research engineering, earthquake monitoring, and geophysical scientific research.



Experience the future of seismic monitoring with the High Resolution Smart Seismic Sensor, also known as the Smart Solo Geophone. This cutting-edge sensor offers high-resolution data, real-time monitoring, easy installation, and robust durability. Enhance your understanding of seismic activities and make informed decisions with this advanced technology.
