Metal glaze resistor

High resistance value.small size. endure high temperature. high voltage good performance cnduring moisture and good overload capability

Product Description

Metal glaze resistor

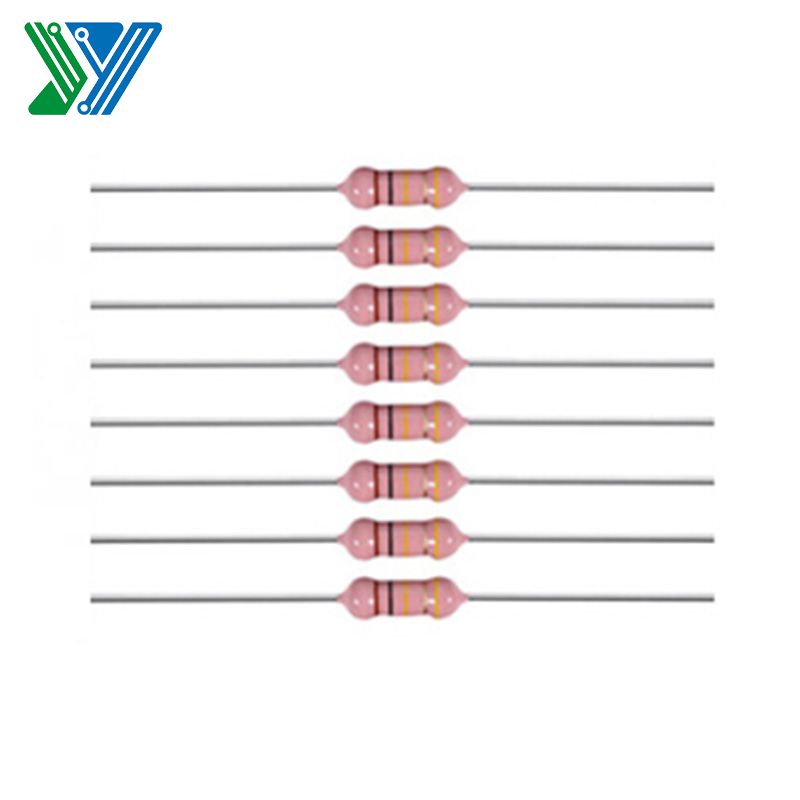

Sample Product

Metalglazeresistor



Construction



Metalglazeresistor

Features

1. High resistance value.small size. endure high temperature. high voltage good performance cnduring moisture and good overload capability

2. Operating ambient temperature:-55℃~+125℃。

3. Surface is nonflammable. The normal size coats brick red and small size coating is gray white. That add a yellow ring at the behind of the precision color rings to distinguish the resistors types.

4. Resistance tolerance: ±1%, ±2%, ±5%, ±10%



Dimensions and Voltage Performance

Power

Resistance range

Dimensions(mm)

Max. working voltage

 Max. overload voltage

Max. Pulse voltage

Max.insulation voltage

 L±1

D±0.5

d±0.05

H±1

1/4W

1K~75M

6.0

2.3

0.45

26.0

350V

700V

700V

500V

1/2WS

1K~75M

6.0

2.3

0.45

26.0

350V

700V

700V

500V

1/2W

1K~75M

9.0

3.2

0.55

26.0

500V

1000V

1000V

750V

1WS

1K~75M

9.0

3.2

0.55

26.0

500V

1000V

1000V

750V

1W

1K~75M

11.0

4.5

0.65

26.0

700V

1400V

1400V

1000V

2WS

1K~75M

11.0

4.5

0.65

26.0

700V

1400V

1400V

1000V

2W

1K~75M

15.0

5.0

0.70

26.0

750V

1500V

1500V

1100V

3WS

1K~75M

15.0

5.0

0.70

26.0

750V

1500V

1500V

1100V

3W

1K~75M

24.0

8.0

0.70

26.0

800V

1600V

1600V

1200V

5WS

1K~75M

24.0

8.0

0.70

26.0

800V

1600V

1600V

1200V



Rated Power Derating Curve

Metalglazeresistor

Performance Test

Test item

Test Condition

Performance

Temperature Coefficient

Test the resistance value at normal temperature and normal temperature added 100'C. calculate per℃ resistance value change rate.

±500ppm/℃

Short time overload

2.5 X rated voltage or Max. overload voltage (get the lower)for 5 seconds

△R<±(2%R+0.05Ω)

Pulse overload

At 4xrated voltage or max. pulse overload voltage (get the Lower) cycle 10000±200 times (second on, seconds off)

△R≤±(1%R+0.05Ω)

Resistance to soldering hent

Immerge into the 350±10℃ tin stove for 2-3seeonds

△R≤±(1%R+0.05Ω)

Solderability

Immerge into the 245±3 tin stove for 2-3seeonds

The soldering area in over95%

Temperature cycling

At-55℃ for 30 min. than at+25'C for 10-15min. then at +275Cfor min then at+25C for 10-15min, total 5cycles.

△R≤±(1%R+0.05Ω)

Load life in humidity

Overload rated voltage or Max. working voltage (get the lower)for 1000 hour l1.5 hour on and half-hour off at the 40 ±2℃ and 90-95% relative humidity

△R≤±(5%R+0.05Ω)

 Load life in heat

Overload rated voltage or Max, working voltage(get the lower) for 1000 hour (1.5hour on and halt-hour off)at the 70±2℃

△R≤±(5%R+0.05Ω)

Nonflammability

Respectively load AC voltage by 5, 10, 16times rated power for 5 minutes

 No visible flame

Xieyuan offers glass glaze resistor with high-quality materials and advanced production techniques to ensure its superior performance and durability. Whether you need glass glaze resistors for industrial, automotive, or consumer electronics applications, please click here
