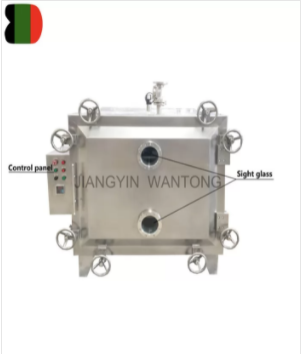

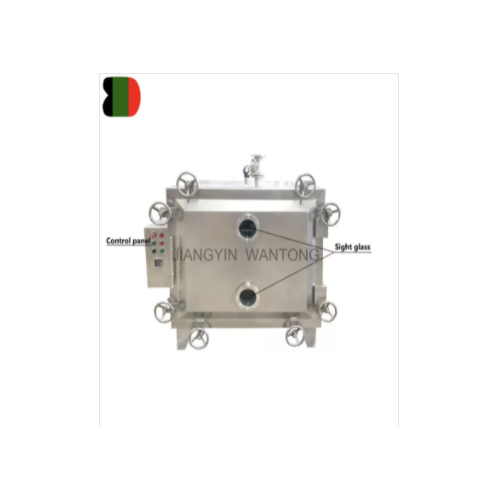

FZG66 herb herbal vacuum dryer drying machine
Suitable for heat sensitive material that easy decomposed, polymerized and metamorphous under high temperature. FZG industrial herb herbal vacuum tray dryer drying machine is widely used in pharmaceutical, chemical, food, electronics and other industries.
Product Description
1. MAIN APPLICATION of FZG industrial herb herbal vacuum tray dryer drying machine
Suitable for heat sensitive material that easy decomposed, polymerized and metamorphous under high temperature. FZG industrial herb herbal vacuum tray dryer drying machine is widely used in pharmaceutical, chemical, food, electronics and other industries.
The vacuum tray drying machine is the process that the raw material dried in the vacuum situation, and take out the wet moisture at the same time by vacuum pump.Usually for low temperature drying and solvent recovery, also can for different kind product drying, and reach GMP requirement.
2. WORK PRINCIPLE of FZG industrial herb herbal vacuum tray dryer drying machine
This industrial herb herbal vacuum tray dryer drying machine oven chamber is under vacuum condition, and low temperature heating.FZG industrial herb herbal vacuum tray dryer drying machine need matched with vacuum pump, vacuum pump is used for pumping and dehumidifying, it will big help drying speed .
Note: if the condenser is used extra, the solvent in the material can be recycled through the condenser, such as the solvent is water. But it is okay not use the condenser for save cost.
3. PRODUCT FEATURE of FZG industrial herb herbal vacuum tray dryer drying machine
1. Under vacuum, the boiling point of the solution of the material is reduced, so that the heat transfer driving force of the evaporator is increased.
2. The heat source for evaporation operation can be made of low pressure steam, waste steam or electric heating tube. (supply customized hot water or oil, etc. heating source)
3. Less heat loss on evaporator.
4. Suitable for drying heat sensitive materials that easy decomposition, metamorphic and polymerization under high temperature.
5. The disinfection can be performed before drying treatment, cause no any impurities mixed in the drying process, meet the requirements of GMP.
6. This industrial herb herbal vacuum tray dryer drying machine belongs to a static vacuum drier, so the shape of the dry material can not be damaged.
7. we will give you our factory wholesale price
The drying box is mainly composed of a box body, a baking rack, a vacuum system and an electric control system.
4. TECHNICAL PARAMETERS of FZG industrial herb herbal vacuum tray dryer drying machine
| ITEM | Specification | ||
| FZG-10 | FZG-15 | FZG-20 | |
| Interior size of chamber (mm) | 1500×1060×1220 | 1500×1400×1220 | 1500×1800×1220 |
| Exterior size of chamber (mm) | 1924×1720×1513 | 1513×1924×2060 | 1924×2500×1513 |
| Layers of baking shelf | 5 | 8 | 10 |
| Interval of baking shelf (mm) | 122 | 122 | 122 |
| Baking tray size (mm) | 460×640×45 | 460×640×45 | 460×640×45 |
| Number of baking tray(pcs) | 20 | 32 | 48 |
| Drying capacity (kg) | 50 | 80 | 120 |
| Permitted pressure inside the pipe of baking shelf (Mpa) | ≤0.784 | ||
| Operation temperature of baking support | ≤150℃ | ||
| Weight (kg) | 1400 | 2100 | 3200 |
| The above data is for reference only, if there are special requirements, the factory provides design, advisory services. | |||
