Product Description

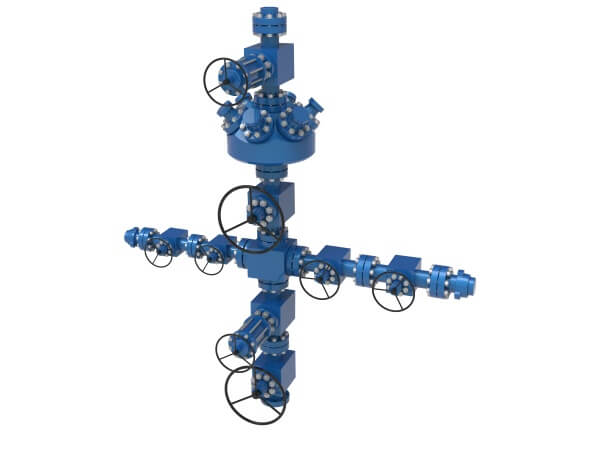

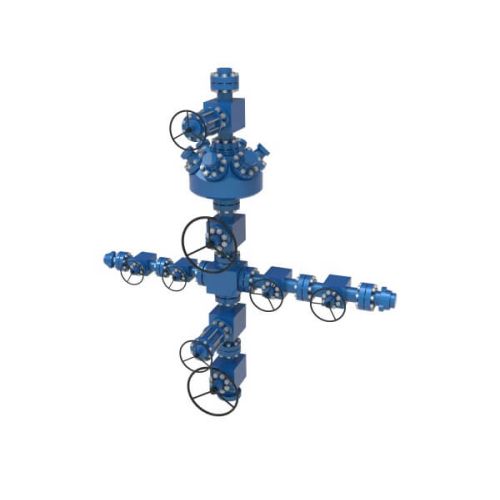

frac tree
https://www.aqemachinery.com/news-frac-tree-equipment.html
Features of Frac Tree Equipment:
It is input into fracturing head through several fracturing manifolds. It is input into fracturing gate valves to perform fracturing production. It controls medium access through fracturing gate valve switch. Now, the fracturing tree manufactured by Saigao has a maximum drift of 7-1/16" and a maximum pressure of 20000psi. The main part of our fracturing is fracturing valve which has acquired a patent for national invention and patent for utility model.
Basic Technical Parameters
Nominal Pressure, psi (MPa): up to 15000 psi (105 MPa)
Environmental Temperature: from -60°С to +40°С
Working Temperature: LU (51℉/-46℃ ~ 250℉/121℃)
Specification level: PSL1 - PSL4
Performance level: PR1 - PR2
Material Class: AA-HH
Temperature API classification: LU and other
Construction Material: Carbon steel, Low Allow Steel, Stainless Steel, Special Steel
Code & Standards: API 6A, NACE MR0175, GOST
