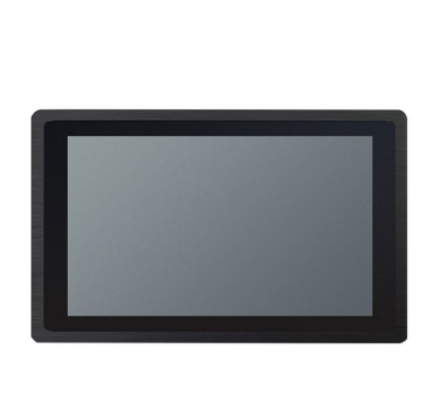

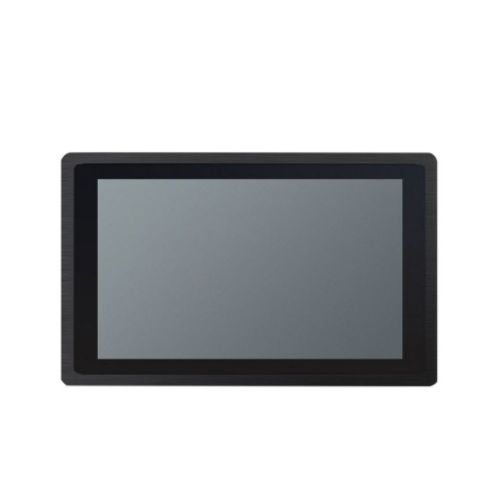

24 INCH TOUCH MONITOR WITH FAN FOR HEAT DISSIPATION

Industrial Touch Screen Panel, Touch Screen Monitor Industrial, Monitor Touch Screen Wholesale

Product Description

INTRODUCING THE PINNACLE OF CUSTOMIZATION: THE 24-INCH TOUCH MONITOR WITH INNOVATIVE FAN-ASSISTED HEAT DISSIPATION



INTRODUCTION



At SHENZHEN SHINHO ELECTRONIC TECHNOLOGY CO., LIMITED, we are not just a manufacturer; we are your strategic partner in delivering cutting-edge industrial computing solutions. As a pioneer in the industry, we proudly present our latest innovation: the 24-inch Touch Monitor with Fan-Assisted Heat Dissipation – a true marvel of engineering excellence and tailor-made functionality.




FEATURES



  1. Front IP65 waterproof and dustproof .

  2. Industrial LCD panel,  wide viewing angle,  high nits, true color.

  3. Adopt multi-points PCAP touch panel , with 3MM tempered glass, high sensitive and fast-response.

  4. High performance mainboard, 7x24 continuous operation.

  5. Support wall mounting, embedded mounting, desk stand mouting etc.

  6. 1000 nits, sunlight readable, 3MM ultra-thin front bezel, ideal for embedded in outdoor kiosk.

  7. Built-in fan for heat dissipation.



SPECIFICATION



Model: SL24
LCD panel
Panel size 24"
Resolution 1920*1080
Aspect ratio 16:9
Support Color 16.7M colors
Brightness (cd/m²) 1000nits, sunlight readable
Contrast ratio 1000:1
View angle 80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type Project Capacitive Touch (10 points )
Surface Hardness 3H
Luminousness 90%
Touch Interface USB   (RS232 optional)
Touch response time 2ms
Working Life  >50 million times
Touch options (5 wires restive touch,  IR touch optional)
Signal Ports
VGA 1×VGA
HDMI 1×HDMI
Audio in/out Optional
OSD
OSD control Brightness, contrast ratio, auto adjustment, H/V position,  language select etc.
Support languages English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.
Support OS Windows XP, Windows /7/8/10, Linux, Mac OS X, Android   ect.
Power Supply
External Power Supply AC 100 - 240V , 50-60Hz
Working voltage DC 12V
Power consumption ≤45W
Enclosure
Material Aluminum alloy
Color Black, white, Silver, color can be customized
VESA mounting 75*75mm/100×100mm
IP grade Front panel IP65 waterproof
Operating Environment
Temperature Range Operating: -20 to 70°C,  storage :-20 to 80°C
Relative humidity Operating: 10% to 80% ,  storage :5% to 90%
Packing Details
Net weight 7kg
Gross weight 10kg
Product Dimension 60.7×37.5×5.3cm
Packing size 72×49×15cm
Accessories Power adapter, USB touch cable, VGA Cable, HDMI cable, screw and etc
Other
Mounting Embedded mounting
Wall mounting brackets  (optional)
Desk stand holder (optional)
Warranty 1 year warranty
Certificates CE, FCC, RoHS



AVAILABLE SIZES



Size Resolution Aspect ratio Touch type
10.1" 1280*800 16:10 capacitive/resistance
12.1" 1024*768 4:3 capacitive/resistance
15" 1024*768 4:3 capacitive/resistance
15.6" 1920*1080 16:9 capacitive/resistance
17" 1280*1024 5:4 capacitive/resistance
19" 1280*1024 5:4 capacitive/resistance
21.5" 1920*1080 16:9 capacitive/resistance
22" 1920*1080 16:9 capacitive/resistance
24" 1920*1080 16:9 capacitive/resistance
27" 1920*1080 16:9 capacitive/resistance



Unveiling Unparalleled Performance

Designed to redefine industrial touch screen panels, our 24-inch Touch Monitor with Fan-Assisted Heat Dissipation exemplifies the perfect blend of technology and adaptability. Our expert engineers have meticulously crafted this solution to tackle one of the most critical challenges in the industrial realm – heat management. With a robust built-in fan system, we ensure that your operations remain uninterrupted even in the most demanding environments.



Precision at Your Fingertips

What sets our Touch Screen Monitor Industrial apart is its flawless touch experience. Boasting an ultra-responsive capacitive touch interface, this monitor offers a level of precision that's second to none. Whether it's navigating intricate interfaces or swiftly inputting crucial data, you can trust in the seamless interaction between man and machine.

The Customization Revolution:

At SHINHO, we understand that your requirements are as unique as your business. That's why our 24-inch Touch Monitor stands out – it's not just a product, it's a canvas for your specific needs. Our dedicated team of experienced engineers and technicians works hand-in-hand with you to create a bespoke solution that aligns perfectly with your objectives. We believe in the power of customization, and our Monitor Touch Screen Wholesale offering is a testament to that commitment.

Beyond Boundaries:

While our roots lie in industrial automation, our journey has led us to expand our horizons. Today, our portfolio spans from commercial smart terminals to intelligent devices and human-machine interfaces. This evolution is a testament to our adaptability and our relentless pursuit of innovation. With our 24-inch Touch Monitor, we continue to push the boundaries of what's possible in the realm of industrial computing.



CHOOSE THE FUTURE, TODAY



Experience the future of industrial touch screen panels with SHENZHEN SHINHO ELECTRONIC TECHNOLOGY CO., LIMITED. We invite you to join us on a journey that transcends convention and ushers in a new era of personalized solutions. Elevate your operations with our 24-inch Touch Monitor with Fan-Assisted Heat Dissipation – where technology, customization, and performance converge.

Partner with us and embrace a future where innovation knows no limits. CONTACT US now to unlock a world of possibilities for your enterprise.
