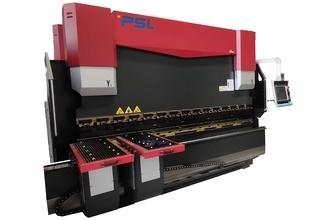

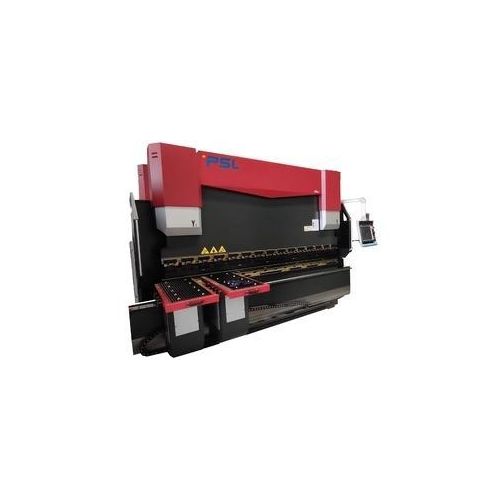

9 Axis Front Cylinder CNC Hydraulic Press Brake Machine 130 Ton 10'
Product Description
Country/Region：China
City：Wuhan
Product Attributes
- - Place of Origin China
- - Supply Type OEM Service
- - Condition New
- - Related Keywords CNC Hydraulic Press Brake
Description by Manufacturer
CNC Sheet metal Bending CNC Multi axis Press Brake with Front Follow-up Support
Application Introduction,
This CNC press brake uses the tools (standard or special tools) to bend metal sheet into workpieces of various geometric cross-section shapes.
It is a sheet metal forming machine designed for cold rolling sheet metal processing.
It is widely used in sheet metal bending, such as automobile, aircraft manufacturing, light industry, shipbuilding, container, elevator, railway vehicles and other industries.
Principe and Features of the machine:
2. Good anti-knock frame (welded-steel plate construction), whole frame is been tempering,reduce modification,using large CNC Broing & Milling machine,process in one time, ensure high-precision.
3. Using international famous brand in important components and CNC system.
4. Visual CNC operating panel, easy operation,convenient,multi-functions and practical.
5. All assemblyed parts are produced by CNC Machining Center,according to exact drawing.
6. High executive force,high standard and high professional machine assembled team.
7. Power safeguard design,with light curtain protection,open door power-off function,more safety when operating.
8. Fashion outlook,delicate,and beautiful,machines are compact design,small floor space,easy operation.
9. Providing comprehensive bending program for all press brake,shearing machine user.
10. Replaceable crwoning worktable and the Top tool & V Die, forging and precision grinding, bolts fixing.
12. Rational layout of the oil pipeline design, to prevent the oil temperature rise quickly.
DETAILED INTRODUCTION,
1,Structure of Press Brake:
1) Complete steel-welded structure; left and right houses, working table and cylinder base are welded into a whole frame.
2) After welding, the internal stress is eliminated by tempering, so the whole steel is strong and the stability is good.
2) ANSYS finite element analysis software to ensure the reliability of the machine and the precision.
2, Hydraulic system:
1) Integrated control system imported from Rexroth Germany;
2) Decrease the installation of pipelines;
3) Ensure the working stability and better appearance.
3, Main oil cylinders:
1) Closed loop control mode:Germany electro-hydraulic servo valve and imported grating ruler;
2) High-frequency hydraulic control technology, faster, more efficient and accurate.
3) Totally different from traditional mechanical stop bending machines;
4) High precision of the glide position and bending;
5) Accurate and stable operation
4, Back gauge:
1) High quality ball screw and linear guider to ensure the stopping precision.
2) More functional multi-axis blocking is available according to customer's requirement.
3) Standard 2 sets of fingers mounted in Linear guider installed on back gauge beam, as to complex shapes work pieces, 4 or 5 fingers back gauge system and corresponding dies are available for your choose.
5, Body two sides:
1) C shaped plates are fitted on both sides;
2) The high precision Grating ruler is on the C shaped plates;
3) Avoid the influences on bending precision arising from distortion of machine body during bending process.
6, CNC controller:
1) All actions (X,R,Z axes running) of the Back-gauge stopper by CNC system;
2) The stroke of Ram are controlled by CNC system
3) The hydraulic system flowing and pressure are controlled by CNC system
4) The adjustment of deflection compensation are controlled by CNC system
5) All operations are convenient and quick.
Basic Configuration:
| No | Name | Model/Manufacture |
| 1 | CNC System | Holland Delem DA66T Controller ESA S650 CYBELEC CT12 LZ-1000 |
| 2 | Electrics | France Schneider Electrics |
| 3 | Back-gauge | Ball screw + linear guider; 2sets of finger moving on linear guider |
| 4 | Main Motor | Siemens AC motor |
| 5 | Servo Motor | Nanjing Estun |
| 6 | Servo Driver | Nanjing Estun |
| 7 | Pedal Switch | KACON, South Korea |
| 8 | Sealing Ring | BAUSER and Busak+Shamban, Germany |
| 9 | Hydraulic System | Rexroth, Germany |
| 10 | Oil Pump | Germany ALLEAD high performance & low noise internal gear pump |
| 11 | Oil Tube Jointors | Germany EMB |
| 12 | Top tool and V-Die | One set of standard top tool and V Die |
| 13 | Back-gauge | Taiwan ball screw and linear guider |
| 14 | Oil Cylinder | China Taifeng |
| 15 | Quick Clamping | Chinese brand |
| 16 | Deflection Compensation | Mechanical Compensation/crowning table |
| 17 | Grating ruler | Italy GIVI |
| 18 | Standard Axis | 8 +1(Y1, Y2, X,R,Z1,Z2,Z3,Z4+V ) |
Introduction of Main Parts:
-- CNC controller DELEM DA66T:
-- Rexroth servo hydraulic system:
-- Germany EMB Joints
-- GIVI Grating Ruler
The CNC Press brake use fully closed-loop electro-hydraulic servo control,
Ram position signals can be feedback to CNC system by two sides Sensor Ruler,
then CNC controller DA66T adjusts the oil flowing amount by changing the opening size of synchronous valve
, hereby controlling the ram Y1, Y2 running on the same level, maintaining the parallel state of the worktable.
-- Mechanical Crowning/compensation table
- The local deflection compensation mechanism uses a mechanical interference table compensation structure. CNC controller automatic calculation control.
-- Backgauge stopper,
● X axis drived by servo motor via ball screw
● R axis drived by servo motor via ball screw or Rack and pinion
● Manual adjusting the position of fingers
● Z1,Z2 axes (finger 1 and 2) drived by servo motor via good Rack and pinion (Optional)
● Z3,Z4 axes drived by servo motors to support steel plate follow-up during bending
● all drivServo Motors
-- Quick Clamping to fix Top tool fastly and easily
--Standard Top tool and Double V-Die (Amada style) on machine
Materials: 42CrMo
Overall quenching process, high hardness and good wear resistance.
Single or Double V-die V8,V12,V16 (customized)
-- Germany BAUSER and Busak+Shamban cylinder Seals
-- Reliable electrical system
- Electrical component (Relay, Contactors) France Schneider
- Dustproof cabinet grade IP54 to guarantee the high quality electrical system
- Function of open door and power off
- High quality Estun servo motor drivers
