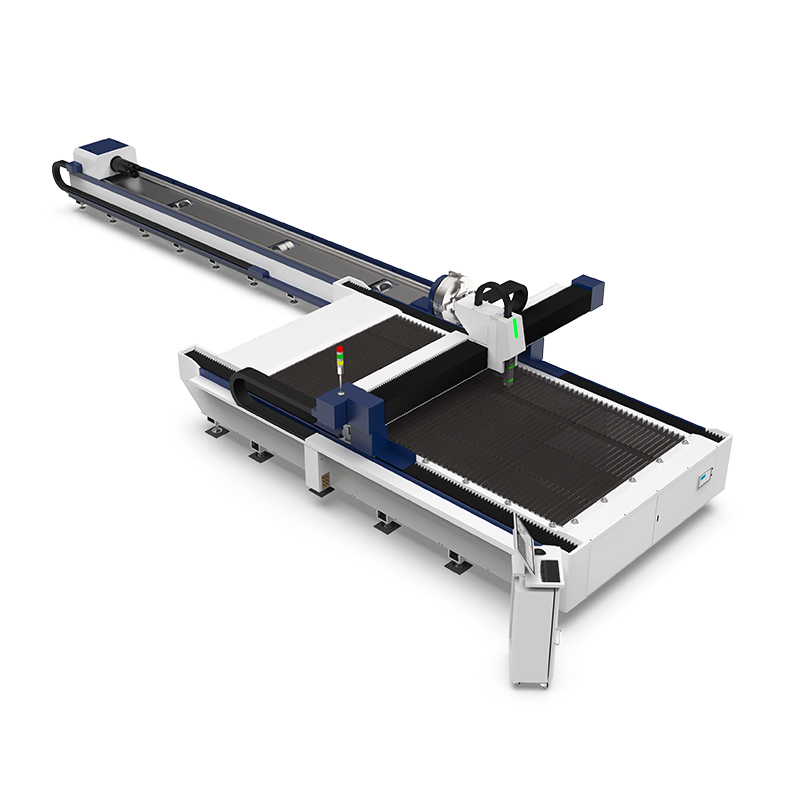

Single Platform Sheet & Tube Laser Cutting Machine

Single Platform Sheet & Tube Laser Cutting Machine

Product Description

Single Platform Sheet Metal & Tube Laser Cutting Machine

Single Platform Sheet & Tube Laser Cutting Machine is a versatile and efficient machine capable of cutting both metal sheets and tubes.

Single-platform sheet metal and tube laser cutting machines feature fast cutting speeds, combined with high precision, ensuring every cut is perfect and efficient. Whether you are working with sheet or solid tubing, this machine delivers consistent results, reducing production time and material waste.

Operating this machine is a breeze, thanks to its user-friendly interface and intuitive controls. It simplifies the most complex tasks, making it accessible for both seasoned professionals and newcomers to metalworking.

Despite its powerful capabilities, the Single Platform Sheet & Tube Laser Cutting Machine is impressively compact, saving valuable floor space in your workshop while enhancing productivity.

Single Platform Sheet & Tube Laser Cutting Machine is widely used in the metal fabrication industry for applications such as metalworkingindustrial machinery, signage, and automotive manufacturing.



Features

1. Single-platform sheet and tube laser cutting machine's frame features a heavy-duty welded bed. The plate welded bed has undergone an aging cycle or heat treatment process to completely eliminate internal stress. It has high mechanical strength, high precision, strong stability, high temperature resistance, long-term operation of the bed without deformation, and a service life of up to 25 years.

2. The beam body adopts an integrated tensile beam, and the aviation aluminum lightweight gantry design realizes lightness and at the same time meets the rigidity requirements. The high-speed running inertia is small, the speed and acceleration can be switched freely, the action response is sensitive, and the control is precise.

3. Both the main chuck and the double auxiliary chucks are self-centering chucks, which can be directly clamped without adjustment, and the workpiece can be easily positioned in the center, which greatly reduces the difficulty of loading and debugging for workers, and the cutting surface is smooth.

4. The humanized design of the whole cutting machine makes the best use of raw materials while improving the cutting efficiency, reduces production costs, and achieves "0" tailings.

Technical Parameters



 Model

3015

4020

6015

6020

8025

Processing format (length) × (width)

3000mm×1500mm

4000mm×2000mm

6000mm×1500mm

6000mm×2000mm

8000mm×2500mm

X-axis stroke

3050mm

4050mm

6050mm

6050mm

8050mm

Y-axis stroke

1550mm

2050mm

1550mm

2050mm

2550mm

Z-axis stroke

150mm

150mm

150mm

150mm

150mm

Positioning accuracy

±0.03mm

±0.03mm

±0.03mm

±0.03mm

±0.03mm

Reposition accuracy

±0.01mm

±0.01mm

±0.01mm

±0.01mm

±0.01mm

Maximum acceleration

0.6-1.2G

Laser power

1500W-8000W  (optional)

*All technical parameters are subject to the latest technical solutions.



Laser Cutting Machine Applications and industries



Material application: 0.5-30mm carbon steel plate, 0.5-20mm stainless steel plate, galvanized plate, cold-rolled plate, silicon steel plate, titanium alloy, manganese alloy, 0.5-12mm aluminum alloy plate, 0.5-8mm brass,φ15-220mm round tubes, φ15-150mm square tubes, rectangular tubes, box-shaped tubes, tank steel, square steel, oval tubes, industrial steel and some special-shaped tubes made of carbon steel, stainless steel, aluminum alloy and other materials.

Mainly used in automobiles, ships, construction machinery, agricultural machinery, textile machinery, metallurgy equipment, furniture, kitchen utensils, household appliances, metal crafts, hardware tool processing, decoration engineering, advertising signs, rice metal processing and other industries.
