10.1 Inch IK08 Multi-touch Sensor with Glass

10.1 Inch IK08 Multi-touch Sensor with Glass

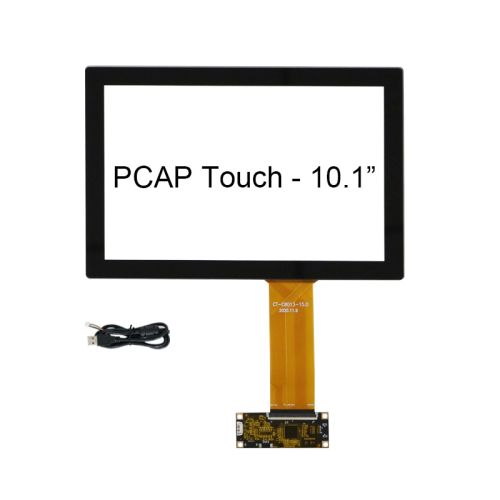

YS1018175V2 is a 10.1 inch IK08 multi-touchs sensor with glass. The multi-touch projected capacitive touchscreen sensor is optically bonded with a 5mm thick strengthened cover glass. Drop ball test can pass 1kg steel ball falls down from 50cm high, which equals to IK08 rating. This touchscreen overlay is powered by a 5V USB controller board, plug-and-play, supporting multi-touch and latex gloved hand touch. If necessary, we can 8mm thickness toughened cover glass to help your touchscreen pass IK10 test. This touchscreen overlay is good for touch screens in public area, for example, ATM in the bank, Kiosks in the supermarket, entertainment devices, industrial equipment and other touch screens which may suffer vandal. One of the features is its vandalism.

IK10 touchscreen definition and features

IK10 touchscreen refers to a screen with an IK rating of 10, where "IK" stands for "Impact Protection." The IK rating is used to assess the impact resistance of a product. In the European standard, impact resistance is classified into levels from 0 to 10, with IK10 representing the highest level of impact resistance. The higher the numerical value, the more durable the product is.

• Suitable for industrial applications: IK10 touchscreens are resistant to high temperatures, humidity, and effectively prevent dust, making them capable of seamless operation in harsh outdoor environments.

• Outstanding impact resistance: IK10 touchscreen usually has a glass thickness of 6mm and are fully laminated to enhance durability. With an IK10 rating, these touchscreens can withstand significant force without cracking.

• Industrial touchscreen solutions: CloudTop provides touch screen solutions that are both durable and highly accurate, meeting the demands of industrial environments. Compared to standard touchscreens, they offer higher durability.

Structure

GG (glass-on-glass), ITO technology PCAP touchscreen sensor glass optically bonded with strengthened front glass.

GFF(glass-on-film-on film), two layers of ITO touchscreen sensor films optically bonded with cover lens.

Type

COB (chip on board), touch IC from ILITEK, USB/RS232/IIC interface connectors are soldered on the controller board.

Touch Points

Multi-touch, finger touch, supporting thin-gloved hand touch (latex gloves for example), touch with few water on the surface.
