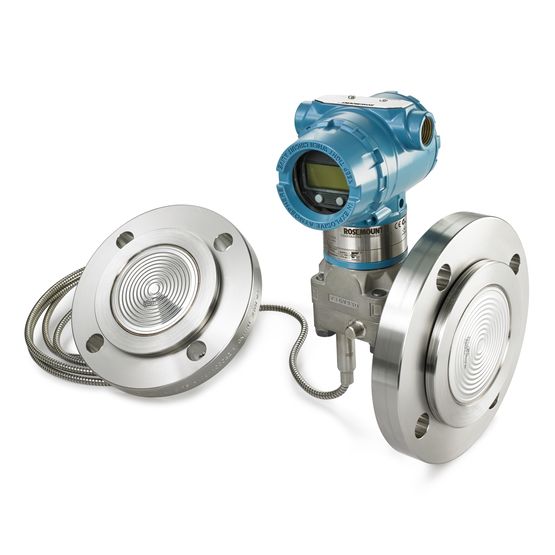

Rosemount 3051L Level Transmitter

Rosemount 3051L Level Transmitter

Product Description

Introduce of Rosemount 3051L

With field-proven reliability, the Rosemount 3051L Level Transmitter is a fully-integrated level solution. This safety-certified transmitter allows for direct mounting or a Tuned-System™ assembly for optimized performance that reduces temperature effects by 10-20% and improves response time by over 80% versus traditional installations. Power advisory diagnostics enable this device to monitor electrical loop integrity and the Local Operator Interface (LOI) offers on-site commissioning.

The Rosemount 3051L provides accurate level and specific gravity measurement for a variety of tank configurations. Based on proven capacitive cell technology, the Rosemount 3051L is designed for applications requiring the highest precision and performance, such as inventory control, material balance and headboxes.

The Rosemount 3051L offers up to 0.075% of span accuracy and a 100:1 turndown ratio. Welding fill fluid systems provide best-in-class system reliability. The Rosemount 3051L can be configured with a variety of wetted materials and fill fluids, and also offers a wide range of options and hazardous area approvals. Available output options for the Rosemount 3051L Level Transmitter include 4-20mA or 1-5VDC with HART protocol, Profibus or FOUNDATION fieldbus.



Application of Rosemount 3051L

■ Level, flow, pressure, interface, density

■ Extreme hot and cold temperatures

■ Corrosive, clogging, or viscous processes

■ Hygienic requirements

■ Special process connections
