CNC Gang Tool Lathes

Leichman CNC Gang tool Lathes, also called gang style CNC lathe, feature gang type structure with options for inclined bed structure design 30°(CK46 series) / 45°(CK36 series).

Product Description

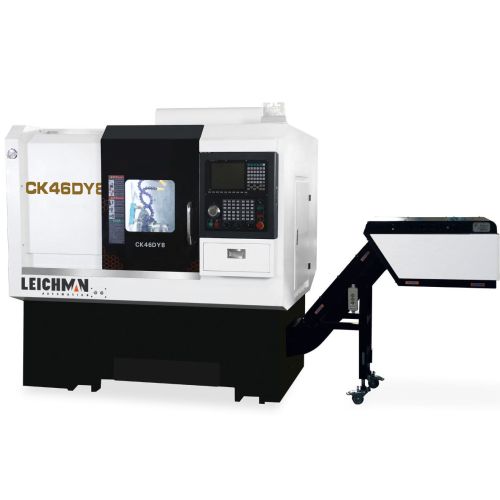

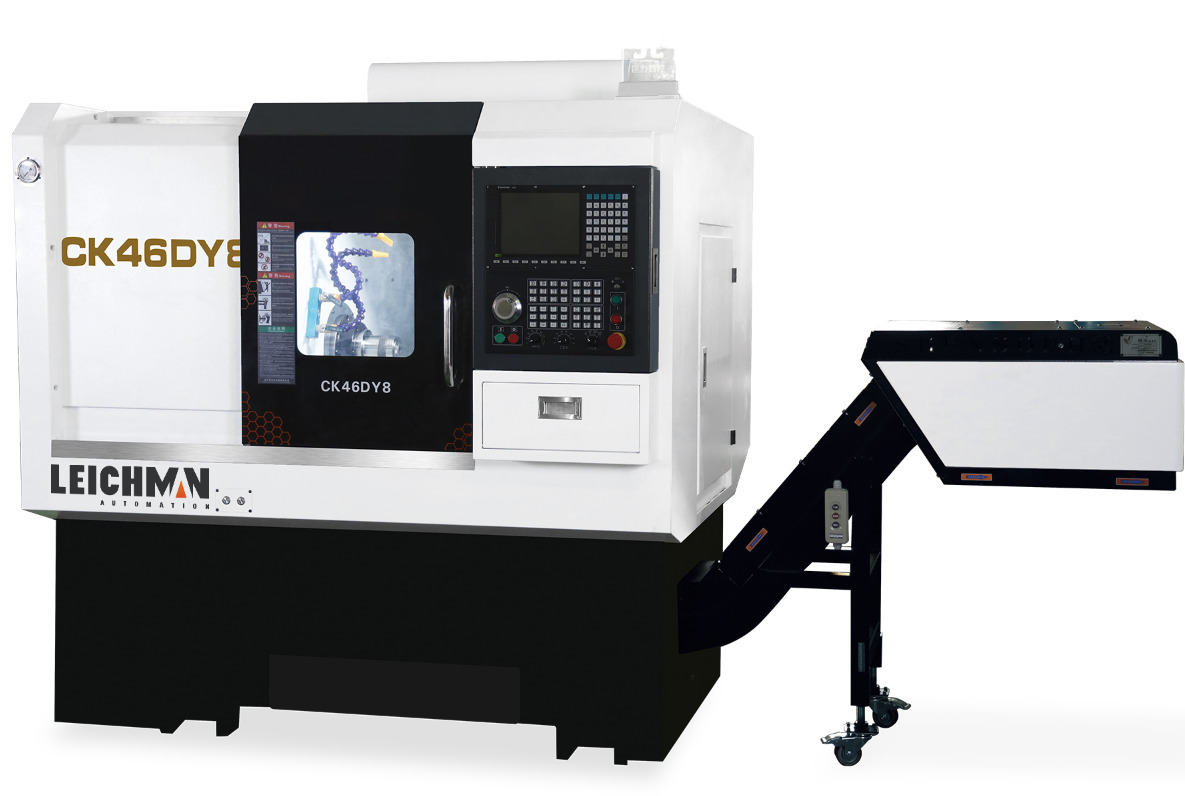

Gang Type CNC Lathe

The machine tool control system adopts Taiwan SYNTEC system, and other CNC systems are optional.

The bed is inclined at 30°(CK46) / 45°(CK36), and the large carriage and the tool rest are placed obliquely, which makes the operation and chip removal of the machine tool very convenient.

The main shaft adopts Taiwan high-precision main shaft which contains Swiss SKF precision bearings.

The transmission part of the Lathe machine tool adopts high-precision Japanese THK/Taiwan HIWIN ball screws and high-speed linear slides from Japanese THK. The X-axis and Z-axis adopts high-rigidity linear slides, and the calculation of the optimal span between the track and the track is achieved. Low resistance, high rigidity, high precision, displacement speed up to 27m/min, improve work efficiency and shorten processing time.

Product Description



Item

Unit

CK36

CK46

Capacity

Max swing over bed

mm

400

450

Max cutting diameter

mm

350

360

Max machining dia.(disk)

mm

135

135

Max machining dia.(shaft)

mm

220

220

Travel

X axis travel

mm

750

950

Z axis travel

mm

270

290

Precision

Spindle runout

mm

0.004

0.004

X/Z axis reposition precision

mm

0.002

0.002

Body structure

Slant bed degree

°

45

45

Spindle

Spindle speed

rpm

6000

6000

Chuck diameter

inch

5"

6"

Spindle nose



A2-4

A2-5

Spindle bore

mm

46

56

Max bar diameter

mm

35

45

Hight between worktable and spindle

mm

70

70

Rapid speed

X axis rapid speed

m/min

27

27

Z axis rapid speed

m/min

27

27

Motor power

Spindle

kw

4.0

5.5

X axis feed motor

kw

1.1

1.7

Y axis feed motor

kw

1.1

1.7

Tool holder form

Row of knives



8

8

Tool size



mm

20*20

20*20

Boring bar diameter



mm

φ20

φ20

Other

Dimension

mm

1800×1300×1600

2160×1600×1800

Weight

kg

1800

2600



Slant Bed Gang-Type CNC Lathe

1. The base and the bed are integrally cast iron, which has strong shock resistance and is not easy to deform.

2. The appearance design of the machine tool is beautiful, and it takes up less space.

3. The main shaft flange can be directly installed with a three-jaw self-centering hydraulic chuck or other elastic chuck.

4. Work piece clamping method: hydraulic.

5. The hydraulic supply unit of the machine tool has an enlarged fuel tank, better heat dissipation, and more stable work.

6. The X-axis and Z-axis adopts high-rigidity linear slides, and the calculation of the optimal span between the track and the track is achieved.

7. Low resistance, high rigidity, high precision, displacement speed up to 27m/min, improve work efficiency and shorten processing time.
