2.5Ton 3Ton Full Directional Electric Forklift

HULKMAN FDT series full-directional electric reach truck is suitable to carry very long materials and stack in very narrow aisles. It is a very good partner for cantilever shelves. And its lifting height can be customized from 2.5 meters to 10.5 meters.

Product Description

Multi Directional Forklift

Choose from our selection of Multi-Directional Forklifts, including the 2.5Ton 3Ton Full Directional Electric Forklift and the 1.6Ton 2Ton 4-Directional Electric Forklift. Each model is designed with precision engineering and built to deliver exceptional performance, durability, and reliability in your material handling operations. Find the perfect forklift that meets your specific needs and enhance your handling efficiency.

Product Description

Carry Very Long Materials, Stack in Very Narrow Aisles

Drive-In Multiple Directions, Forwards, Backwards, Sideways

Moving Long Length Products Such as Metal Profiles, Plates, Glass Plates, Pipes, Etc.

Narrow Aisle Stacking, Aisle Width Only Need 2300mm

Mini Right Angle Turning Aisle Width Less Than 2100mm

Turning Radius Less Than 1225mm

  • Introduction

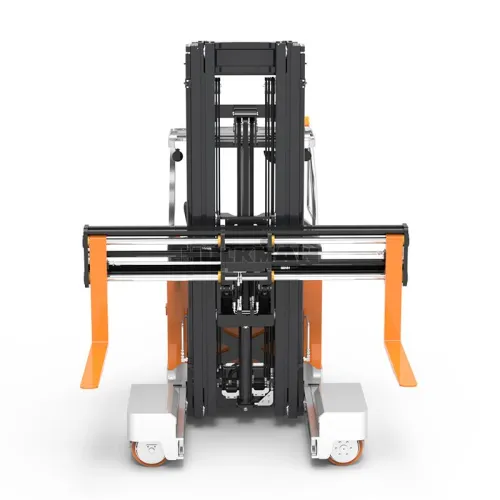

2.5Ton 3.0Ton Full Directional Electric Forklift

  1. HULKMAN FDT series full-directional electric reach truck is suitable to carry very long materials and stack in very narrow aisles. It is a very good partner for cantilever shelves. And its lifting height can be customized from 2.5 meters to 10.5 meters.
  2. What’s more, FDT series reach truck can not only completely replace normal forklift, but also drive in multiple directions. It is the best choice for 3-10m length long products moving, such as metal profiles, plates, glass plates, pipes, etc.



  • Advantages

2.5Ton 3.0Ton Full Directional Electric Forklift

  1. 48V full AC system, rapid response, accurate steering angle control, high electrical integration, low energy consumption.
  2. Spool is imported from America, precise hydraulic control, can meet AGV application requirements.
  3. Electrical modular control technology, CAN bus communication, more easy for AGV modification.
  4. The load wheel is equipped with 5 stage steering deceleration, with small control current, makes steering angle controlled more precise, effectively extends the steering motor service life.
  5. Full wheels display in real time, with high recognition, makes operation more easy, direction control more precise in narrow aisles, work more safe and reasonable.
  6. Double clutch type driving brake and parking brake, make the deceleration brake more stable and more secure.
  7. Human engineering ergonomics machine design, will give operator more comfortable work feeling and more excellent driving experience.

2.5Ton 3.0Ton Full Directional Electric Forklift2.5Ton 3.0Ton Full Directional Electric Forklift



  • Specification Parameters

Model



FDT25

FDT30

Power Supply



Electric

Electric

Driving Type



half closing sitting

half closing sitting

Load Capacity

Q(kg)

2500

3000

Load Center

C(mm)

600

500

Rear Overhang

x1(mm)

498

498

Front Overhang

x(mm)

175

175

Wheelbase

y(mm)

1700

1700

Truck Weight(Include Battery)

kg

4400

4500

Battery Weight(±5%)

kg

920

1020

Tires Front/Rear



PU

PU

Front Load Wheels(Diameter*Width)Single Wheel

mm

φ280×135

φ280×135

Rear Driving Wheel(Diameter*Width) Single Wheel

mm

φ343×140

φ343×140

Wheel Quantity Drive Wheel/Load Wheel

pcs

1X/2

1X/2

Front Wheels Distance

b3(mm)

1392

1392

Lifting Height

mm

3000-10000

3000-10000

Fork Tilting Front/Rear

α/β(°)

2/4

2/4

Lifting Height

h1(mm)

See attachment

See attachment

Overhead Guard Height

h5(mm)

2190

2190

Seat Height/Operation Platform Height

(mm)

1100/1350

1100/1350

Min Ground Clearance

h8(mm)

40

40

Balance Leg Height

h10(mm)

457

457

Overall Length(Include Fork)

l1(mm)

2470

2320

Overall Width

b1(mm)

1728

1728

Fork Size

l/e/s(mm)

1070/100/45

920/125/45

Rear Chassis Width

b2(mm)

1230

1230

Fork Width

b5(mm)

355-880

380-880

Inside With of Legs

b6(mm)

920

920

Min Turning Radius

Wa(mm)

1952

1952

Min Aisle Width(Go Straight)

(mm)

2075

2075

Minin Aisle Width When Side Moving Pallet 3000×1000×1000()

(mm)

2600

2600

Driving Speed Loaded/Unloaded

km/h

10/11

10/11

Lifting Speed Loaded/Unloaded

mm/s

250/300

250/300

Lowering Speed Loaded/Unloaded

mm/s

300/300

300/300

Gradeability Loaded/Unloaded

%(tanθ )

8/15

7/15

Brake



Electric

Electric

Park



Electric

Electric

Driving Motor(S2-60min) AC

kw

8

8

Lifting Motor,(S3-15%)

kw

12.5

15

Steering Motor AC

kw

0.7

0.7

Battery Voltage/Capacity

V/Ah

48/560

48/600

2.5Ton 3.0Ton Full Directional Electric Forklift2.5Ton 3.0Ton Full Directional Electric Forklift
