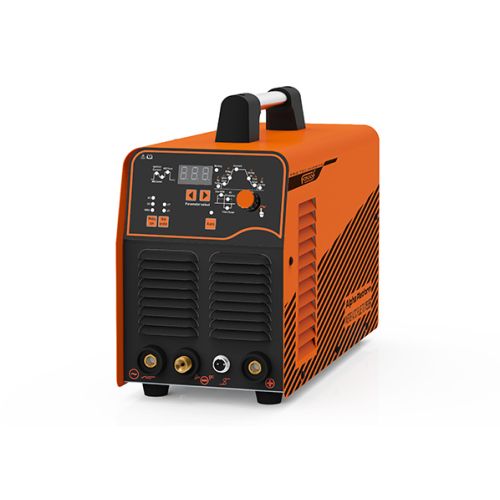

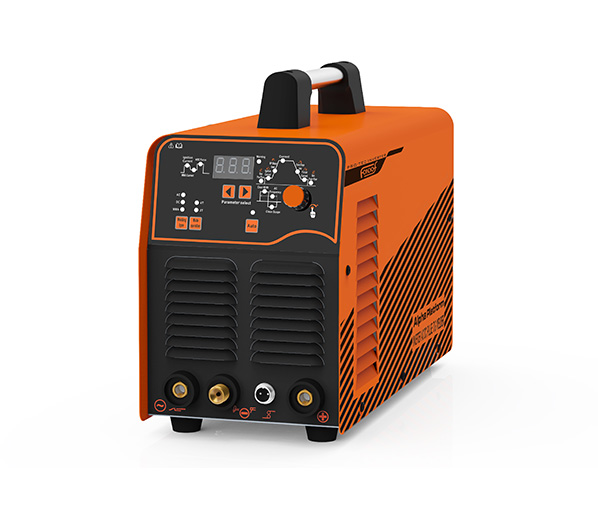

Alpha TIG 200P Welding Machine
The Alpha TIG 200 is the ultimate welding machine for both novice and professional welders alike. Its advanced inverter technology ensures that the welding performance is always smooth and stable, and the adjustable welding amperage and post-flow time provide precise control over the welding process.
Product Description
The Alpha TIG 200 is the ultimate welding machine for both novice and professional welders alike. Its advanced inverter technology ensures that the welding performance is always smooth and stable, and the adjustable welding amperage and post-flow time provide precise control over the welding process. With its lightweight and portable design, the Alpha TIG 200 is perfect for those who need to take their welding work on the go. The digital display makes it easy to monitor and adjust the welding parameters, and the 2T/4T switch allows for maximum convenience and efficiency. Whether you're working on a DIY project or a professional welding job, the Alpha TIG 200 is the perfect tool for the job.
IGBT inverter ;
Digital control with pulse ,
100% arc initiation rate.
2T/4T,spot welding ,
Adjustable ARC start and ARC force.
Cellulose electrode applicable.
| Technical Parameters | Alpha TIG200P |
| Rated Input Voltage (V) | 1PH220 |
| Power Frequency(Hz) | 50/60 |
| Rated Input Current（A） | 40 |
| Rated Input Power(KVA) | 8.9 |
| No-load Voltage(V) | 60～66 |
| Rated Duty Cycle%(40℃) | TIG:35% MMA:30% |
| Welding Current（A | TIG:10～200 MMA:15～200 |
| Pulse Frequency(Hz） | 0.2～500 |
| Arc start Current(MMA)(A) | 0～200 |
| Arc Force Current(MMA)(A) | 0～200 |
| Protection Grade | IP21S |
| Dimension(mm) | 470*185*330 |
| Net Weight（kg） | 11 |
