Mobile asphalt plant

A mobile asphalt plant is a portable facility used for producing asphalt mixtures on-the-go. This type of plant is designed to be easily transported and set up at various construction sites, allowing for efficient and convenient asphalt production.

Product Description

Nowadays, there are more and more small and medium-sized road projects for which we need to frequently change the location of asphalt plant. In order to meet the demands of our clients, we developed different types of mobile asphalt: drum type (MDHB series); compulsory type (QLB series); road repairing type (QLZ type).



For drum type, we use drying drum to dry aggregates and mix them with bitumen. No ore powder will be used. It is usually used for small and low-level road construction. Capacity available: 20t/h to 100t/h.

For compulsory type, there is mixer to mix all the materials like stones, ore powder and bitumen. All materials will be weighed before being discharged into mixer to ensure the accuracy of the asphalt formula. Usually, it is used for small and medium-sized road construction. Capacity available: 10t/h to 80t/h.



For road repairing type, we reuse the asphalt on broken road and repair the road. It is widely used for all kinds of road repairing. Capacity available: 3t/h and 6t/h.



Are you interested in learning more about mobile asphalt plant and how they can benefit you? Contact us today to secure an expert consultation!

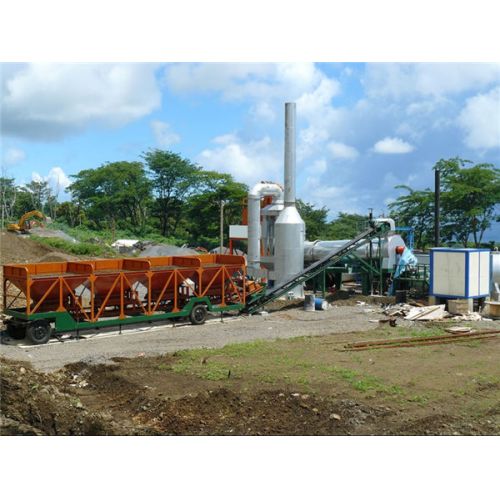

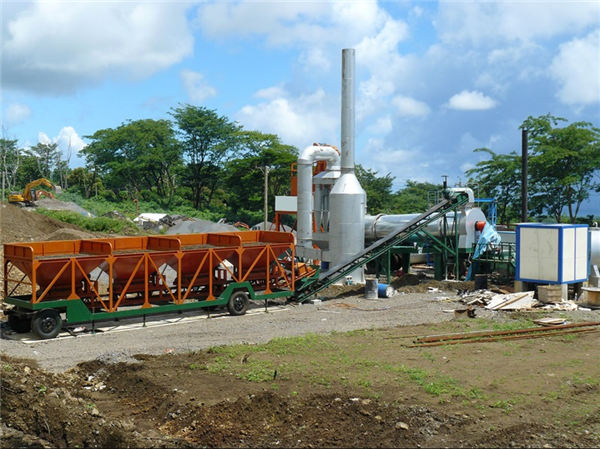

Specification and Pictures of Drum Type Mobile Asphalt Plant



Model

MDHB20

MDHB40

MDHB60

MDHB80

MDHB100

Production Capacity (T/h)

20

40

60

80

100

Mixing Type

Continuous

Continuous

Continuous

Continuous

Continuous

Dust Remove Effect (mg/Nm3)

≤100

≤100

≤100

≤100

≤100

Fuel Consumption (kg/t) (Oil)

5.5-7

5.5-7

5.5-7

5.5-7

5.5-7

Fuel Consumption (kg/t) (Coal)

10-13

10-13

10-13

10-13

10-13

Aggregate Weighing Accuracy(%)

±1.5

±1.5

±1.5

±1.5

±1.5

Bitumen Weighing Accuracy(%)

±1

±1

±1

±1

±1

Total Power (kw)

50

75

128

165

200
