Oil drilling rig / Well Drilling Rig

ZJ20/1350 truck mounted water well drilling rig engineered and modern construction for easy operation, maximize power and get the job done quickly and easily while simplifying maintenance and troubleshooting.

Product Description

Product Description

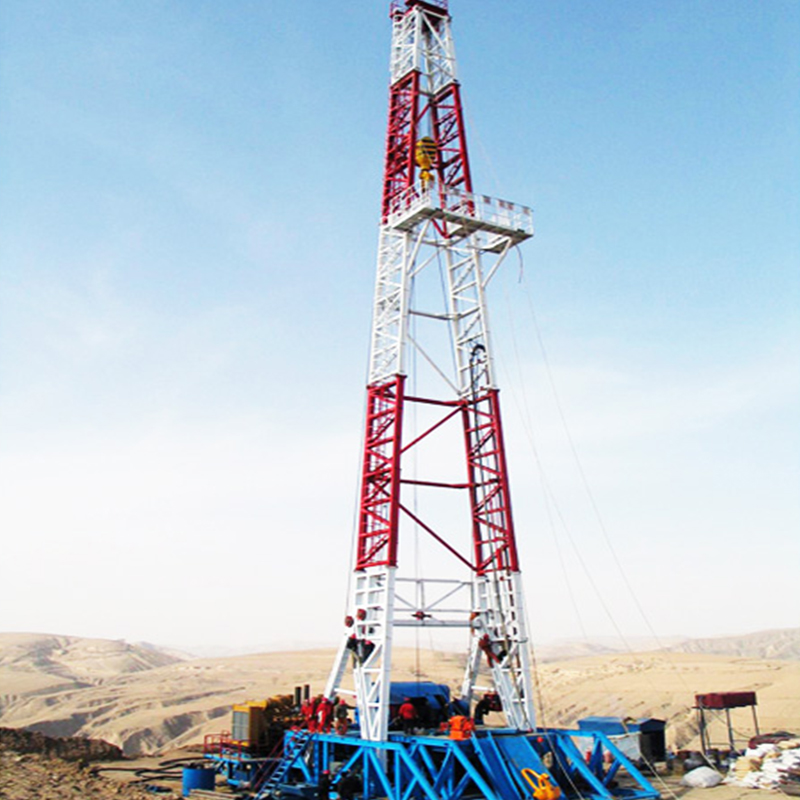

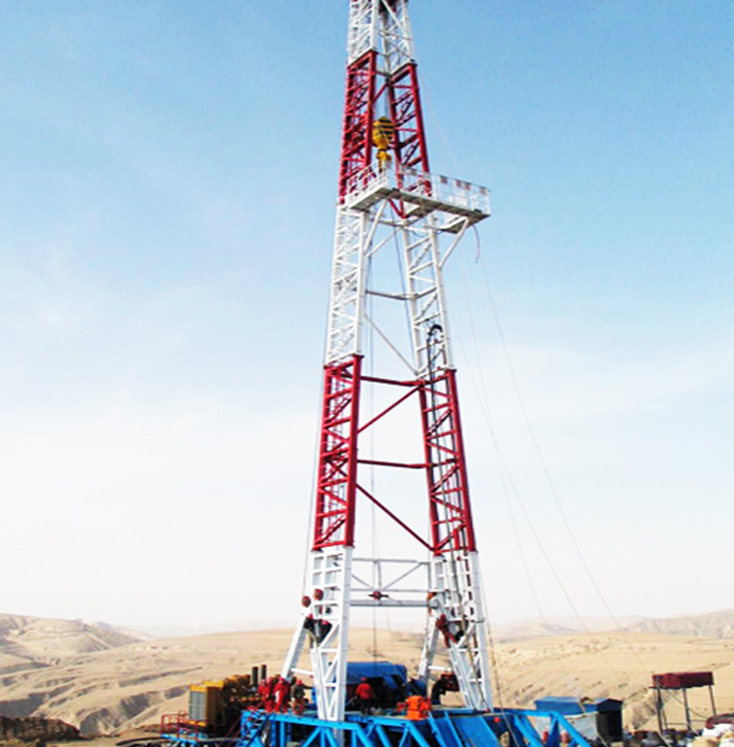

ZJ20/1350 truck mounted water well drilling rig/ oil drilling rig

This truck mounted water well drilling rig is a 2000m series oil drilling rigs designed and manufactured for exploiting oil and gas well, coalbed methane well, geothermal well, shale gas well and so on. They are characterized by simple structure, easy operation, long durability. The main models are as follows: ZJ20/1350, ZJ20/1350DJ (AC drive), ZJ20/1350DZ (DC drive),ZJ20/1350DB (AC VFD).

Features of ZJ20/1350 Truck Mounted Water Well Drilling Rig

  • Mechanical transmission

  • Power: diesel engine+ decelerator

  • Speeds in gearbox become 4 forward +1reverse by gear transmission

  • Output shaft of gearbox transmit the power to drawworks by chain

  • Reasonable distribution of gears, high use ratio of power

  • ZP175 rotary table

  • Gear-shift of gearbox is controlled by pneumatic system



Technical Parameters of ZJ20/1350 Truck Mounted Water Well Drilling Rig

Model

ZJ20/1350

ZJ20/1350DJ

ZJ20/1350DZ

ZJ20/1350DB

Drilling depth (114mm drill pipe)

2000m

2000m

2000m

2000m

Max. hook load

1350kN

1350kN

1350kN

1350KN

Traveling system structure

4×5

4×5

4×5

4×5

Fast line diameter

φ29mm

φ29mm

φ29mm

φ29mm

Max. pull of fast line

170 kN

170kN

200 kN

200kN

Power of drawworks

400KW

400KW

400KW

400KW

Speed of drawworks

4F+ 1R

4F

2F,Stepless speed regulation

2F,Stepless speed regulation

Input power of rotary table

200 kW

200 kW

200 kW

200 kW

Mast

JJ135/41-K

JJ135/41-K

JJ135/41-K

JJ135/41-K

Substructure

DZ135/2.8-K

DZ135/4.5-K

DZ135/4.5-K

DZ135/3.8-K



Yingpai Drilling Machinery offers ZJ20/1350 truck mounted water well drilling rig for well drilling and oil drilling. ZJ20/1350 truck mounted water well drilling rig will definitely get the drilling job done effecient while simplifying maintenance and troubleshooting. If you're looking for high quality drill rig manufacturer, please feel free to contact us for quotation and more information.
