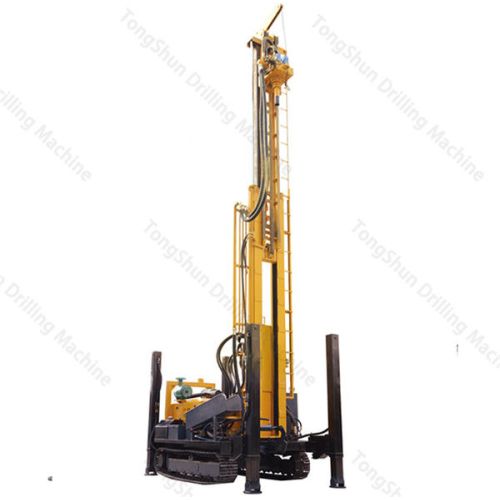

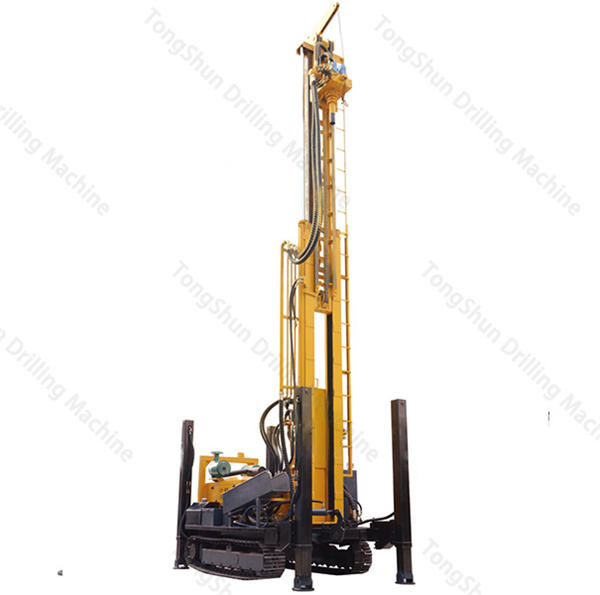

TSHT-400 Trailer Mounted Water Well Drilling Rig

TSHT-400 Trailer Mounted Water Well Drilling Rig

Product Description

Our TSHT-400 trailer-mounted water well drilling rig stands out for its portability and cost-effectiveness

Product Features

  • Versatile Drilling Capability: Drilling diameter range 140-325mm.

  • Enhanced Efficiency: Drilling depth 400m; Penetration efficiency 15-35m/h.

  • Adaptive Specifications: Drill pipe diameter  89mm, 102mm; Length  1.5m, 2.0m, 3.0m, 6.0m.



  • Portability Advantage: Suitable for various types of water well drilling tasks, from small domestic wells to agricultural and general engineering projects. Its lightweight and flexibility make transportation between different job sites effortless.

  • Cost-effectiveness: Our trailer-mounted water well drilling rig offers cost-effective solutions not only in its initial purchase but also in its operational costs, making it an economical choice.

  • Easy Maintenance: Apart from its high-performance capabilities, its simplified structural design also makes maintenance straightforward, thereby reducing maintenance costs.

  • Drill Pipe Specifications: Tailor drill pipe diameter and length to match specific project needs.

  • Specialized Attachments: Custom attachments for unique drilling requirements.

Spec

Unit Prameter
The weight

T

7.5

The hole diameter

mm

140-325
Drilling depth m

400

One-time advance length

m

6.6

Walking speed

km/h

80

Climbing angles

Max.

30

Equipped capacitor

kW 92

Using air pressure

MPa

1.7-3.4

Air consumption m³/min 17-36

Swing speed

RPM

66-135

The penetration efficienc

m/h

15-35

Drill pipe diameter

m 89, 108

Drill pipe length

m 1.5, 2.0, 3.0, 6.0

Rig lifting force

T 22

Rapid rise speed

m/min 18

Fast feeding speed

m/min 33

Width of loading

m 2.7

Hoisting force of winch

T 2

Swing torque

N.m





6200-8500

Dimension

mm









5000*1000*2200



High leg stroke

m

1.4



The engine brand





Yuchai engine

Note: The engine can be customized



Trailer-mounted drilling rigs are designed to be mobile and transportable, allowing them to be easily towed to different job sites using a truck or similar vehicle. This mobility makes them ideal for projects that require drilling in remote or hard-to-reach locations.

It's important to note that the specific type of drill rig and the drilling techniques used depend on the geological conditions of the site. Tongshun has many types of water well drilling rigs for sale.
