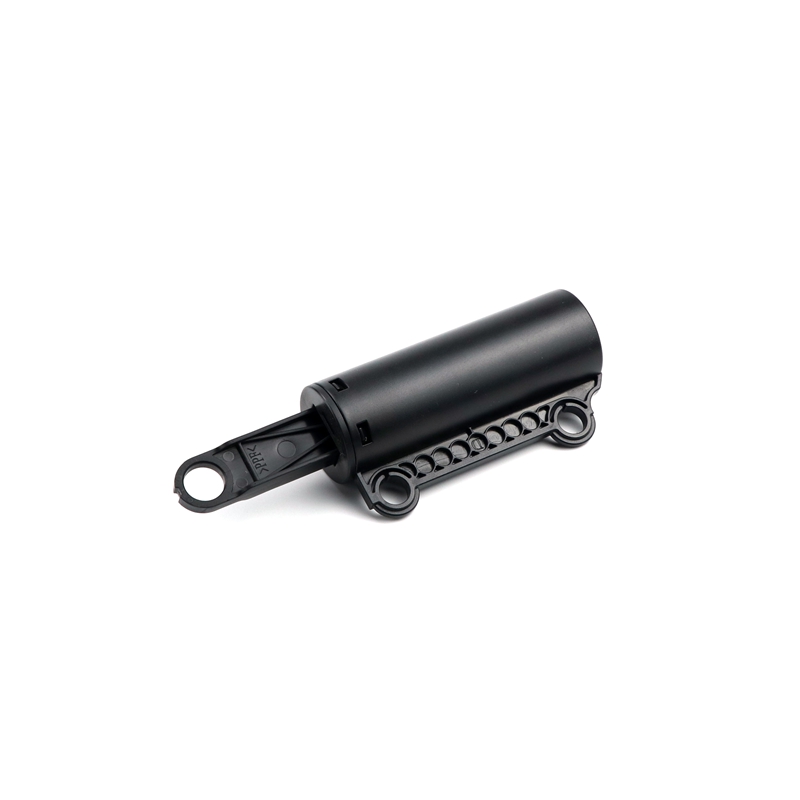

Air Damper RD-V118
Product Description
Air Damper RD-V118 Component Parts
Less honorary seat: PC
Upper cover: PC
O-RING: Oil-emitting silicone
Tie rod: PP
1. Damping and Cushioning Direction: V - Unidirectional
2. Torque Testing Standard: 23±2°C, speed of 2400 r/min
3. Torque Range: 1.0-4.5 kgf.cm
4. Effective Damping Stroke: 60mm
5. Static High and Low-Temperature Requirement: -40°C to 90°C
6. Damping Durability Requirement: >20,000 cycles
7. Flame Resistance Compliance:
- GB 8410 "Standard for the Burning Characteristics of Materials Used in Automotive Interior Parts"
- Combustion rate in Class D should be less than 100mm/min
8. Restricted Substances Compliance:
- GB/T 30512 "Standard for Requirements of Restricted Substances in Automotive Components"
Air dampers employ airflow to create damping effects. its working principle is to generate torque by controlling the exhaust volume of the exhaust hole, for the handpiece to provide a cushioning resistance, so that the handpiece slowly open, the product is used more rhyme and beauty, to improve the product grade.
