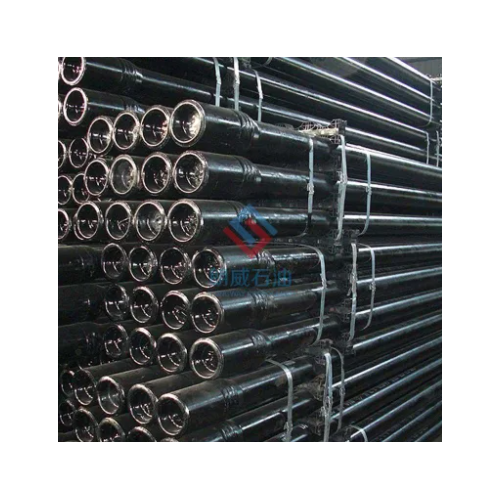

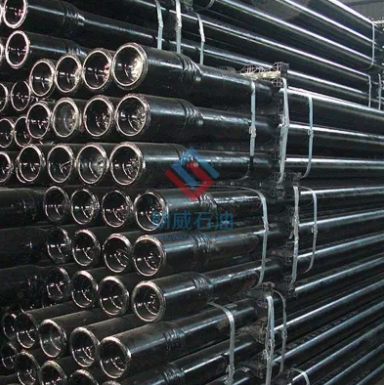

Oil drill pipe

The Oil Well Pipe For Sale by Hebei Longway are widely used and sold in oil drilling areas all over the world.

Product Description

Oil Well Pipe For Sale

The Oil Well Pipe For Sale by Hebei Longway are widely used and sold in oil drilling areas all over the world. The company has 3 drill pipe friction welding production lines, with American MTI friction welding machine, American NOV 1250-ton pipe end upsetting machine, 200-ton six-roll hot straightening machine, automatic overall quenching and tempering furnace and other equipment, which can produce high-quality and efficient oil Drill pipe.



The company also has a complete set of oil drill pipe supporting products: weighted drill pipedrill collar, kelly pipe, adapters, etc., which can provide customers with overall solutions for drilling tools required for oil drilling to fully meet the needs of oil drilling.Get a free quotation! We are your best oil drill pipe exporter!



Specification

Our company produces a complete range of Oil Well Pipe .

The main specifications of Oil Well Pipe For Sale: 2-3/8” drill pipe, 2-7/8” drill pipe, 3-1/2” drill pipe, 4” drill pipe, 4-1/2” drill pipe, 5” Drill pipe, 5-1/2" drill pipe, 6-5/8" drill pipe

Oil Well Pipe steel grades are: E75, X95, G105, S135, SS105, and SS135.



Applications

The tubing is a pipeline that transports crude oil and natural gas from the reservoir to the surface after drilling is completed to withstand the pressure generated during the mining process.



The role of petroleum tubing: extraction of oil and gas: After the oil and gas well is finished and cemented, the oil pipe is placed in the casing of the oil layer to extract oil and gas to the ground. Water injection: When the pressure in the well is not enough, water is injected into the well through the oil pipe. Steam injection: In the process of heavy oil thermal recovery, steam is input to the well with an insulated oil pipe.



Acidification and fracturing: In order to improve the production of oil and gas wells in the later stage of well drilling, it is necessary to input acidification and fracturing medium or solid material to the oil and gas layer, and the medium or solidified material is transported through the oil pipe. For more information,welcome to contact us!



Advantages

Oil drill pipes are specialized pipes used in the process of drilling for oil and natural gas. Some of the advantages of using oil drill pipe include:

1. Durability: Oil drill pipes are designed to withstand the harsh drilling environment and the weight of the drill bit. They are made of high-strength steel or other durable materials that can resist wear and tear.

2. Corrosion resistance: The pipes are often coated with materials that protect against corrosion caused by the drilling fluid or other harsh environmental factors.

3. High performance: Oil drill pipes are designed to provide high performance and efficiency in drilling operations. They are engineered to handle the high loads and pressures that occur during drilling.

4. Versatility: Oil drill pipes are versatile and can be used in various types of drilling rigs, including onshore and offshore rigs.

5. Compatibility: The pipes are designed to be compatible with other drilling equipment, making it easy to integrate them into the drilling system.

6. Cost-effectiveness: Although oil drill pipes can be expensive, their durability and high performance make them cost-effective in the long run.

Overall, the use of oil drill pipes can improve the efficiency, safety, and productivity of drilling operations, making them an essential component of the oil and gas industry.

Oil Well Pipe For Sale



Drill pipe quality control

a) Before order to be confirmed, the raw material of pipe body and tool joint should be booked from famous big steel enterprises in China.

b) Raw material’s size, quantity, length, mechanical property are checked by our QC staff and factory own laboratory

c) Every Oil Well Pipe For Sale has nondestructive inspection , cleaned and thread oil before packing.

If you are interested in our products,welcome to Contact Us!



Manufacturing proces

Oil Well Pipe For Sale



Lonway is a professional Oil Well Pipe supplier who commits to offer best quality drill collar, heavy weight drill pipes and Oil Well Pipe For Sale. All products can be customized as to your requirements for the thickness, length, connection type, etc. For detailed information, please feel free to contact us!

Oil Well Pipe For Sale



Drill Pipe and Tool Joint Data Sheets

DRILL PIPE TOOL JOINT
OD Wall Thickness ID Upset End Grade Connection Type OD ID Length of Pin Pin Tong space Box Tong Space Combined Length of Pin and Box Dia. Of Elevator Upset
in mm mm in mm in mm in in in in in
23/8 7.110 46.100 EU E75 NC26/2-3/8IF 33/8 85.7 13/4 44.5 10 7 8 15 29/16
X95 33/8 85.7 13/4 44.5 10 7 8 15 29/16
G105 33/8 85.7 13/4 44.5 10 7 8 15 29/16
S135 33/8 85.7 13/4 44.5 10 7 8 15 29/16
27/8 9.190 54.600 EU E75 NC31/2-7/8IF 41/8 104.8 21/8 54.0 101/2 7 9 16 33/16
X95 41/8 104.8 2 50.8 101/2 7 9 16 33/16
G105 41/8 104.8 2 50.8 101/2 7 9 16 33/16
S135 43/8 111.1 15/8 41.3 101/2 7 9 16 33/16
31/2 6.450 75.900 EU E75 NC38 43/4 120.7 211/16 68.3 111/2 8 101/2 181/2 37/8
31/2 9.350 70.200 EU E75 NC38/3-1/2IF 43/4 120.7 211/16 68.3 12 8 101/2 181/2 37/8
X95 5 127.0 29/16 65.1 12 8 101/2 181/2 37/8
G105 5 127.0 27/16 61.9 12 8 101/2 181/2 37/8
S135 5 127.0 21/8 54.0 12 8 101/2 181/2 37/8
31/2 11.400 66.100 EU E75 NC38/3-1/2IF 5 127.0 29/16 65.1 12 8 101/2 181/2 37/8
X95 5 127.0 27/16 61.9 12 8 101/2 181/2 37/8
G105 5 127.0 21/8 54.0 12 8 10 1/2 181/2 37/8
31/2 11.400 66.100 EU S135 NC40 51/2 139.7 21/4 57.2 111/2 7 10 17 37/8
4 8.380 84.800 IU E75 NC40 51/4 133.4 213/16 71.4 111/2 7 10 17 43/16
X95 51/4 133.4 211/16 68.3 111/2 7 10 17 43/16
G105 51/2 139.7 27/16 61.9 111/2 7 10 17 43/16
S135 51/2 139.7 2 50.8 111/2 7 10 17 43/16
4 8.380 84.800 EU E75 NC46 6 152.4 31/4 82.6 111/2 7 10 17 41/2
X95 6 152.4 31/4 82.6 111/2 7 10 17 41/2
G105 6 152.4 31/4 82.6 111/2 7 10 17 41/2
S135 6 152.4 3 76.2 111/2 7 10 17 41/2
41/2 6.880 100.500 IU E75 NC46 6 152.4 33/8 85.7 111/2 7 10 17 411/16
41/2 6.880 100.500 EU E75 NC50 65/8 168.3 33/4 95.3 111/2 7 10 17 5
41/2 8.560 97.200 IEU E75 NC46 61/4 158.8 31/4 82.6 111/2 7 10 17 411/16
X95 61/4 158.8 3 76.2 111/2 7 10 17 411/16
G105 61/4 158.8 3 76.2 111/2 7 10 17 411/16
S135 61/4 158.8 23/4 69.9 111/2 7 10 17 411/16
41/2 8.560 97.200 EU E75 NC50 65/8 168.3 33/4 95.3 111/2 7 10 17 5
X95 65/8 168.3 33/4 95.3 111/2 7 10 17 5
G105 65/8 168.3 33/4 95.3 111/2 7 10 17 5
S135 65/8 168.3 31/2 88.9 111/2 7 10 17 5
41/2 10.920 92.500 IEU E75 NC46 61/4 158.8 3 76.2 111/2 7 10 17 411/16
X95 61/4 158.8 23/4 69.9 111/2 7 10 17 411/16
G105 61/4 158.8 21/2 63.5 111/2 7 10 17 411/16
S135 61/4 158.8 21/4 57.2 111/2 7 10 17 411/16
41/2 10.920 92.500 EU E75 NC50 65/8 168.3 35/8 92.1 111/2 7 10 17 5
X95 65/8 168.3 31/2 88.9 111/2 7 10 17 5
G105 65/8 168.3 31/2 88.9 111/2 7 10 17 5
S135 65/8 168.3 3 76.2 111/2 7 10 17 5



MECHANICAL PROPERIES
Pipe Tensile Strength Pipe Internal Pressure Pipe Collapse Pressure Pipe Torsional Strength Torsional Yield Strength of Tool Joint Torsional Ratio TJ to Drill Pipe Recommennd Make-up Torque
lbs psi (MinWT-12.5%) psi ft-lbs ft-lbs ft-lbs ft-lbs
138,000 15,470 15,600 6,250 6,875 1.10 4,130
175,000 19,600 19,760 7,920 6,875 0.87 4,130
194,000 21,660 21,840 8,750 6,875 0.79 4,130
249,000 27,850 28,080 11,250 6,875 0.61 4,130
214,000 16,530 16,510 11,550 11,871 1.03 7,120
272,000 20,930 20,910 14,640 13,196 0.90 7,920
300,000 23,140 23,110 16,180 13,196 0.82 7,920
386,000 29,750 29,720 20,800 16,946 0.81 10,170
194,000 9,530 10,000 14,150 18,107 0.91 10,860
272,000 13,800 14,110 18,550 18,107 0.98 10,860
344,000 17,480 17,880 23,500 20,327 0.86 12,200
380,000 19,320 19,760 25,970 22,213 0.86 13,330
489,000 24,840 25,400 33,390 26,516 0.79 15,910
323,000 16,840 16,770 21,090 20,327 0.96 12,200
409,000 21,330 21,250 26,710 22,213 0.83 13,330
452,000 23,570 23,480 29,520 26,516 0.90 15,910
581,000 30,310 30,190 37,950 32,944 0.87 19,770
285,000 10,830 11,350 23,290 23,487 1.01 14,090
361,000 13,720 14,380 29,500 25,673 0.87 15,400
400,000 15,160 15,900 32,600 30,114 0.92 18,070
514,000 19,490 20,140 41,920 36,363 0.87 21,820
285,000 10,830 11,350 23,290 33,626 1.44 20,180
361,000 13,720 14,380 29,500 33,626 1.14 20,180
400,000 15,160 15,900 32,600 33,626 1.03 20,180
514,000 19,490 20,140 41,920 39,230 0.94 23,540
270,000 7,900 7,170 25,910 30,656 1.18 18,390
270,000 7,900 7,170 25,910 38,060 1.47 22,840
331,000 9,830 10,390 30,810 33,994 1.10 20,400
419,000 12,450 12,760 39,020 39,659 1.02 23,800
463,000 13,760 13,820 43,130 39,659 0.92 23,800
595,000 17,690 16,770 55,450 44,872 0.81 26,920
331,000 9,830 10,390 30,810 38,060 1.24 22,840
419,000 12,450 12,760 39,020 38,060 0.98 22,840
463,000 13,760 13,820 43,130 38,060 0.88 22,840
595,000 17,690 16,770 55,450 45,128 0.81 27,080
412,000 12,540 12,960 36,900 39,659 1.07 23,800
522,000 15,890 16,420 46,740 44,872 0.96 26,920
577,000 17,560 18,150 51,660 49,631 0.96 29,780
742,000 22,580 23,330 66,420 53,937 0.81 32,360
412,000 12,540 12,960 36,900 41,655 1.13 24,990
522,000 15,890 16,420 46,740 45,128 0.97 27,080
577,000 17,560 18,150 51,660 45,128 0.87 27,080
742,000 22,580 23,330 66,420 57,801 0.87 34,680



Drill Pipe and Tool Joint Data Sheets

DRILL PIPE TOOL JOINT
OD Wall Thickness ID Upset End Grade Connection Type OD ID Length of Pin Pin Tong Spase Box Tong Space Combined Length of Pin and Box Dia. Of Elevator Upset
in mm mm in mm in mm in in in in in
5 8.280 108.600 IEU E75 NC50 6 5/8 168.3 3 3/4 95.3 11 1/2 7 10 17 51/8
X95 6 5/8 168.3 31/2 88.9 11 1/2 7 10 17 51/8
G105 6 5/8 168.3 31/4 82.6 11 1/2 7 10 17 51/8
S135 6 5/8 168.3 2 3/4 69.9 11 1/2 7 10 17 51/8
5 12.700 101.600 IEU E75 NC50 6 5/8 168.3 31/2 88.9 11 1/2 7 10 17 51/8
X95 6 5/8 168.3 3 76.2 11 1/2 7 10 17 51/8
G105 6 5/8 168.3 2 3/4 69.9 11 1/2 7 10 17 51/8
5 9.190 108.600 IEU E75 5 1/2FH 7 177.8 3 3/4 95.3 13 8 10 18 51/8
X95 7 177.8 3 3/4 95.3 13 8 10 18 51/8
G105 7 177.8 3 3/4 95.3 13 8 10 18 51/8
S135 7 1/4 184.2 31/2 88.9 13 8 10 18 51/8
5 12.700 101.600 IEU E75 5 1/2FH 7 177.8 31/2 88.9 13 8 10 18 51/8
X95 7 177.8 31/2 88.9 13 8 10 18 51/8
G105 7 1/4 184.2 31/2 88.9 13 8 10 18 51/8
S135 7 1/4 184.2 31/4 82.6 13 8 10 18 51/8
51/2 9.170 121.400 IEU E75 5 1/2FH 7 177.8 4 101.6 13 8 10 18 511/16
X95 7 177.8 3 3/4 95.3 13 8 10 18 511/16
G105 7 1/4 184.2 31/2 88.9 13 8 10 18 511/16
S135 7 1/2 190.5 3 76.2 13 8 10 18 511/16
51/2 10.540 118.600 IEU E75 51/2FH 7 177.8 4 101.6 13 8 10 18 511/16
X95 7 1/4 184.2 31/2 88.9 13 8 10 18 511/16
G105 7 1/4 184.2 31/2 88.9 13 8 10 18 511/16
S135 7 1/2 190.5 3 76.2 13 8 10 18 511/16
65/8 8.380 151.500 IEU E75 6 5/8FH 8 203.2 5 127.0 13 8 11 19 615/16
X95 8 203.2 5 127.0 13 8 11 19 615/16
G105 81/4 209.6 4 3/4 120.7 13 8 11 19 615/16
S135 81/2 215.9 41/4 108.0 13 8 11 19 615/16
65/8 9.190 149.900 IEU E75 6 5/8FH 8 203.2 5 127.0 13 8 11 19 615/16
X95 81/4 209.6 4 3/4 120.7 13 8 11 19 615/16
G105 81/4 209.6 4 3/4 120.7 13 8 11 19 615/16
S135 81/2 215.9 4 1/4 108.0 13 8 11 19 615/16



MECHANICAL PROPERIES
Pipe Tensile Strength Pipe Internal Pressure Pipe Collapse Pressure Pipe Torsional Strength Torsional Yield Strength of Tool Joint Torsional Ratio TJ to Drill Pipe Recommennd Make- up Torque
lbs psi (MinWT-12.5%) psi ft-lbs ft-lbs ft-lbs ft-lbs
396,000 9,500 10,070 41,170 38,060 0.92 22,840
501,000 12,040 12,020 52,140 45,128 0.87 27,080
554,000 13,300 13,000 57,630 51,708 0.90 31,020
712,000 17,100 15,670 74,100 63,407 0.86 38,040
530,000 13,130 13,500 52,260 45,128 0.86 27,080
672,000 16,630 17,100 66,190 57,801 0.87 34,680
742,000 18,380 18,900 73,160 63,407 0.87 38,040
396,000 9,500 10,070 41,170 62,903 1.53 37,740
501,000 12,040 12,020 52,140 62,903 1.21 37,740
554,000 13,300 13,000 57,630 62,903 1.09 37,740
712,000 17,100 15,670 74,100 72,484 0.98 43,490
530,000 13,130 13,500 52,260 62,903 1.20 37,740
672,000 16,630 17,100 66,190 62,903 0.95 37,740
742,000 18,380 18,900 73,160 72,484 0.99 43,490
954,000 23,630 24,300 94,060 78,716 0.84 47,230
437,000 8,610 5,440 50,710 55,934 1.10 33,560
554,000 10,910 7,850 64,230 62,903 0.98 37,740
612,000 12,060 9,060 70,990 72,484 1.02 43,490
787,000 15,510 12,670 91,280 87,171 0.95 52,300
497,000 9,900 10,460 56,570 55,934 0.99 33,560
630,000 12,540 10,910 71,660 72,484 1.01 43,490
696,000 13,860 12,440 79,200 72,484 0.92 43,490
895,000 17,830 17,020 101,830 87,171 0.86 52,300
489,000 6,540 1,550 70,580 73,662 1.04 44,200
620,000 8,280 2,920 89,400 73,662 0.82 44,200
685,000 9,150 3,610 98,810 86,238 0.87 51,740
881,000 11,770 6,040 127,050 109,227 0.86 65,540
534,000 7,170 2,740 76,300 73,662 0.97 44,200
677,000 9,080 4,430 96,640 86,238 0.89 51,740
748,000 10,040 5,270 106,810 86,238 0.81 51,740
962,000 12,910 7,810 137,330 109,227 0.80 65,540



Why should you choose our oil drill pipe?

Oil drill pipes are an essential component in the process of drilling for oil and gas. They are used to transmit drilling fluid to the drill bit and to transfer the drilling torque from the rotary table to the drill bit. Hebei Longway Petroleum Equipment Co., Ltd. specializes in manufacturing a wide range of high-quality oil drill pipes that are designed to meet the specific requirements of the oil and gas industry.



One of the key advantages of Longway's oil drill pipes is their reliable quality. The company has a comprehensive quality assurance system in place, which has earned it ISO9001 international quality system certification, Russian GOST RTN, NS - 1 in Europe, and other quality certifications. All of their oil drill pipes are designed and manufactured to the highest standards and have undergone rigorous testing by third-party organizations such as the national oil pipe quality control center and the Russian oil pipe research institute.



Hebei Longway Petroleum Equipment Co., Ltd. offers a range of oil drill pipes that can be customized to meet the specific needs of their customers. Their oil drill pipes can be designed and manufactured in different sizes, grades, and specifications, including high torque, double shoulder, sulfur resistance, and higher grade of steel drilling tools such as LV150. They are able to work closely with their customers to design and manufacture oil drill pipes that meet their unique requirements.



The oil drill pipes produced by Hebei Longway Petroleum Equipment Co., Ltd. are made from high-quality materials that are carefully selected to ensure the highest levels of durability and reliability. The company uses advanced manufacturing processes and equipment to produce oil drill pipes that are resistant to wear, corrosion, and fatigue. Their oil drill pipes are designed to withstand the harsh environments and demanding conditions encountered in the oil and gas industry.



In conclusion, Hebei Longway Petroleum Equipment Co., Ltd. is a leading manufacturer of high-quality oil drill pipes. Their oil drill pipes are designed and manufactured to the highest standards and can be customized to meet the specific requirements of their customers. With a comprehensive quality assurance system in place and rigorous testing by third-party organizations, customers can trust that Hebei Longway Petroleum Equipment Co., Ltd.'s oil drill pipes are stable, reliable, and durable.



We are your best oil drill pipe exporter!

Hebei Longway Petroleum Equipment Co., Ltd. has specialized in the production of drill pipes for more than 20 years.Our company has a complete oil drill pipe production system, from raw material cutting to joint forging, from pipe end upsetting to friction welding, as well as hard band welding and inner coating processing.Our company has excellent technicians and quality inspectors, and has rich experience in oil drill pipe production and testing to ensure product quality.



Our company selects high-quality raw materials of Oil Well Pipe For Sale,the main raw materials are TPCO, Baosteel, NISCO; product specifications are complete, with independent patented LPC series internal coating and LW series wear resistance, the quality is comparable to internationally renowned similar products, high quality and low price.Our company can process customized threads and customize the length of the oil drill pipe joints according to the customer's oil drilling needs to match the customer's original oil drill pipe to meet the needs of ordinary oil wells, corrosive environment oil wells, offshore oil wells, super large deep oil wells and other scenarios.
