PC WIRE

PC WIRE

Product Description

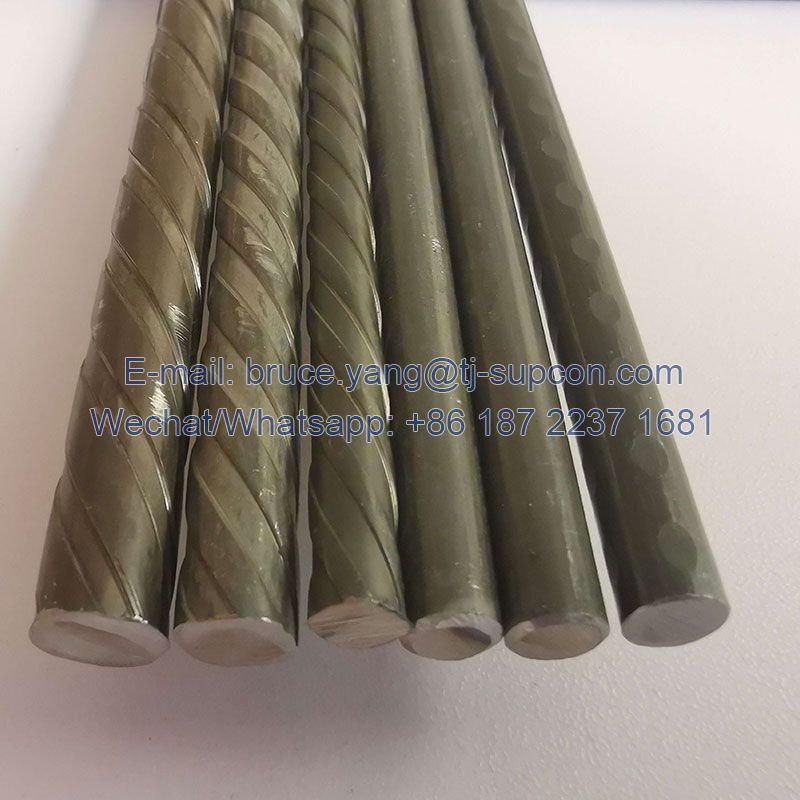

Huayongxin as a leading supplier of pc wires,we provide three main types of PC wire for concrete reinforcement, including plain surface PC wirespiral ribs PC wire, and indented PC wire



Specification:

Material: High carbon steel / SWRH82B

Diameter: 4.00mm - 9.00mm.

Standards: ASTM A 421, GB/T5223, BS5896, JISG3536, and required standard.

Packing: Packed in coils (around 700-1300kg/coil). Each coil is strapped by steel bands at 8 places, fully wrapped with anti-rust plastic & PP woven sheet.

Relaxation (%): ≤2.5

Elongation (%): ≥3.5



PC Wire Applications:

The use of prestressed concrete with PC wire offers several advantages, including increased structural strength, reduced cracking, and enhanced load-bearing capacity. Here are some common applications of PC wire:

Bridges: PC wire is frequently used in the construction of bridges to create prestressed concrete girders and beams. These girders and beams are capable of handling heavy loads over long spans, making them ideal for bridge construction.

Buildings and High-Rise Structures: In high-rise buildings and other large structures, PC wire is used to create precast concrete elements, such as floor slabs, columns, and beams. These precast elements are produced in controlled factory conditions and then transported to the construction site, reducing on-site construction time and increasing quality.

Railway Sleepers: PC wire is employed in the production of prestressed concrete railway sleepers (ties). These sleepers provide a stable and durable foundation for railway tracks, ensuring smooth and safe rail transportation.

Concrete Poles and Piles: PC wire is used to manufacture prestressed concrete poles and piles for applications such as electric power transmission, telecommunications, and foundation support for various structures.

Nuclear Containment Structures: In nuclear power plants, prestressed concrete with PC wire is often used to construct containment structures, providing enhanced strength and safety.

Water Tanks and Silos: PC wire is utilized in the construction of water tanks and silos to create sturdy and reliable storage structures for various materials.

Slabs on Ground: In certain construction projects, ASTM A416 PC wire is used to reinforce slabs on the ground, enhancing their load-bearing capacity and minimizing the risk of cracking.

Retaining Walls: Prestressed concrete panels and elements with PC wire are employed in the construction of retaining walls, which provide stability and prevent soil erosion.

Tunnel Linings: PC wire is used to create prestressed concrete tunnel linings, ensuring the structural integrity and stability of the tunnel.
