10.1 Inch Optical Bonding Touch Screen LCD Panel

10.1 Inch Optical Bonding Touch Screen LCD Panel

Product Description

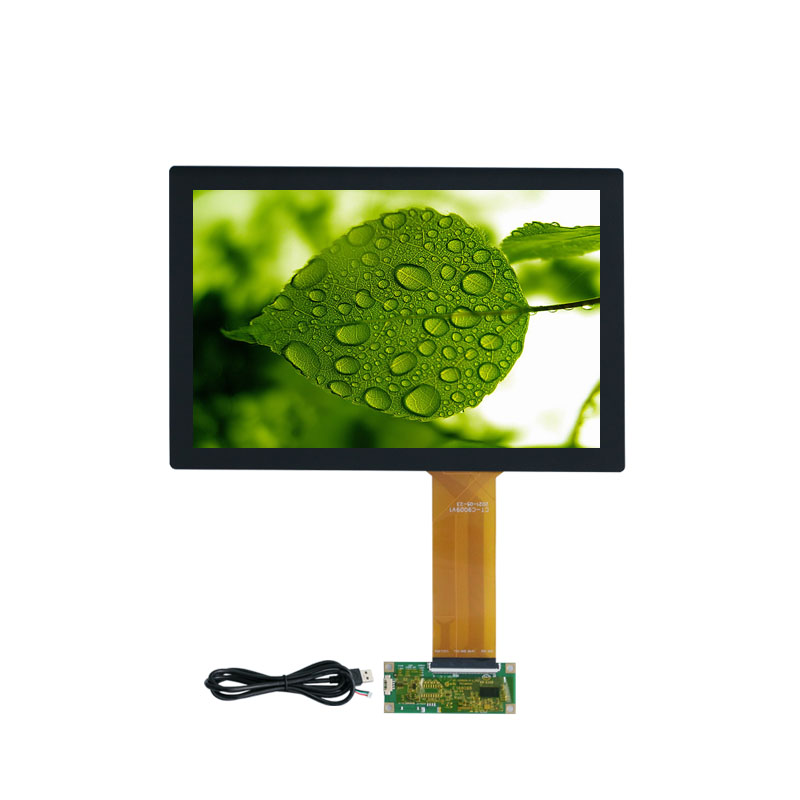

10.1 Inch Optical Bonding Touch Screen LCD Panel

10.1 Inch LCD panel with multi-touch is a universal touchscreen display module for HMI (human machine interface). It is recommended for medical devices and industrial equpopment due to its wide operating temperature and 16.7M display colors.

YS101QT01V1.0 is WXGA resolutions (1280 horizontal by 800 vertical pixel array), optically bonded with projected capacitive touchscreen sensor. There is a strengthened cover glass on top of this touchscreen display to protect it. You can customize the color, the dimension, the shape, logo, text and thickness. It supports plug-and-play multi-touch via the USB interface on the controller board. This module is recommended for medica images and industrial devices. Sure, it can be also used on many other products.



Optical bonding touch screen

Optical bonding touch screen technology refers to the process of bonding a touch sensor directly to the display panel using a transparent adhesive material. This bonding process helps to eliminate the air gap between the touch sensor and the display, resulting in improved optical clarity, enhanced durability, and reduced reflections.



Main Features of Optical Bonding  LCD Panel

• 1 ort LVDS inteface input,  40 pins  connector is used for LCD module electronics interface and the backlight system. Connetor is MSAK24025P40G or equivalent.

• 6+2bit color depth, display 16.7M colors.

• Thin and light weight.

• High luminance and constrast ratio, low reflection and wide viewing angles.

• ROHS compliant.

• Touch is projected capacitive touch screen technology with ITO sensor glass optically bonded under cover glass.

• Touch controller board supports USB interface, IIC Inteface and RS232 interface.

• Touch points supports finger touch up to 10 points, compatible with Windows, Android and Linux operating systems.
