Barcode NFC Card Access Control Reader

Access Control Products Manufacturer China. Welcome browse our website and contact us.

Product Description

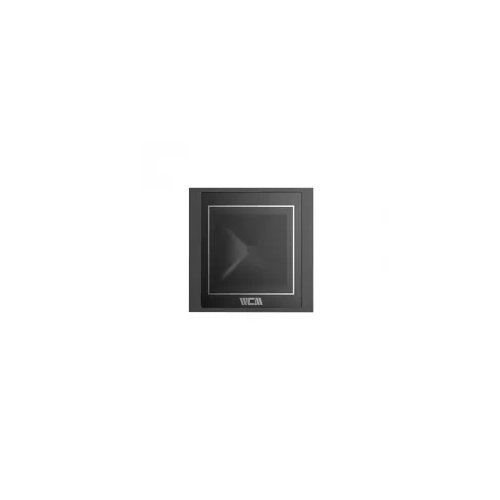

Barcode NFC Card Access Control Reader

  • The 4th generation I-SUBPIXEL algorithm of intelligent access control card readers.

  • Flexible, optional relay.

  • Support non-contact ic cards, type A/B, M1 card.

  • Support customized software according to customer’s requirements.

  • Various interface is available wiegand, RS232, RS485, USB, Ethernet.

  • Suitable for such as control of the elevator, commuity, office, club, factory, school and so on.

  • DESCRIPTION

  • Module AC8030
    Morphology Interface Dimensions 86mm*86mm*38mm
    Material PC+ armoured glass
    Weight 100g
    Voltage DC 12V(5V-30V)  ,USB 5V
    Current <160mA 12V
    Interface Wiegand,RS232,RS485,USB
    Code Scanning Performance Image Sensor 640 x 480 CMOS,30fps
    View Angle Horizontal 63°, Vertical51°
    Scan Angle Roll:360°, Pitch:±60°, Skew:±50°
    Support Code On by default:EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、Code128、Code39、Code93、CodaBar、QR Code、PDF417、DataMatrixOff by default:Interleaved 2 of 5、Industrial 25、Matrix 2 of 5、Code11、 MSI Plessey 、RSS-14、RSS-Limited、RSS-Expanded
    Reading Distance 0-200mm (6-inch mobile phone, wechat QR payment code)
    Resolution 1D:≥5mil / 2D:≥10mil
    Symbol Contrast ≥ 25%
    Recognition Mode Active / passive, with support for induction mode
    Scan Code Feedback Beep Beeping; the green light indicates scanning code
    Support Card ISO14443A / B, support ID card physical ID, NFC mobile phone, Mifarecard
    Environmental Parameters Operating Temperature -20℃ ~ 60℃
    Operating Humidity 5%RH~95%RH(Non-condensing)
    Storage Temperature -40℃ ~ 80℃
    Ambient Lighting 0-80000Lux
    Static Protection Contact discharge ± 6KV and air discharge ± 12KV
    IP Protection Front IP54

    Access Control Products AC8030
