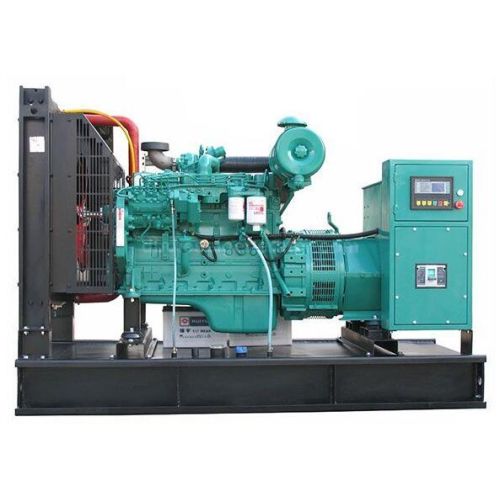

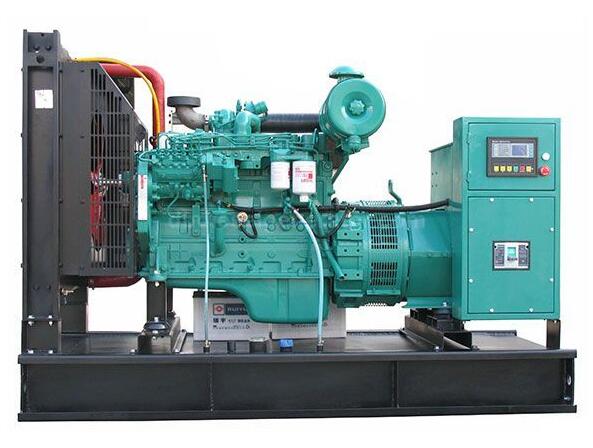

100kw 125kva Cummins Diesel Generator Set

Dingbo Diesel Generator Set Data

Model: DB-100GF

Output power: 100KW/125KVA

Rated current: 180A

Rated frequency: 50Hz

Power factor: 0.8lag

Rated voltage: 230/400V

Start mode: electric start

Transport package: plastic film/ plywood case

100kw 125kva Cummins Diesel Generator Set Advantage

1.Long service life

2.Easy maintenance

3.Low noise, small vibration

4.Smooth operation, lose noise, high efficiency

5.Global warranty service

6.Both 50Hz and 60Hz

7.ISO9001, ISO14001, GB/T2800 certification

8.The design of cylinder block is strong and durable

9.Fuel system: Cummins PT system, with unique overspeed protection device; low pressure oil pipeline, less pipeline, low failure rate, high reliability; high pressure injection, full combustion.

10.Forced water cooling, low heat radiation, excellent performance

11.Spare parts are easy to get from worldwide market with much cheaper price

12.Coupled with Stamford, Leroysomer, Marathon, Siemens, ENGGA or China alternator Shanghai Kepu, Shanghai Stamford. Controller SmartGen, Deep Sea, ComAp.

13.Perfect after-sales network

14.Rigorous test including 50% load,75% load,100% load and 110% load

For open type, the genset will be much easier to maintenance and repair, with more durable performance and longer service life, so the cost performance is higher.

The CCEC/DCEC/Cummins USA engine with excellent quality and reliable performance, coupled with brushless self-exciting generator, applying integral salient pole rotor technique, Class H insulation, ensuring its advanced performance, steady and reliable operation. Our controller adopts multi-functional control module which is specially for diesel generators.
