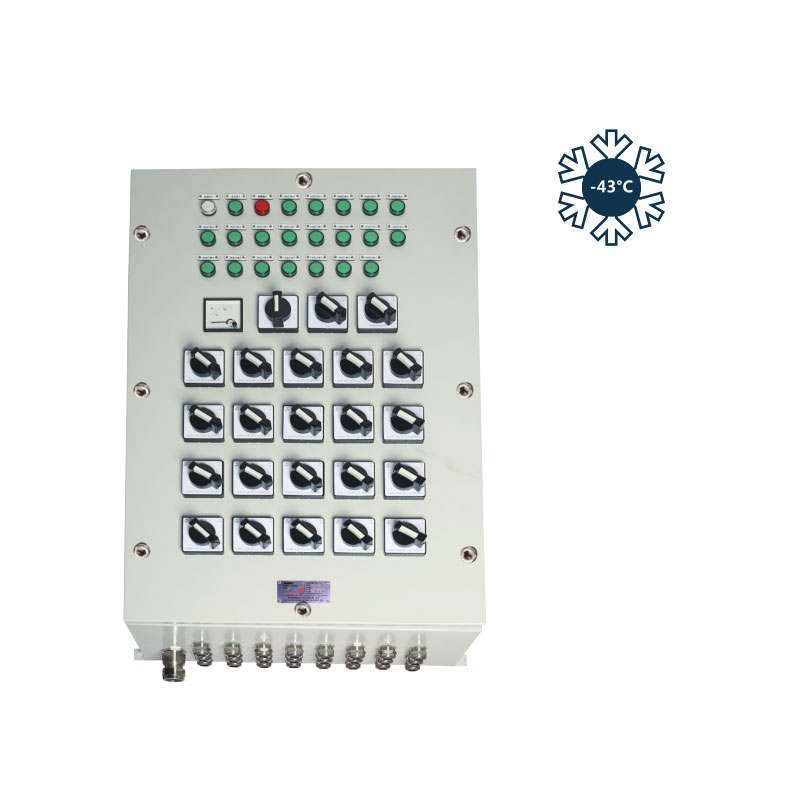

Dust Explosion-proof power distribution panel MAMX-20

Different installation methods such as hanging and floor-mounted installation and different incoming cables such as ordinary rubber and plastic cable, armored cable and heating cable.

Product Description

Dust Explosion-proof Power Distribution Panel MAMX-20

*Enclosure material: Q235/SS304/SS316/SS316L

*Ex-marks: Ex tb IIIC T80℃ Db  * Protection level: IP66

*Certificate:ATEX,IECEx and TR CU

*Max current: 630A

*Max Power consumption:100W



*In—built circuit breaker, AC Contactor, Thermorelay, PLC, Transducer, Soft starter and other components, The panel can install indicator, Pushbutton, Universal switch, Display instrument.

*Used in industrial environment where high protective performance is required.

*Suitable for controlling the temperature maintenance and the power supply of electric heating; Adopting different instruments and program control modules to control the temperature of the heating object so as to meet the requirements of different customers.

*Different installation methods such as hanging and floor-mounted installation and different incoming cables such as ordinary rubber and plastic cable, armored cable and heating cable.
