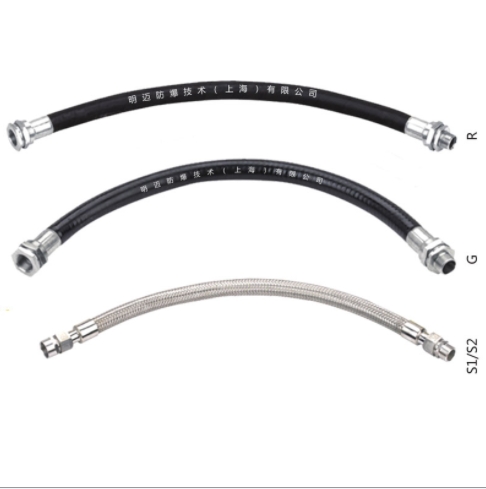

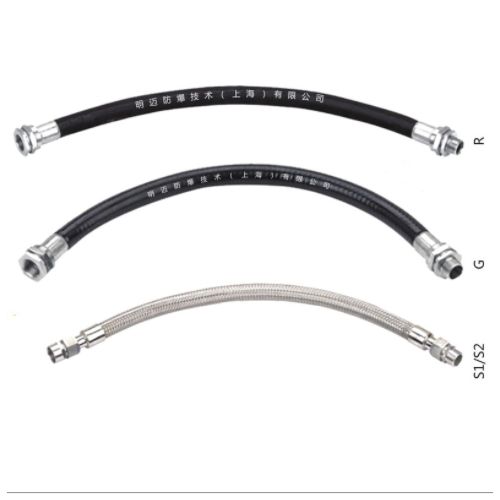

Explosion-proof Flexible Conduit MFC

This is an explosion-proof flexible conduit. Explosion-proof flexible conduit is flame-resistant, corrosion-resistant, water-resistant, aging-resistant and other characteristics of the hose, used in petroleum extraction, storage, chemical, pharmaceutical, textile, etc.

Product Description

* Material: Stainless steel (304/316), Rubber wire braid, PVC

* Thread specifications: M20 ~M115x 1.5,NPT:1/2~4

* Explosion-proof marks: Ex d II C Gb,Ex tD A21 IP66

* Protection level: IP66

* Maximum length: 14m



Explosion Proof Flexible Conduit

This is an explosion-proof flexible conduit. Explosion-proof flexible conduit is flame-resistant, corrosion-resistant, water-resistant, aging-resistant and other characteristics of the hose, used in petroleum extraction, storage, chemical, pharmaceutical, textile, etc. Explosion proof flexible conduit is also called explosion-proof flexible connecting hose, explosion-proof flexible hose, explosion-proof threading hose, etc. Its use as an explosion-proof electrical equipment in and out of the line connection or steel pipe wiring bending difficult place connection.

The structure of the explosion-proof conduit: conduit ends for the metal threaded coupling, the body part is divided into metal hose, the outer layer of laminated high-quality rubber and enhanced nylon hose sheath and laminated steel wire braided mesh hose three forms of composition.



Explosion-proof Flexible Conduit Parameters

Conduit material: 304 stainless steel, 316 stainless steel, Rubber wire braid and PVC.

Thread specifications: M20 ~ M115 x 1.5, NPT: 1/2~4.

Explosion-proof marks: Ex d II C Gb, Ex tD A21 IP66.

Protection level: IP66.

Maximum length: 14m.

Flexible conduct length: 500, 700, 1000 (other length can be customized).

Inner diameter: 15, 20, 25, 32, 40, 50, 70, 80, 100.

Property: Strong corrosion resistance, compression resistance and extended cable life and electromagnetic shielding.



IECEx Explosion Proof Flexible Conduit Application

1. Widely used in different hazardous locations such as oil refinery, chemical , pharmacy, military, shipping vessel and aerospace;

2. Widely used for cable inlet and outlet connection between explosion-proof equipment and connection in locations where steel pipe wiring is difficult in bending.

3. To choose different material flexible conduits according to on-site environment, such as stainless steel 304/316, rubber steel wire braid, PVC sheath conduit.



MAM is an explosion-proof flexible conduit manufacturer in China, which provide high-quality explosion-proof Cable Gland and Bushing.  Our explosion-proof flexible conduit is waterproof, explosion-proof, insulating and tensile. High quality product structure can increase the tensile strength and is not easy to break or deform. In addition, our products also have super soft and bending properties. The smooth structure inside the hose is easy to operate when threading wires and cables. If you want to know more product information, please contact us.



The Benefits of Explosion-proof Flexible Conduit MFC

Our explosion-proof flexible metal conduit is a new generation of explosion-proof flexible metal conduit, which adopts flexible metal conduit and explosion-proof connector, and has good quality, convenient use, long service life, safety and reliability.

It is applicable to explosive gas and dust places as the inlet and outlet protection conduit of explosion-proof motors, electrical equipment, instruments and meters. In addition, the installation is convenient for those difficult to bend steel pipe wiring and piping.
