HIGO CONNECTOR-F.B-Z622 36V

HIGO CONNECTOR-F.B-Z622 36V

Product Description

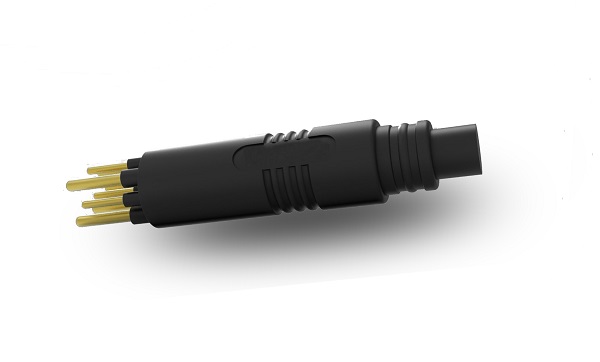

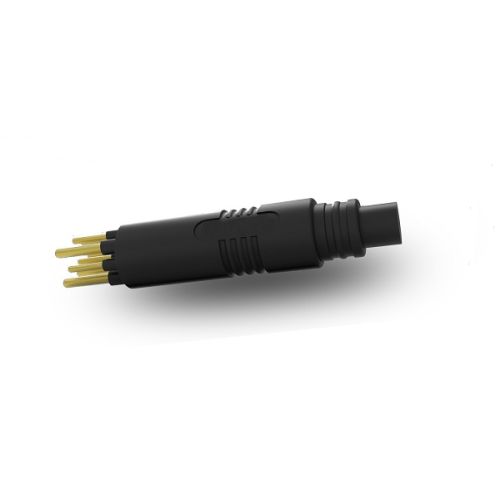

HIGO CONNECTOR-F.B-Z622 36V

Waterproof battery cable

Max Outer Diameter 22mm

Customized solutions

Rated Voltage

36V AC/DC



Rated Current

Power 25A/45A,Signal 5A



Withstanding Voltage

500V



Insulation Resistance

≥20MΩ



Contact Resistance

≤10mΩ



Mating Type

Insertion Force 80N Max, Extraction Force 30N Min



Mating Cycles

3000Times





Operation Temperature

-25℃~+80℃





Protection Degree

IP67





Max Outer Diameter

22mm





Mating Length

66mm





Contact Material

Copper alloy plated with gold which conforms to military standard





Wire Section

0.34mm²+ 4.0mm²/2.0mm²





We are professional high-quality Battery connector manufacturer. We provide you with Variety of connectors,such as High-power Battery connector.
