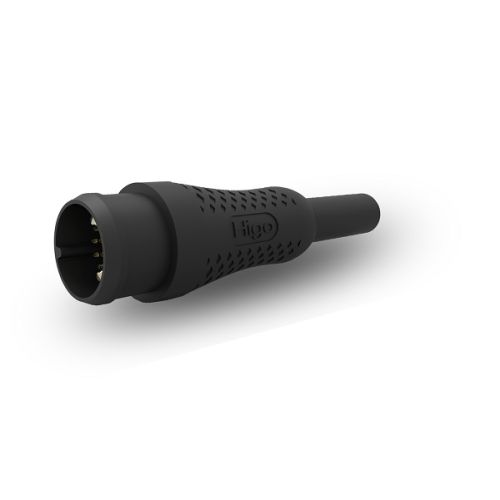

HIGO CONNECTOR-F.M-Z1115

HIGO CONNECTOR-F.M-Z1115

Product Description

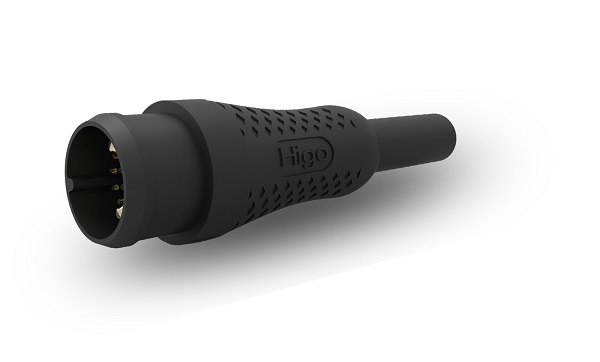

HIGO CONNECTOR-F.M-Z1115

Contact pin range is 9~11

Meet the requirements of gb and non - standard wire

Customized solutions

Rated Voltage

60V AC/DC



Rated Current

2A/25A



Withstanding Voltage

700V



Insulation Resistance

≥20MΩ



Contact Resistance

≤10mΩ



Mechanical Characteristics

Mating Type

Insertion Force 100N Max, Extraction Force 50N Min









Mating Cycles

200Times









Performance

Operation Temperature

-25℃~+80℃









Protection Degree

IP67









Wires Specification

Max Outer Diameter

15mm









Mating Length

70mm









Contact Material

Copper alloy plated with gold which conforms to military standard









Wire Section

0.20mm²+2.50mm²









We are professional high-quality Battery connector manufacturer. We provide you with Variety of connectors,such as High-power Battery connector.
