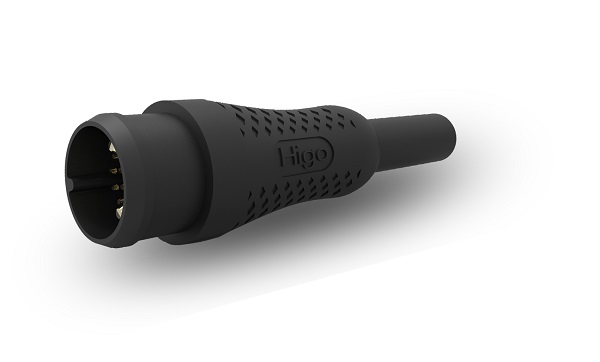

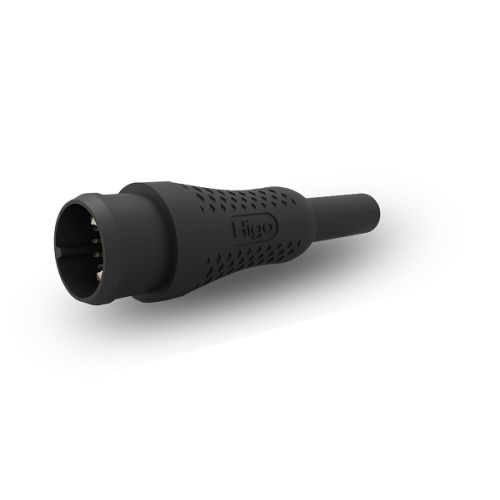

HIGO CONNECTOR-F.M-Z910

HIGO CONNECTOR-F.M-Z910

Product Description

HIGO CONNECTOR-F.M-Z910

Electrical Characteristics

Rated Voltage

60V AC/DC









Rated Current

2A/15A









Withstanding Voltage

700V









Insulation Resistance

≥20MΩ









Contact Resistance

≤10mΩ









Mechanical Characteristics

Mating Type

Insertion Force 80N Max, Extraction Force 30N Min









Mating Cycles

200Times









Performance

Operation Temperature

-25℃~+80℃









Protection Degree

IP67









Wires Specification

Max Outer Diameter

13mm









Mating Length

74mm









Contact Material

Copper alloy plated with gold which conforms to military standard









Wire Section

0.20mm²+1.50mm²









We are professional high-quality Battery connector manufacturer. We provide you with Variety of connectors,such as High-power Battery connector.
