Factory Direct Supply Caramel Making Machine Paste Cooking Mixer Machine Jacketed Kettle

Product Description

Min Order Quantity:1 Set

Supply Ability:50sets per month

Port:Shanghai

Delivery Lead Time:30days

Country/Region:China

City:Jiujiang

Product Attributes

  • - Model Number JYGK-200D
  • - Place of Origin China
  • - Supply Type OEM Service
  • - Condition New
  • - Color stainlesssteel
  • - Processing Mixer
  • - Processing Types Fruit & Vegetable
  • - Related Keywords caramel making machine, paste cooking machine, jacketed kettle

Description by Manufacturer

Product Description

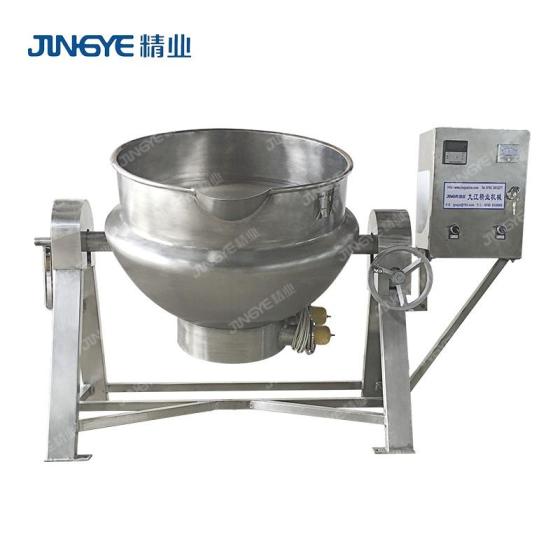

Introduction of the Stainless Steel 300 liter Steam Price Tilting Jacketed Kettle for Jam Cooker /chutney cooking kettle


The Stainless Steel 300 liter Steam Price Tilting Jacketed Kettle for Jam Cooker /chutney cooking kettle also called double-layered steam cauldron which is widely used in sauce making,daily products,cake,candied food,beverage and food processing and so on.The steam jacketed kettle is suitable for mixing, concentrating and decocting the material in pharmaceutical,cosmetic, foodstuff and chemical industry etc.


Relevent Informations



Name
Stainless Steel 300 liter Steam Price Tilting Jacketed Kettle for Jam Cooker /chutney cooking kettle
Brand name
JingYe
Warranty
1Year
Voltage
220V/380V
Volume
200 Liter
Certification
ISO,CE
Material
SS304/316
MOQ
1 set
Heating mode
steam
Port
Ningbo
Structure
titling
Packing
Wooden box
Application
Food ,jam ,beverage
Function
Heating,boiling,mixing

Parameters of the jacketed kettle

Model(volume/Liter)
50
100
200
300
400
500
600
Caliber(mm)
Φ600
700
800
900
1000
1100
1200
Depth of Bowl(mm)
450
500
550
600
650
700
750
Mix Motor Power(kw)
0.75
1.1
1.1
1.5
1.5
2.2
2.2
Heating Area(㎡)
0.45
0.58
1.12
1.42
1.75
2
2.3
Boiling Time(min)
5
8
11
14
18
22
25
Working Pressure and
Temperature

≤0.095Mpa,≤147°C(can be adapted)
Stirring Speed
36r/min (can be adapted )


Overall
Dimension
Length
(mm)
900
1000
1100
1200
1300
1400
1500
Width
(mm)
750
850
950
1050
1150
1250
1350
Height
(mm)
850
900
950
1000
1050
1100
1150
Detailed Images

This device is a series, mainly composed of body, inlet, drainage, tipping pots and other components.



Pot body with stirring device


Top center stirring,The output shaft of the reducer is connected with the agitator shaft by a looper.






High quality Stainless steel

It's made of food grade stainless steel 304/316L.




The leg form


Tiltable pot body: trough - type bracket type.





Cooking pot inner layer of the pot body


It is made of austenitic stainless steel which is resistant to acid and heat.Equipped with pressure gauge and valve.Beautiful appearance, easy installation and easy operation.



Packing & Shipping
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

By Sea

By Air

By Express

Our Company


Jiangxi Jingye Machinery Technology Co., Ltd.

Jiangxi Jingye Machinery Technology CO. LTD Is a high-tech private enterprise integrating R&D, engineering design, equipment manufacturing and engineering installation. It is a good supplier for food, beverage, biology, chemical industry, pharmaceutical equipment .The company has gathered professional talents in the fields of machinery ,engineering,technology and automatic control in China .


Our Service


Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory


After-Sales Service

* Training how to instal the machine, training how to use the machine.

* We provide long-term after-sales service.

FAQ

1. Q: How do I pay for my purchase order?


A: T/T, L/C


2. Q:What's the delivery time?

A: It will take about 15-35 days to finish an order, but the exact time is according to actual situation.

3. Q: Do you have quality control of steam heating jacketed kettle?

A: Yes, we attach great importance to quality control for steam heating jacketed kettle.

4. Q: How about the warranty control?

A: One year warranty for the machinery since sold. If quality problem occurs, please feel free to contact us.

Contact us

Look forward to your inquiry for our machine.


Price

  • Price US$ 2000 / Set

Packaging & Shipping

  • - PackingStandard Wooden Case or customized as the client requested
  • - Packaging Size1300 x 1100 x 1100 ( Millimeters)
  • - Package Weight 150 ( Kilograms )
  • - Delivery Lead Time30days
  • - Minimum Order 1 Set
  • - Supply Ability50sets per month
  • - Total quantity in Stock21 – 50
  • - Delivery PortShanghai
  • - Shipping Career
