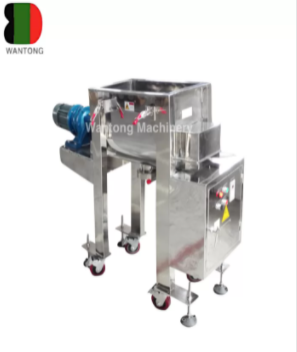

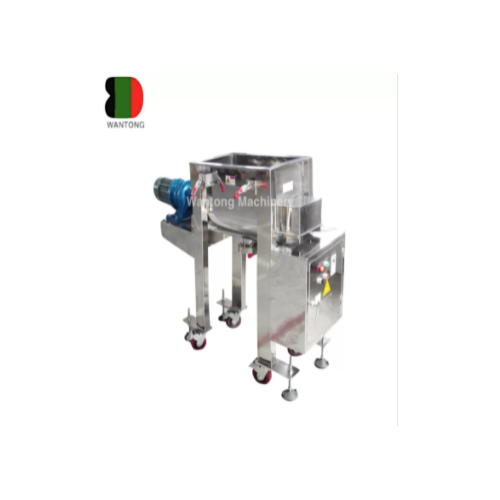

Full Stainless steel Horizontal ribbon spiral conical mixer

The machine is full stainless steel mixer, horizontal ribbon mixer shaft is arranged on the transmission screw blade, the internal spiral material from the discharge port conveying direction, the external spiral material to the discharge port conveying direction. Under the convective motion of the double helix belt, a low power and high efficiency mixing environment is formed.

Product Description

The machine is full stainless steel mixer, horizontal ribbon mixer shaft is arranged on the transmission screw blade, the internal spiral material from the discharge port conveying direction, the external spiral material to the discharge port conveying direction. Under the convective motion of the double helix belt, a low power and high efficiency mixing environment is formed.

Installed on the stirring shaft of the spiral drive inside and outside diameter of the material in the cylinder, the stirrer in the cylinder maximum range of turning materials. When the stirring device works, the inner screw drives the material which is close to the center of the shaft to be rotated in an axial direction, the axial direction is pushed away from the discharge port, and the outer screw drives the material close to the wall of the cylinder to rotate in an axial direction, and is pushed forward to the discharge port. The mixed material can be mixed in a short time.

I. MAIN DESCRIPTIONS:

The machine is full stainless steel mixer, horizontal ribbon mixer shaft is arranged on the transmission screw blade, the internal spiral material from the discharge port conveying direction, the external spiral material to the discharge port conveying direction. Under the convective motion of the double helix belt, a low power and high efficiency mixing environment is formed.



Installed on the stirring shaft of the spiral drive inside and outside diameter of the material in the cylinder, the stirrer in the cylinder maximum range of turning materials. When the stirring device works, the inner screw drives the material which is close to the center of the shaft to be rotated in an axial direction, the axial direction is pushed away from the discharge port, and the outer screw drives the material close to the wall of the cylinder to rotate in an axial direction, and is pushed forward to the discharge port. The mixed material can be mixed in a short time.



WLDH ribbon typer mixing machine can be widely used for blending industrial, pharmaceutical, chemical etc dry or wet powder or liquid material.



II. STRUCTURAL FEATURE:

WLDH spiral ribbon blender powder mixer machine, it is mainly with box, stirring device, support, flip part, transmission part.



This machine is made of stainless steel. The box is made of thick plate, and the sealing parts are arranged at both ends of the stirring shaft to ensure the cleanliness of the material.



In the part of the bracket, the steel is welded with enough steel and all the gears are arranged in the frame. The outer surface of the bracket is made of stainless steel plate, so the utility model has the advantages of compact structure, simple operation, beautiful appearance, small occupation area, convenient cleaning and good mixing effect.



we are real factory here, will give you wholesale price !



III. TECHNICAL PARAMETER:



Model All Volume Load efficiency Power (kw) Overall size(mm) weight (kg)
WLDH-200 200L 0.4-0.8 3 1190x740x770 330
WLDH-300 300L   4 2030x630x980 720
WLDH-500 500L   7.5 2320×730×1130 980
WLDH-1000 1000L   11 2800×920×1320 1700
WLDH-1500 1500L   11 3180×1020×1550 1800
WLDH-2000 2000L   15 3310×1120×1640 2100
WLDH-3000 3000L   18.5 3750×1290×1820 3000
WLDH-4000 4000L   22 4220×1400×1990 3980
WLDH-5000 5000L   22 4220×1500×1990 4620
WLDH-6000 6000L   30 4700×1610×2260 6180
WLDH-8000 8000L   37 4420×2150×2470 8200
WLDH-10000 10000L   45 5520×2960×2720 8920
WLDH-12000 12000L   45 5720×3010×2840 9520
WLDH-15000 15000L   55 5840×3540×2940 9950
