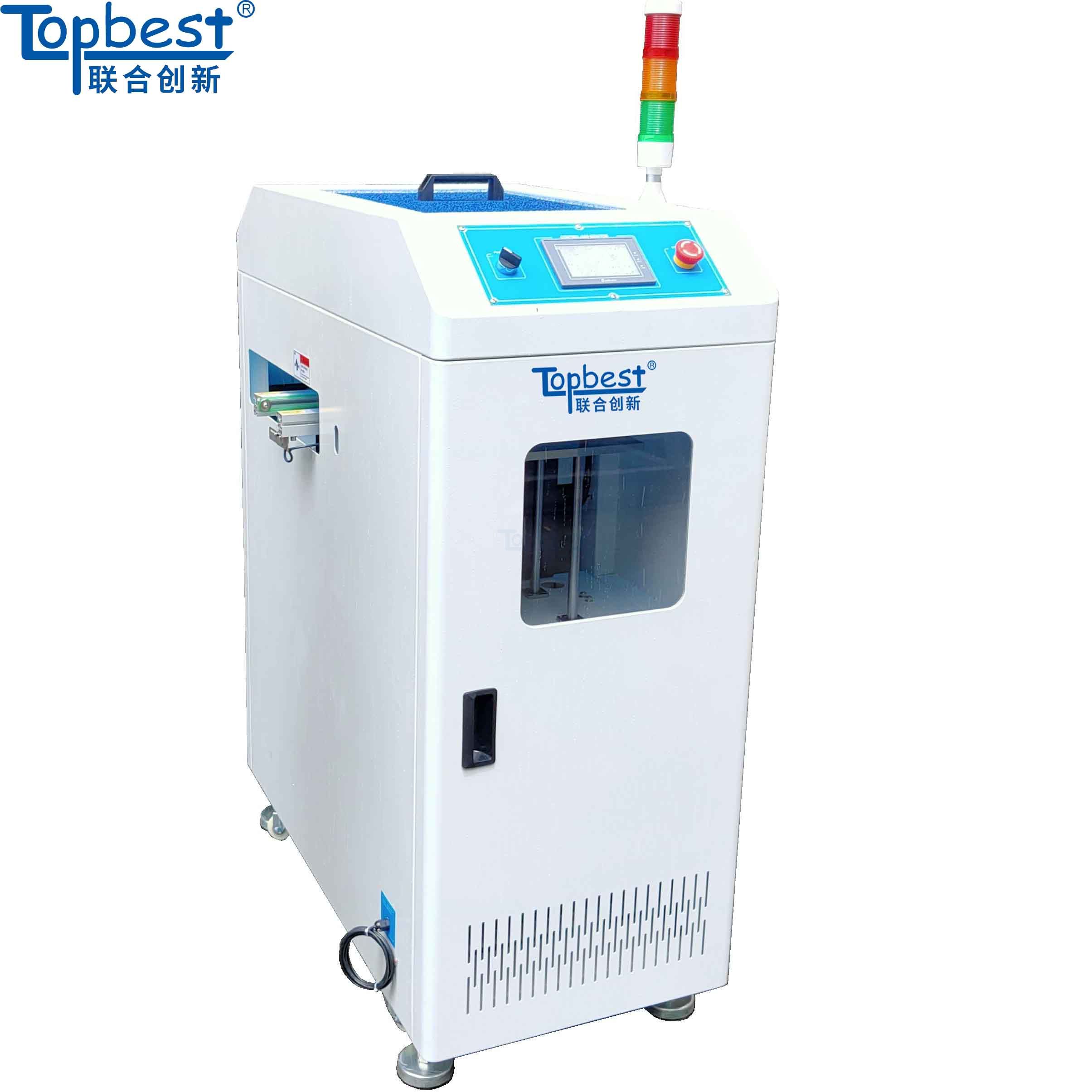

Bare Board Suction SMT PCB Loader Machine

Bare Board Suction SMT PCB Loader Machine

Product Description

SMT PCB Loader Machine Description:

Our SMT PCB Loader Machine, equipped with advanced features to streamline your PCB assembly process. This equipment boasts a Mitsubishi PLC program control system, ensuring precise and reliable performance for your production needs.

The user-friendly interface is designed with a full-color touch screen man-machine interface control panel, allowing for intuitive operation and easy access to various settings and functions. With automatic, manual, and PASS three working modes, this machine offers versatility and flexibility to adapt to different production requirements.

Constructed with utmost durability in mind, our SMT PCB Loader Machine is made from high-quality 2MM steel plate. The CNC bending process, along with laser cutting technology, ensures precise shaping and accurate dimensions. The carbon dioxide shielded welding technique guarantees a strong and firm structure, eliminating the risk of deformation during operation.

Bare Board Suction SMT PCB Loader Machine

Specifications of SMT Loader

Model 810-SL(Loader) / 810-SU(Unloader)
Machine size(mm) L650*W880*H1200
PCB size(mm) Min:L50*W50   Max:L400*W350
Level height 900+/-20
PCB direction Left to right
Cycling time The cycle of a single plate is about 6 seconds
Maximum board capacity 250MM stack height
Thickness of circuit board Min0.6~Max2mm
Type of belt Green round non-slip belt
Direction of transfer From Left to Right or Right to Left(Option)
Power suppy AC220V/50Hz/100W
Ari supply 4~6Kg/cm2



Key Features of Pcb Loader Machine:

Mitsubishi PLC program control for precise and reliable operation.
Full-color touch screen man-machine interface control panel for intuitive operation.
Automatic, manual, and PASS three working modes for increased flexibility.
Standard (SMEMA) online signal compatibility for seamless integration with other equipment.
Constructed with 2MM steel plate for exceptional durability and resistance to deformation.
CNC bending and laser cutting for precise shaping and accurate dimensions.
Carbon dioxide shielded welding for a strong and firm structure.
Beauty, safety protection, and a firm structure for a superior user experience.
