Heavy Weight Drill Pipe
Product Description
Min Order Quantity：1000 Piece
Supply Ability：15 Million Meters
Port：Tianjin
Delivery Lead Time：based on quantity
Country/Region：China
City：Baotou
Product Attributes
- - Place of Origin China
- - Supply Type In-Stock Items
- - Condition New
- - Related Keywords Heavy Weight Drill Pipe
Description by Manufacturer

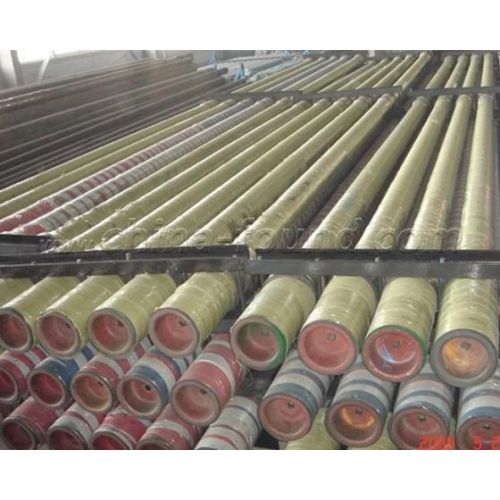

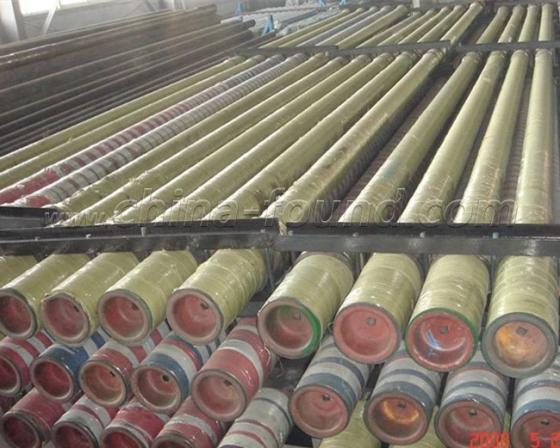

Heavy Weight Drill Pipe
Heavy weight drill pipe is a medium-weight drill tool similar to drill pipe, whose wall is thicker than that of drill pipe and thinner than that of drill collar. Its tube is connected with special length-added drill pipe joint (integral heavy weight drill pipe is made up of tube and tool joint). Among assemblies, it is generally added between drill pipe and drill collar to prevent sudden changes in cross-section of drill string, and reduce its fatigue. Using it to replace part of the drill collar can reduce torque, improve load, and increase drilling ability during deep well drilling; meanwhile pick-up sub and safety clamp will not be used drilling operation ,which is easy to operate and can save tripping time. It can drill in in high speed under low torque in directional wells and reduces the abrasion and fracture of string without differential pressure and sticking because of the lower steel grade than drill collar, small touching area with the well wall.
square Kelly China : Found Petroleum Equipment
If you are finding high quality and cheap API 7-1 Heavy Weight Drill Pip , you can choose us! We adhere to the principle of good faith cooperation and look forward to working with you as a partner!
CHEMICAL COMPOSITION
| Integral heavy weight drill pipe | ||||||||
| Size | Outer diameter | Inside diameter | Joint outer diameter | Joint inside diameter | Connecting thread | Slip max. diameter | Upset middle diameter | Min. drift diameter |
| 3 1/2 | 3 1/2 | 2 1/4 | 4 3/4 | 2 1/4 | NC38 | 3 7/8 | 4 | 2 |
| 2 1/16 | (4 7/8, 5) | 2 1/16 | 1 13/16 | |||||
| 4 | 4 | 2 1/2 | 5 1/4 | 2 1/2 | NC40 | 4 3/16 | 4 1/2 | 2 1/4 |
| 2 9/16 | 2 9/16 | 2 5/16 | ||||||
| 4 1/2 | 4 1/2 | 2 11/16 | 6 1/4 | 2 11/16 | NC46 | 4 11/16 | 5 | 2 7/16 |
| 2 3/4 | 2 3/4 | 2 1/2 | ||||||
| 2 13/16 | 2 13/16 | 2 9/16 |
Price
- Price US$ 1 / Piece
Packaging & Shipping
- - PackingChargeandfreepackaging
- - Delivery Lead Timebased on quantity
- - Minimum Order 1000 Piece
- - Supply Ability15 Million Meters
- - Delivery PortTianjin
