321 Wedge Profile Wire

Trapezoidal Wedge Profile Wire of 321 grade is mainly used for oil and gas industry filter applications.

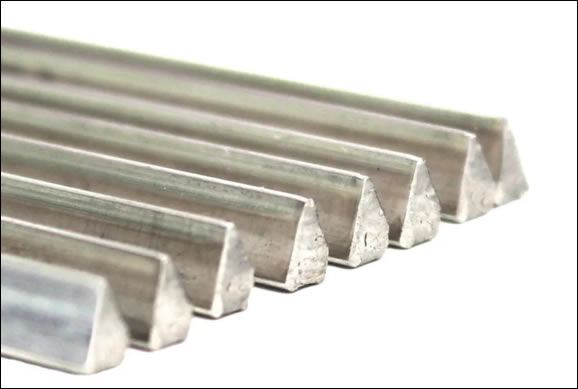

Trapezoidal Wedge Profile Wire
Screen material grade 321 (AISI), W.1.4541 (DIN) x 6 CrNiTi 18 10
Hardness after extruding: 45-50 HRC
Dimension:2.54+/-0.015 mm,1.32+/-0.015 mm, height ~2.39mm C
Radius: 0,2 mm maximum on the top, 0,5 mm on the bottom
Packaging: Bright green reel 300kg
Profile wire for wire-wrapped screen for oil and gas

Benefits:
321 stainless steel wedge profile wire offers excellent high temperature stress fracture performance and high temperature creep resistance stress mechanical properties superior to wedge wire of 304 stainless steel.
321 stainless steel wire has good corrosion resistance in the atmosphere and is widely used in petrochemical, electric power and automobile industries.
