AB Glue Dispensing Machine TBS-TC-441

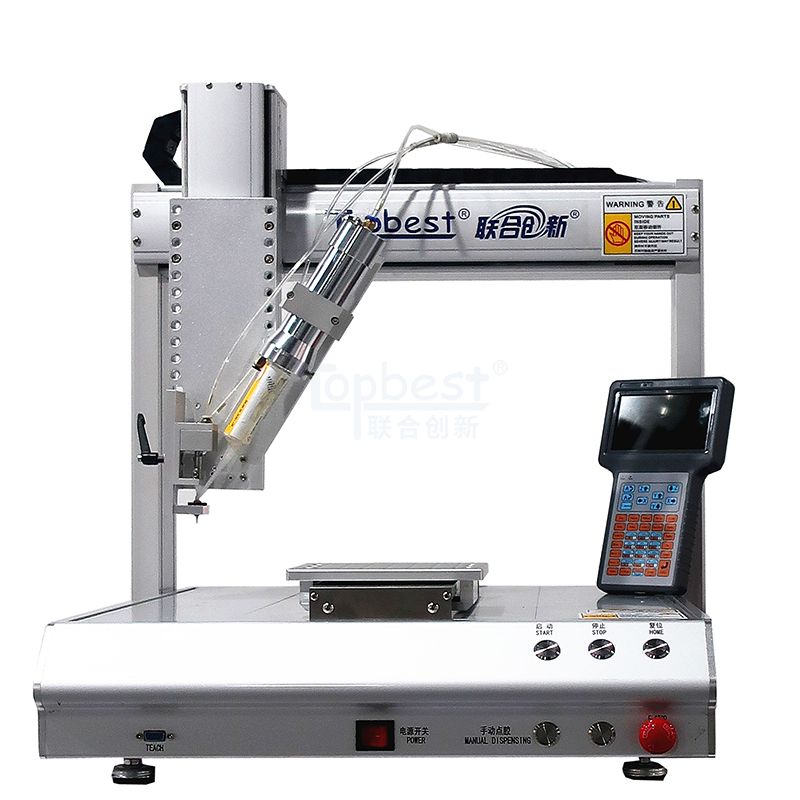

AB Glue Dispensing Machine

Product Description

Topbest AB glue dispensing machines can automatically mix different ratios of AB glue. These glue dispensing machines are typically equipped with programmable controllers that can automatically adjust the flow rates of the A and B components based on specific mixing ratios and flow requirements, and mix them in the mixing chamber. This ensures that each application receives a consistent and accurate mixing ratio.

AB Glue Dispensing Machine Specification

MODEL

TBS-TC-441

TBS-TC-631

TBS-TC-6331

TBS-TC-6331CM

Dimension(L×W×H mm)

750X650X750

880×650×750

880X650X750

900×650×1000

Weight(kg)

60

75

75

140

Dispensing range X/Y/Z(mm)

380/380/80

580/280/80

580/280/280/80

580/280/280/80

Max.jig size

380x380x70

380x380x70

290x280x70

290x280x70

Max.load X&Y-/Z(kg)

10kg/5kg

10kg/5kg

10kg/5kg

10kg/5kg

Movement speed X&Y/Z(mm/s)

X,Y 600-800MM/S,Z 400MM/S

X,Y 600-800MM/S,Z 400MM/S

X,Y 600-800MM/S,Z 400MM/S

X,Y 600-800MM/S,Z 400MM/S

Decomposing ability

0.01mm/s

0.01mm/s

0.01mm/s

0.01mm/s

Programming method

Teach pendant/Microcomputer

Teach pendant/Microcomputer

Teach pendant/Microcomputer

Teach pendant/Microcomputer

Repeated accuracy

+/-0.02MM

+/-0.02MM

+/-0.02MM

+/-0.02MM

Power supply

AC220V,50HZ

AC220V,50HZ

AC220V,50HZ

AC220V,50HZ

Air pressure

0.4 to 0.8 Mpa

0.4 to 0.8 Mpa

0.4 to 0.8 Mpa

0.4 to 0.8 Mpa

Memory

1000 files

1000 files

1000 files

1000 files

Display

Teach pendant LCD

Teach pendant LCD

Teach pendant LCD

Teach pendant LCD

Motor

Japanese stepping motor

Japanese stepping motor

Japanese stepping motor

Japanese stepping motor

Working mode

Dot/Line/Arc/Circle

Dot/Line/Arc/Circle

Dot/Line/Arc/Circle

Dot/Line/Arc/Circle

Driving mode

Synchronous belt+dual guide rails

Synchronous belt+dual guide rails

Synchronous belt+dual guide rails

Synchronous belt+dual guide rails

Dispensing cartridge

AB cartridge 1:1/1:2/1:5/1:10

AB cartridge 1:1/1:2/1:5/1:10

AB cartridge 1:1/1:2/1:5/1:10

AB cartridge 1:1/1:2/1:5/1:10

Safety operation

Start button

Start button

Start button

Enclosure with light curtains

Dispensing monitor

No

No

No

Real time dispensing monitor

Working environment

-5~40℃,humidity 20%~95%

-5~40℃,humidity 20%~95%

-5~40℃,humidity 20%~95%

-5~40℃,humidity 20%~95%



Features:

1. Easy integration into any manufacturing operation

2. AB glue with different ratio can be mixed automaticly

3. Different ratio of AB glue dispensing container is available

4. The dispensing speed and amount of dispensing glue can be set separately
