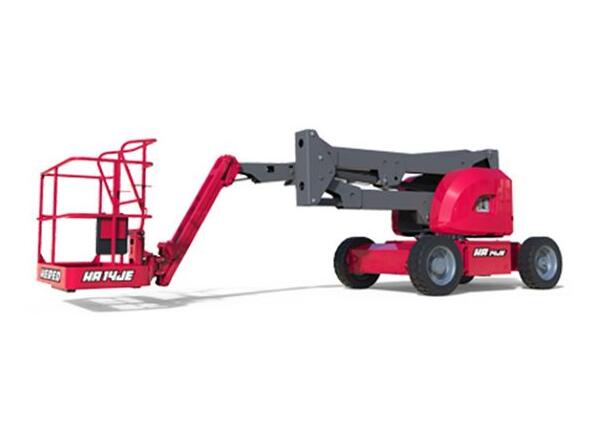

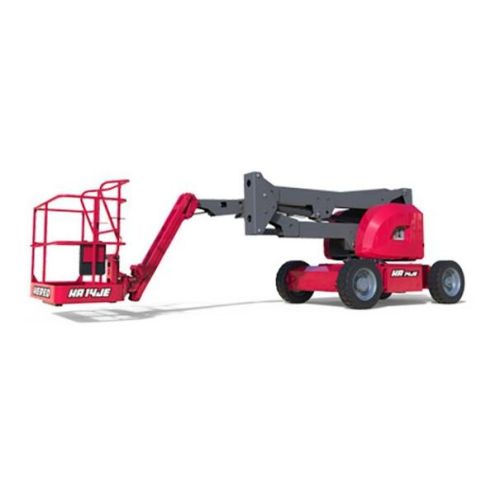

Electric Articulating Boom Lift HA14JE

Electric Articulating Boom Lift HA14JE

Product Description

Electric Articulating Boom Lift PRODUCT HIGHLIGHTS

l  High-precision load sensing system, less accidental false alarms and shutdowns

l  Large load, strong power, easy maintenance, high chassis, great energy saving, stable control, easy transport

l  Integrated rotary reducer makes smooth turning and adapt turning and adapt to dust environment

l  Four-wheel drive, floating axle design, better off-road performance

l  Unique design makes the whole part move down, so center of gravity is shifted down, making the machine more stable

     l Suitable for dust environment, zero emission, stable operation and energy saving

Model

HA14JE

Measurements

Max. Working Height

15.7m

Platform Height

13.7m

Horizontal Reach

7.24m

Max. Up and Over

7.7m

A-Length (Stowed)

6.42m

B-Width (Stowed)

1.75m

C-Heights (Stowed)

2.01m

D-Platform Length

1.52m

E-Platform Width

0.76m

F-Wheel Base

2.01m

G-Ground Clearance

0.2m

Productivity

Platform Capacity

230kg

Drive Speed (Stowed)

5.2km/h

Gradeability (Stowed)

30%

Turning Radius (In.)

0.8m

Turning Radius (Out.)

3.8m

Turntable Rotation

355°

Platform Rotation

±90°

H-Turntable Tail Swing

0

Tilt Sensor Activation Max.

Operating Wind Speed

12.5m/s

Power

Batteries (V/Ah)

8×6V/370Ah

Charger

100-240V AC/35A

Weight

Weight

6750kg

Hydraulic Tank Capacity

20L
