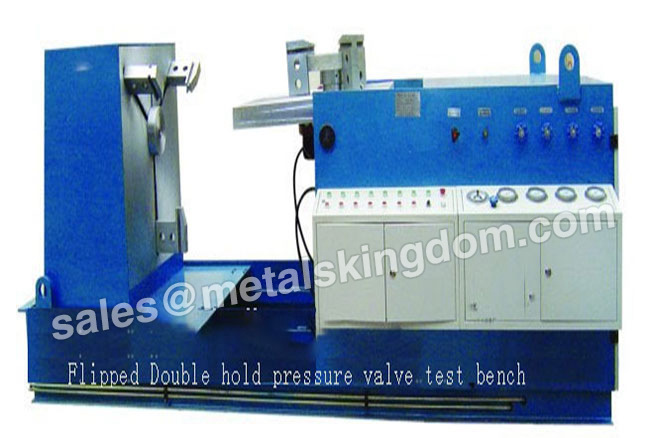

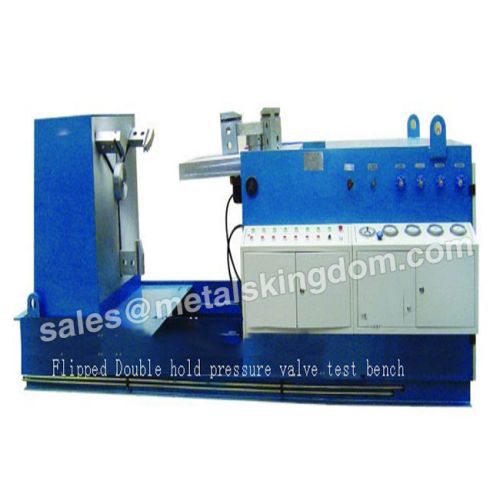

Flipped Double Holding Pressure Type Valve Test Bench
Product Description
Flipped Double Holding Pressure Type Valve Test Bench Application scope
1) Suitable for gate valves, globe valves, ball valves, control valves, check valves and other straight- flange connection valve seal and valve body strength performance test and the activated pressure setting of relief valve, et
2) Clamping pressure valve type is hold, hold press claws clamping flange, no external influence on the test
3) Valve Test medium could be water, gas,or oil, by customer choice
4) Test bed side table can be moved to adjust the length of the valve position when the pressure test is going on .
5) One end of the table can be flipped 90 °to the valve test ,suitable for the safety valve testing.
Model specifications
Model |
SYTF150/10-32 | SYTF350/5-32 | SYTF600/6-20 |
Valve ND (nn) |
20-150 | 50-350 | 300-600 |
Test pressure (Mpa) |
32-1.6 | 32-1.6 | 20-1.6 |
Voltage (V) |
380 | 380 | 380 |
