Injection molding machine is the main molding equipment for making thermoplastic or thermosetting plastics into plastic products of various shapes using plastic molding molds. The injection molding machine heats the plastic and applies high pressure to the molten plastic to make it eject and fill the mold cavity.
Product Description
Injection molding machine is the main molding equipment for making thermoplastic or thermosetting plastics into plastic products of various shapes using plastic molding molds. The injection molding machine heats the plastic and applies high pressure to the molten plastic to make it eject and fill the mold cavity.
We care more about customer success, user success and value achievement. Choose our golf ball making machine, we will provide you with the most comprehensive service! If you want to know more about DK Series Plastic Injection Molding Machine, please feel free to contact us.
·Clamping force : 40Ton-550Ton
·Injection weight : 151-2153g

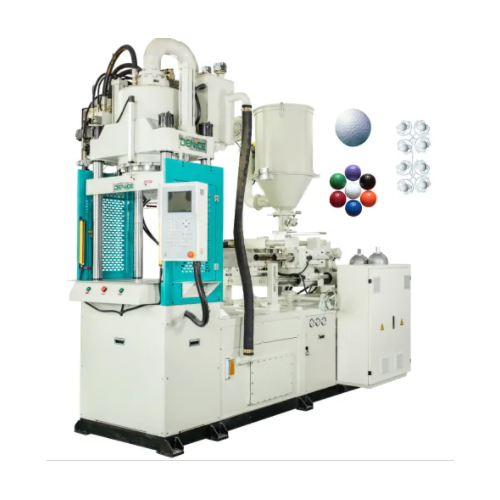

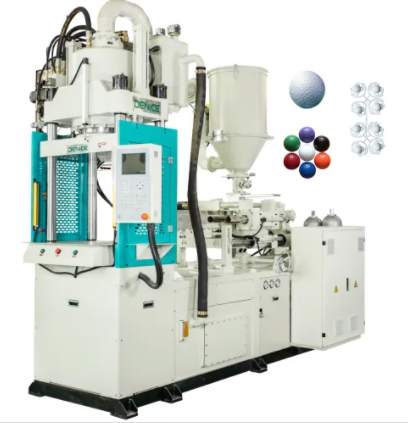

·Vertical clamping and horizontal injection design
·DK Angle type series,able to contain large-scale mold with longer opening stroke and large injection weight.Applicable to large-scale products with insert molding process.
1. Golf ball making machine is produced by advanced technology, with stable performance and long service life.
2. Quick mold closing, slow and low pressure mold locking action devices can ensure the safe use of the mold and prolong the service life of the mold.
3. Quick mold opening can effectively improve the production efficiency of your company.
4. Golf ball making machin is equipped with electrical protective devices to ensure that there is no non-standard action, the maintenance equipment is intact, and the safety of operators is ensured.
5. Technical support: In terms of golf ball development process technology, the ejection system is equipped with the characteristics of high ejection rate and high accuracy.
As a professional golf ball making machine supplier, Hangzhou DENICE Machinery Co., Ltd. is the one of professional vertical injection moulding machine manufacturers in China. We mainly provide Vertical Injection Molding Machine to our customers. We hope to conduct more comprehensive business with customers from different countries in the future. We can help you succeed with competitive pricing and high-quality products.
Our products are very popular, if you are interested in our products, please contact us as soon as possible.
Specification | |||||
Model | Unit | DK-1600 | |||
( Injection Unit ) | Screw diameter | mm | Ф45 | Ф50 | Ф55 |
Maximum injection pressure | Kg/cm2 | 2291 | 1856 | 1534 | |
Theoretical shot volume | cm3 | 381 | 471 | 570 | |
Maximum shot weight | g/Oz | 340(11.9) | 420(14.8) | 509(17.9) | |
Injection rate | cm3/sec | 127 | 157 | 190 | |
(Clamping Unit) | Clamping force | ton | 160 | ||
tie bar distance | mm | 460× 600 | |||
Minimum mold thickness | mm | 250(Can be customized according to customer requirements) | |||
Opening stroke | mm | 350 | |||
Open daylight | mm | 600(As required) | |||
Nozzle Center Height | mm | 175±20 | |||
Nozzle Center Distance | mm | 125 | |||
Ejector force | T | 4.0 | |||
Ejector stroke | mm | 75 | |||
(Others) | Pump motor power | Kw | 18.5 | ||
Hydraulic system pressure | Kg/cm2 | 140 | |||
Barrel heating power | Kw | 10.7 | |||
Total wattage | Kw | 29.2 | |||
Oiltank capacity | L | 500 | |||
Machine weight (approx.) | T | 8.2 | |||
Machine dimensions(approx.) | m | 3.6×1.5× 3.0 |
Specification | |||||
Model | Unit | DK-2100 | |||
( Injection Unit ) | Screw diameter | mm | Ф50 | Ф55 | Ф60 |
Maximum injection pressure | Kg/cm2 | 2288 | 1891 | 1589 | |
Theoretical shot volume | cm3 | 491 | 594 | 707 | |
Maximum shot weight | g/Oz | 490(16) | 593(19.4) | 706(23) | |
Injection rate | cm3/sec | 127 | 154 | 183 | |
(Clamping Unit) | Clamping force | ton | 210 | ||
tie bar distance | mm | 560× 700 | |||
Minimum mold thickness | mm | 300(Can be customized according to customer requirements) | |||
Opening stroke | mm | 400 | |||
Open daylight | mm | 700(As required) | |||
Nozzle Center Height | mm | 175±20 | |||
Nozzle Center Distance | mm | 150 | |||
Ejector force | T | 6.2 | |||
Ejector stroke | mm | 120 | |||
(Others) | Pump motor power | Kw | 22 | ||
Hydraulic system pressure | Kg/cm2 | 140 | |||
Barrel heating power | Kw | 12 | |||
Total wattage | Kw | 34 | |||
Oiltank capacity | L | 550 | |||
Machine weight (approx.) | T | 14.2 | |||
Machine dimensions(approx.) | m | 3.8×1.5× 3.3 |
pecification | |||||
Model | Unit | DK-2500 | |||
( Injection Unit ) | Screw diameter | mm | Ф50 | Ф55 | Ф60 |
Maximum injection pressure | Kg/cm2 | 2288 | 1891 | 1589 | |
Theoretical shot volume | cm3 | 491 | 594 | 707 | |
Maximum shot weight | g/Oz | 490(16) | 593(19.4) | 706(23) | |
Injection rate | cm3/sec | 127 | 154 | 183 | |
(Clamping Unit) | Clamping force | ton | 250 | ||
tie bar distance | mm | 600× 735 | |||
Minimum mold thickness | mm | 300(Can be customized according to customer requirements) | |||
Opening stroke | mm | 450 | |||
Open daylight | mm | 750(As required) | |||
Nozzle Center Height | mm | 175±20 | |||
Nozzle Center Distance | mm | 150 | |||
Ejector force | T | 6.2 | |||
Ejector stroke | mm | 120 | |||
(Others) | Pump motor power | Kw | 30 | ||
Hydraulic system pressure | Kg/cm2 | 140 | |||
Barrel heating power | Kw | 12 | |||
Total wattage | Kw | 42 | |||
Oiltank capacity | L | 600 | |||
Machine weight (approx.) | T | 18.5 | |||
Machine dimensions(approx.) | m | 4.3×1.6× 3.6 |
Specification | |||||
Model | Unit | DK-3000 | |||
( Injection Unit ) | Screw diameter | mm | Ф55 | Ф60 | Ф65 |
Maximum injection pressure | Kg/cm2 | 2036 | 1711 | 1458 | |
Theoretical shot volume | cm3 | 618 | 735 | 863 | |
Maximum shot weight | g/Oz | 571(20.1) | 679(24) | 797(28.1) | |
Injection rate | cm3/sec | 207 | 246 | 289 | |
(Clamping Unit) | Clamping force | ton | 300 | ||
tie bar distance | mm | 620× 780 | |||
Minimum mold thickness | mm | 300(Can be customized according to customer requirements) | |||
Opening stroke | mm | 450 | |||
Open daylight | mm | 750(As required) | |||
Nozzle Center Height | mm | 175±20 | |||
Nozzle Center Distance | mm | 150 | |||
Ejector force | T | 6.2 | |||
Ejector stroke | mm | 120 | |||
(Others) | Pump motor power | Kw | 30 | ||
Hydraulic system pressure | Kg/cm2 | 140 | |||
Barrel heating power | Kw | 17.5 | |||
Total wattage | Kw | 47.5 | |||
Oiltank capacity | L | 700 | |||
Machine weight (approx.) | T | 19.7 | |||
Machine dimensions(approx.) | m | 4.5×1.7× 3.7 |
Specification | |||||
Model | Unit | DK-3500 | |||
( Injection Unit ) | Screw diameter | mm | Ф60 | Ф65 | Ф70 |
Maximum injection pressure | Kg/cm2 | 1866 | 1590 | 1370 | |
Theoretical shot volume | cm3 | 791 | 928 | 1077 | |
Maximum shot weight | g/Oz | 705(24.8) | 829(29.2) | 961(33.8) | |
Injection rate | cm3/sec | 158 | 186 | 215 | |
(Clamping Unit) | Clamping force | ton | 350 | ||
tie bar distance | mm | 650×830 | |||
Minimum mold thickness | mm | 300(Can be customized according to customer requirements) | |||
Opening stroke | mm | 450 | |||
Open daylight | mm | 750(As required) | |||
Nozzle Center Height | mm | 200±20 | |||
Nozzle Center Distance | mm | 150 | |||
Ejector force | T | 6.2 | |||
Ejector stroke | mm | 120 | |||
(Others) | Pump motor power | Kw | 37 | ||
Hydraulic system pressure | Kg/cm2 | 140 | |||
Barrel heating power | Kw | 19.8 | |||
Total wattage | Kw | 56.8 | |||
Oiltank capacity | L | 800 | |||
Machine weight (approx.) | T | 23.5 | |||
Machine dimensions(approx.) | m | 4.6×1.8× 3.8 |
Specification | |||||
Model | Unit | DK-4500 | |||
( Injection Unit ) | Screw diameter | mm | Ф65 | Ф70 | Ф75 |
Maximum injection pressure | Kg/cm2 | 1968 | 1697 | 1478 | |
Theoretical shot volume | cm3 | 1062 | 1232 | 1414 | |
Maximum shot weight | g/Oz | 948(33.4) | 1099(38.8) | 1262(44.5) | |
Injection rate | cm3/sec | 289 | 335 | 385 | |
(Clamping Unit) | Clamping force | ton | 450 | ||
tie bar distance | mm | 680×900 | |||
Minimum mold thickness | mm | 350(Can be customized according to customer requirements) | |||
Opening stroke | mm | 600 | |||
Open daylight | mm | 950(As required) | |||
Nozzle Center Height | mm | 200±20 | |||
Nozzle Center Distance | mm | 200 | |||
Ejector force | T | 7 | |||
Ejector stroke | mm | 150 | |||
(Others) | Pump motor power | Kw | 41 | ||
Hydraulic system pressure | Kg/cm2 | 140 | |||
Barrel heating power | Kw | 19.8 | |||
Total wattage | Kw | 60.8 | |||
Oiltank capacity | L | 900 | |||
Machine weight (approx.) | T | 32 | |||
Machine dimensions(approx.) | m | 4.6×1.8× 4.2 |
Specification | |||||
Model | Unit | DK-5500 | |||
( Injection Unit ) | Screw diameter | mm | Ф70 | Ф75 | Ф80 |
Maximum injection pressure | Kg/cm2 | 2057 | 1792 | 1575 | |
Theoretical shot volume | cm3 | 1847 | 2121 | 2413 | |
Maximum shot weight | g/Oz | 1648(58) | 1893(66.8) | 2153(76) | |
Injection rate | cm3/sec | 323 | 371 | 422 | |
(Clamping Unit) | Clamping force | ton | 550 | ||
tie bar distance | mm | 750×1000 | |||
Minimum mold thickness | mm | 450(Can be customized according to customer requirements) | |||
Opening stroke | mm | 600 | |||
Open daylight | mm | 950(As required) | |||
Nozzle Center Height | mm | 200±20 | |||
Nozzle Center Distance | mm | 200 | |||
Ejector force | T | 7 | |||
Ejector stroke | mm | 150 | |||
(Others) | Pump motor power | Kw | 48 | ||
Hydraulic system pressure | Kg/cm2 | 140 | |||
Barrel heating power | Kw | 22 | |||
Total wattage | Kw | 70 | |||
Oiltank capacity | L | 1000 | |||
Machine weight (approx.) | T | 32 | |||
Machine dimensions(approx.) | m | 5.3×2.0× 4.4 |
Why Do You Need a Golf Ball Making Machine?
The Golf Ball Making Machine has several advantages for manufacturers in the golf industry. Here are some of the benefits of using a vertical injection moulding machine for making golf balls:
High Precision: The Golf Ball Making Machine is designed with advanced technology and features such as high-precision linear guide rails, digital control systems, and automatic lubrication systems, which ensure the accuracy and consistency of the final product. This is critical for producing golf balls with precise dimensions and weights, which are crucial for consistent performance on the course.
User-Friendly: The vertical golf ball injection moulding making machines are designed to be user-friendly, with easy-to-use controls and a user-friendly interface. This allows operators to quickly learn how to use the machine and reduces the risk of errors or accidents during production.
Versatile: The vertical injection moulding machine for making golf ball is available in different series, including standard series machine, single slide plate series, double slide plate series, and rotary table series injection molding machine. This provides manufacturers with the flexibility to choose the machine that best suits their specific production requirements and budget.
Cost-Effective: The making machine for golf balls manufacturing is a cost-effective solution for producing high-quality golf balls. By using a vertical injection moulding machine, manufacturers can reduce labor costs, as the machine can perform many of the tasks that would otherwise require manual labor. Additionally, the machine can operate continuously, which reduces downtime and improves overall efficiency.
Overall, the Golf Ball Making Machine offers several advantages for golf ball manufacturers, including high precision, efficient production, user-friendliness, versatility, and cost-effectiveness. By investing in this technology, manufacturers can enhance their production capabilities and deliver high-quality golf balls to their customers.
We look forward to working with you!
A Golf Ball Making Machine is a specialized vertical injection moulding machine designed for the manufacturing of golf balls. As a professional manufacturer of vertical injection moulding machines, Hangzhou DENICE Machinery Co., Ltd. offers a range of high quality and high precision machines that are capable of producing golf balls with varying levels of clamping force and injection volume.
Our vertical golf ball injection moulding making machines are equipped with advanced technology and features such as a digital control system, automatic lubrication system, and high-precision linear guide rails to ensure the accuracy and consistency of the final product.
The making machine for golf balls manufacturing is designed to operate with a high degree of efficiency and productivity, enabling manufacturers to produce a large number of golf balls in a short amount of time. Additionally, our machines are designed to be user-friendly, with easy-to-use controls and a user-friendly interface.
Overall, our making machine for golf balls manufacturing is the ideal solution for manufacturers looking to produce high-quality golf balls with precision and efficiency. With our expertise in vertical injection moulding machines and commitment to customer satisfaction, DENICE Machinery is the perfect partner for golf ball manufacturers seeking to enhance their production capabilities. If you want to know more about Golf Ball Making Machine, please feel free to contact us.
