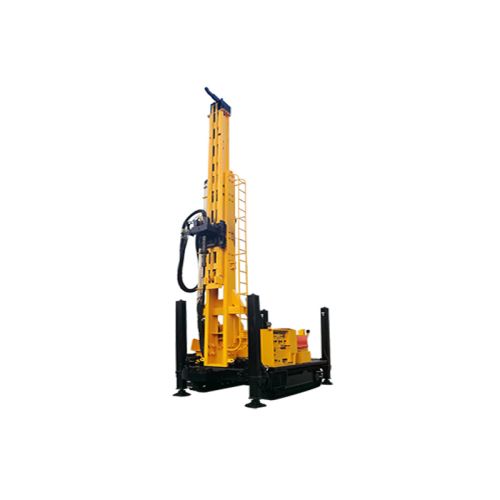

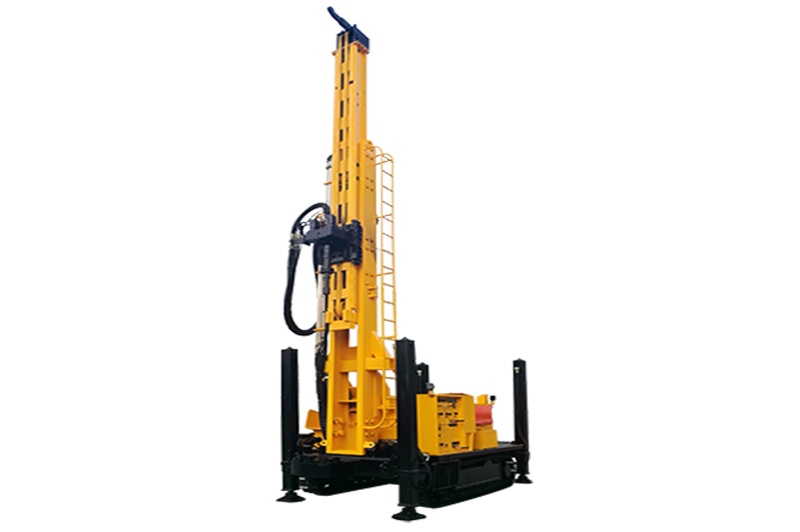

JKS400SH Crawler Mounted Telescoping Mast Well Drilling Rig

JKS400SH Crawler Mounted Telescoping Mast Well Drilling Rig

Product Description

JKS400SHis a new, efficient, multifunctional hydraulic crawler mounted telescoping mast well drilling rig, mainly applicable to the drilling process of water well, monitoring boreholes and geothermal boreholes. When drilling in the rock layer, the rig adopts DTH percussive hammer for penetration and compressed air for cleaning, the penetration speed being dozens of times quicker than conventional rotation rigs.



The rig is able to handle casing size up to 6 meters.

In loose rock, the rig employs a cutting bit or cone bit and uses mud to bring out the cuttings, its versatility suiting for all kinds of complex geological conditions

Hydraulic supporters used facilitate the rig erection on site without crane.



Rated Drilling Depth 400m
Borehole Diameter 140~350mm
Engine Power 92kW
Max. Lifting Force 20t
Axial Pressure ±8.5t
Lifting Force of Small Winch 1.5t
Rotation Torque 9500N.m
Rotation Rate 0~40/80rpm
Feeding Stroke 4000mm+3000mm
Hydraulic Supporting Leg Stroke 1650mm
Lifting Speed 0~18m/min
Centralizer Height 0.8m
Grade Ability 15°
Dimension (L x W x H) 6800 x 2250 x 2700mm
Weight 12.5t
Hydraulic Generator (optional) 24kW/380V
