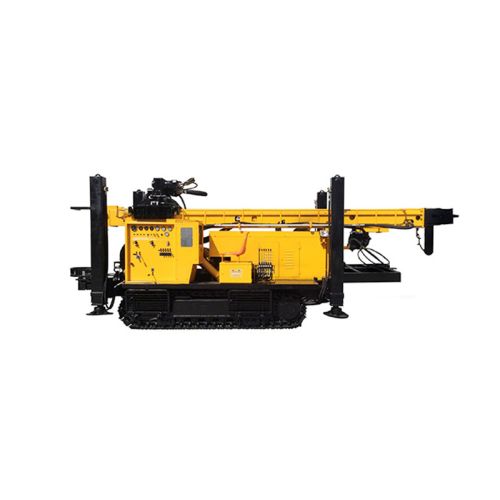

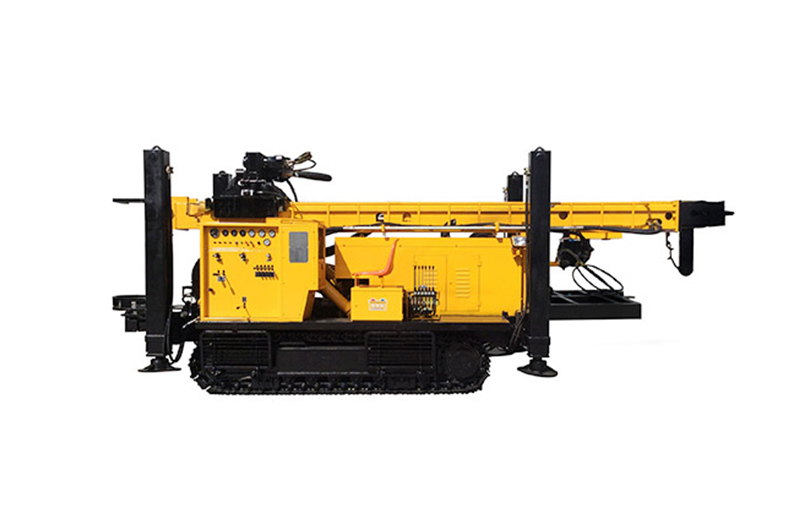

JKS500C Crawler Mounted Versatile Well Drilling Rig

Crawler Mounted Versatile Well Drilling Rig

Product Description

JKS500C crawler mounted versatile well drilling rig is a new, efficient and multifunctional drill rig, mainly applicable to all kinds of drilling process of wells, monitor boreholes, geothermal boreholes, grouting holes of cofferdam, dam and reinforced base, as well as long hole drilling of open pit, anchor reinforcement and defense project.

The rig equips with powerful hydraulic motor, heavy-duty hydraulic drilling arm and high pressure DTH percussive hammer, and its drilling speed is faster than other type of rigs.



Rated Drilling Depth 500m
Drilling Diameter 105-350mm
Working Air Pressure 1.05-4.5MPa
Air Consumption 16-60m³/min
Drill Pipe Diameter φ89mm, φ102mm, φ114mm
Max. Lifting Force 25t
Axial Pressure ±10t
Lifting Force of Small Winch 1.5t
Lifting Force of Main Winch 4t (optional)
Rotation Torque 9500N.m
Rotation Rate 0-40/80rpm
Feeding Force 3800mm
Lifting Rate 0-18m/min
Grade Ability 15°
Hydraulic Generator 24kW/380V (optional)
Foam Pump 20L/min (optional)
Transport Dimension (L x W x H) 6800mm x 2250mm x 2650mm
Working Dimension (L x W x H) 6800mm x 3250mm x 7500mm
Weight 13t
