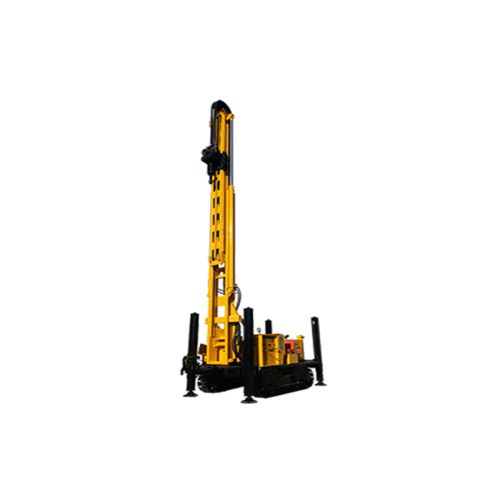

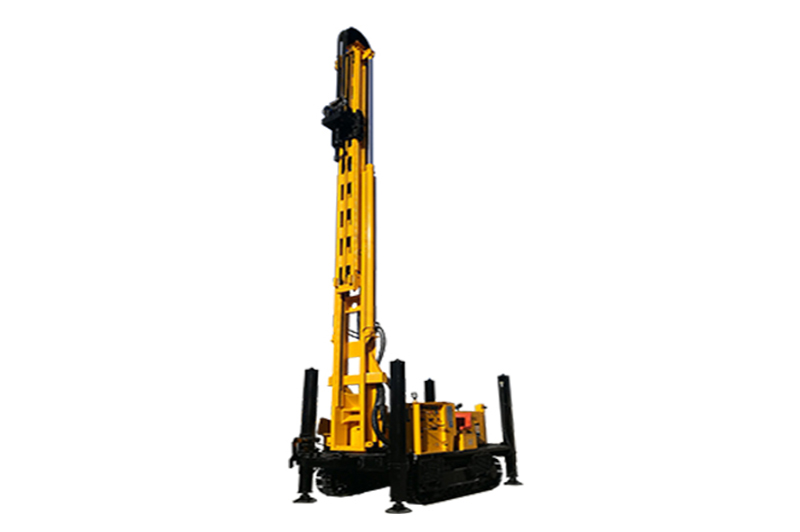

JKS600SH Crawler Mounted Telescoping Mast Well Drilling Rig

Crawler Mounted Telescoping Mast Well Drilling Rig

Product Description

JKS600SHis a new, efficienct, multifunctional hydraulic crawler mounted telescoping mast well drilling rig , mainly applicable to the drilling process of water well, monitoring boreholes, geothermal boreholes, constructions like dam, reinforced base and defense project.



The rig is able to handle casing pipe size up to 6 meters

When drilling in the rock layer, the rig adopts DTH hammer for penetration and compressed air for cleaning, with high penetration speed.

In loose rock, the rig employs hammer and casing as well as mud drilling.

Hydraulic supporters facilitate the drilling rig erection on site without crane.



Rated Drilling Depth 600m
Borehole Diameter 140~350mm
Engine Power 132kW
Max Lifting Force 32t
Axial Pressure ±10t
Lifting Force of Small Winch 1.5t
Rotation Torque 11000N.m
Rotation Rate 0~40/80rpm
Feeding Stroke 7000mm
Hydraulic Supporting Leg Stroke 1650mm
Lifting Rate 0~15m/min
Grade Ability 15°
Transport Dimension (L x W x H) 6800mm x 2250mm x 2750mm
Working Dimension (L x W x H) 6800mm x 3250mm x 12900mm
Weight 13.7t
Hydraulic Generator (optional) 24kW/380V
Centrifugal Mud Pump (optional) 1500L/min
Plunger Mud Pump (optional) 1000L/min
